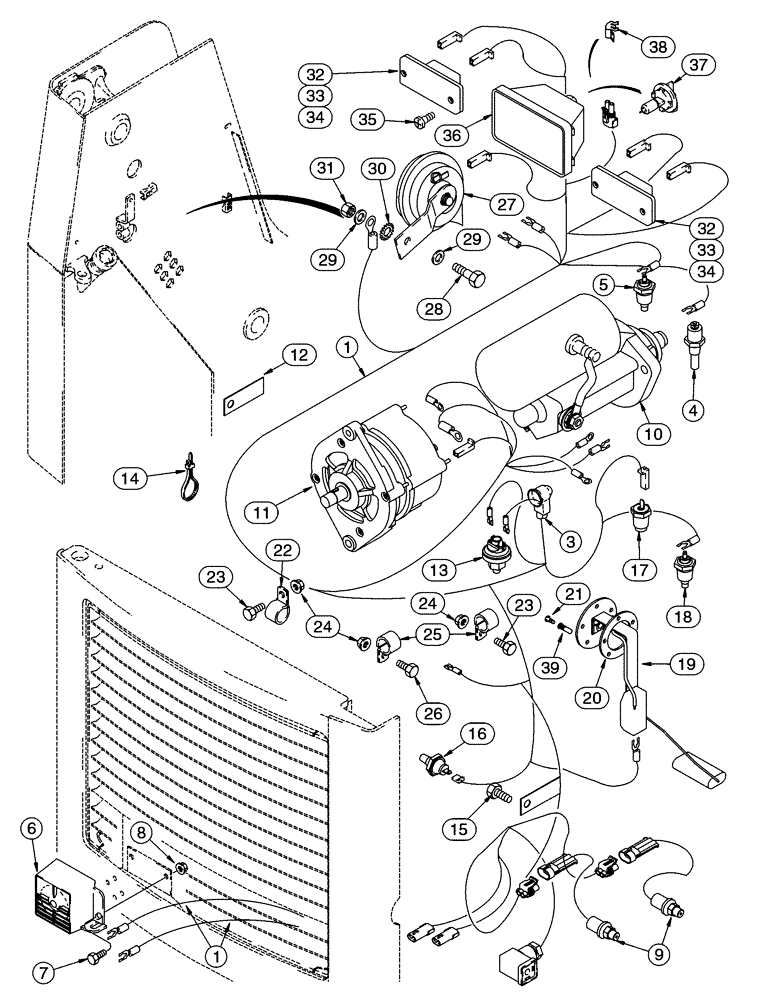

Запчасти Case 90XT (04-09) - HARNESS CHASSIS NORTH AMERICA - JAF0245224, REAR (04) - ELECTRICAL SYSTEMS

1

250863A3

HARNESS

Chassis, Includes: Ref. 2, 3, See Figure 4-06, No Longer Available, Order 250863A7 (4-06), See Note

1шт.

3

280326A1

BOOT

1шт.

Part of P/N 250863A3

1шт.

4

H439301

SWITCH

Hydraulic Temperature

1шт.

5

A166057

TEMPERATURE SENDER,1/2" - 14 NPTF

Hydraulic Temperature, If Equipped

1шт.

6

283178A3

ALARM

Back-Up, No Longer Available, Order 325258A1, See This Figure

1шт.

6

325258A1

ALARM

1шт.

7

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

2шт.

8

832-41306

NUT,M6 x 1, Cl 10

2шт.

9

251905A2

SWITCH

Brake Pressure, Charge Pressure

2шт.

10

1987559C1

STARTING MOTOR

Air Filter, See Figure 4-01

1шт.

10

86982709R

REMAN-STARTER,12V, 2.5kW

Remanufactured, Starter, 12 volt, 2.5KW

1шт.

10

86982709C

CORE-STARTER,12V, 2.5kW

Return Part Number

1шт.

10

104452A2R

REMAN-STARTER

Remanufactured Starter 12 volt, 2.5KW

1шт.

10

104452A1C

CORE-STARTER

Return Part Number, Starter 12 volt, 2.5KW

1шт.

11

A187873

ALTERNATOR,12V, 65A

12V, 65 amp, See Figure 4-02

1шт.

Note: Ref. 4, Hydraulic Temperature Switch Is Located Near Ref. 5, Hydraulic Temperature Sender On 250863A3 Harness.

1шт.

11

A187873GV

ALTERNATOR

Value, 12V, 65A

1шт.

12

A37179

CLIP

3шт.

13

1983233C1

RESTRICTION SWITCH

SWITCH, air restriction

1шт.

14

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

1шт.

15

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

1шт.

16

1534526C2

SWITCH, PRESSURE

PRESSURE SWITCH 1/8 PT, Engine Oil

1шт.

17

1345488C3

TEMPERATURE SWITCH

Engine Temp

1шт.

18

A166057

TEMPERATURE SENDER,1/2" - 14 NPTF

Engine Temp, If Equipped

1шт.

19

238143A1

SENDER UNIT

Fuel Level

1шт.

20

528359R4

GASKET,3.05mm Thk

Replaces: A11822

1шт.

21

490-11012

SCREW,Cross Pan Hd, #10-32 x 3/4"

5шт.

22

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

1шт.

23

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

24

825-5148

SERRATED NUT,M8, Flg Ser

3шт.

25

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

2шт.

26

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

27

341825A1

HORN

12V, See Figure 4-29, Replaces: 190155A1

1шт.

28

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

30

893-11008

LOCK WASHER,Ext Tooth, M8

1шт.

31

832-41308

NUT,M8 x 1.25, Cl 10

1шт.

32

233163A2

LAMP, TAIL

LIGHT, TAIL Includes: Ref. 33 - 35

2шт.

33

NSS

NOT SOLD SEPARAT

LENS red

1шт.

Part of P/N 233163A2

1шт.

34

259499A1

BULB

12V, 5W

1шт.

Part of P/N 233163A2

1шт.

35

260-13414

SELF-TAP SCREW,Cross Pan Hd, #8 x 7/8"

No. 8 st x 7/8

2шт.

Part of P/N 233163A2

1шт.

36

222004A2

HEADLIGHT,Halogen, 12V, 50W, Clear

Includes: Ref. 37, 38

1шт.

37

259702A1

BULB

1шт.

Part of P/N 222004A2

1шт.

38

259701A1

CLIP,ELECTRICAL

1шт.

Part of P/N 222004A2

1шт.

39

196985A1

ROD,THREADED

THREADED ROD Use With Ref. 21, 490-11012, Use Loctite No. 592

5шт.

B17426

GASKET MAKER FLUID

Loctite No. 592

1шт.

29

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.
