Запчасти Case 90XT (03-11) - FUEL INJECTION PUMP AND DRIVE NORTH AMERICA JAF0245225 -, 4T-390 EMISSIONS CERTIFIED ENGINE (03) - FUEL SYSTEM

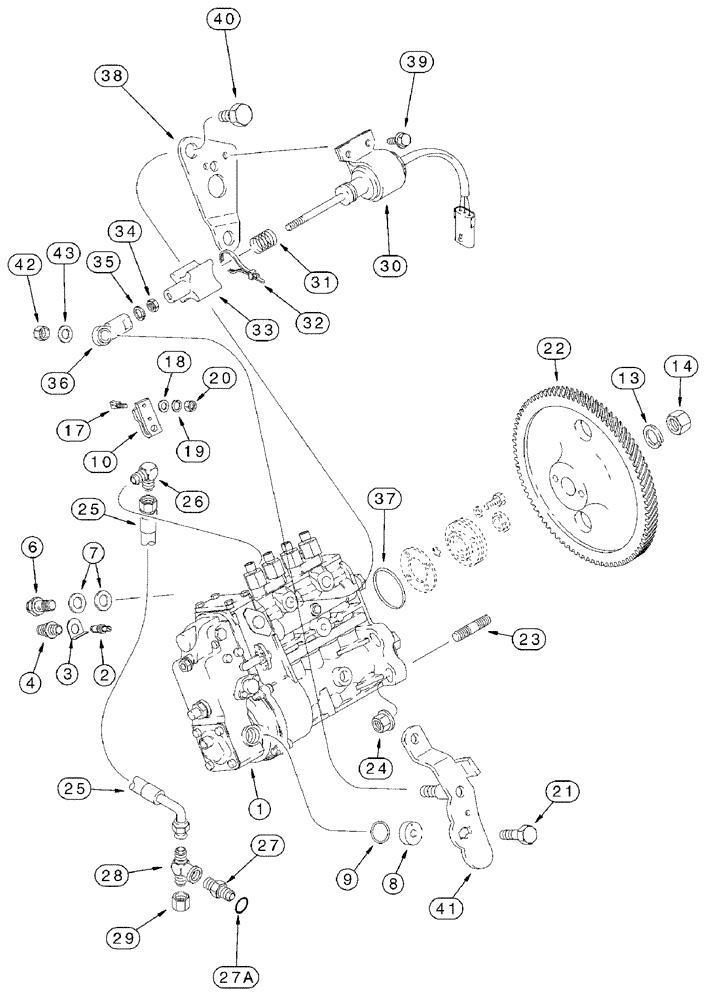

Схема запчастей Case 90XT - (03-11) - FUEL INJECTION PUMP AND DRIVE NORTH AMERICA JAF0245225 -, 4T-390 EMISSIONS CERTIFIED ENGINE (03) - FUEL SYSTEM
26
38
17
13
24
27
7
14
1
10
35
31
33
42
41
28
29
20
21
22
30
39
43
18
4
3
34
8
40
2
23
37
9
32
6
25
36
25
19
27a

Артикул

Название

Примечание

Количество

1

J930148

PUMP, FUEL INJECTION

PUMP, INJECTION Includes: Ref. 2 - 21

1шт.

1

JR930148

REMAN-INJECTION PUMP

Remanufactured Pump Assy;

1шт.

1

JC930148

CORE-INJECTION PUMP

Return Number

1шт.

2

A77720

PIN

1шт.

3

J928981

LOCK WASHER

1шт.

4

J912888

PLUG

1шт.

6

J932096

VALVE

1шт.

7

933697R1

SEALING RING,M10 x 13.5 x 1

2шт.

8

691292C1

RETAINER

1шт.

9

680187C1

O-RING,2.5mm Thk x 9mm ID

1шт.

10

1808728C1

LEVER

1шт.

13

A77775

LOCK WASHER

1шт.

14

A41852

LOCK NUT

1шт.

17

1808822C1

THUMB SCREW,M6 x 26mm

1шт.

18

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

19

892-11006

LOCK WASHER,M6

1шт.

20

829-1306

NUT,M6, Cl 10

1шт.

21

628-6016

BOLT,Hex, M6 x 16mm, Cl 10.9, Full Thd

1шт.

22

J931450

PINION

1шт.

23

J915036

STUD

55 mm (2-5/32 in)

4шт.

24

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

4шт.

25

J918536

FLEXIBLE HOSE,295.00 mm

1шт.

26

A77512

ELBOW

male

1шт.

27

J932321

UNION

Replaces: J941472

1шт.

27a

637-62081

O-RING,1.6mm Thk x 8.1mm ID, Cl 6, 90 Duro

Replaces 637-72081

1шт.

28

J924346

TEE

1/8 PT x 7/16, Replaces: J933291

1шт.

29

218-752

CAP,37 Degree, 7/16"-20

1шт.

30

J932529

SOLENOID

12V, Includes: Ref. 31 - 36

1шт.

31

311100A1

SPRING

1шт.

Part of P/N J932529

1шт.

32

473321C1

CABLE TIE,8" OAL x 0.098" W

CABLE STRAP

1шт.

Part of P/N J932529

1шт.

33

J925171

BOOT

1шт.

Part of P/N J932529

1шт.

34

425-154

JAM NUT,Jam, 1/4"-28, G5

1шт.

Part of P/N J932529

1шт.

35

492-11025

LOCK WASHER,1/4"

1шт.

Part of P/N J932529

1шт.

36

311099A1

JOINT

1шт.

Part of P/N J932529

1шт.

37

J930993

O-RING

1шт.

38

J930590

SUPPORT

1шт.

39

845-6012

BOLT,Hvy Hex, M6 x 12mm, Cl 8.8

2шт.

40

J929456

SCREW,Hex, M16 x 1.5 x 12mm, Gr 8.8

2шт.

J802998

PACKAGE,SERVICE

Pump Shutoff Lever

1шт.

41

NSS

NOT SOLD SEPARAT

LEVER

1шт.

42

832-41306

NUT,M6 x 1, Cl 10

1шт.

43

J934022

WASHER

1шт.

Выбрано товаров: 48
