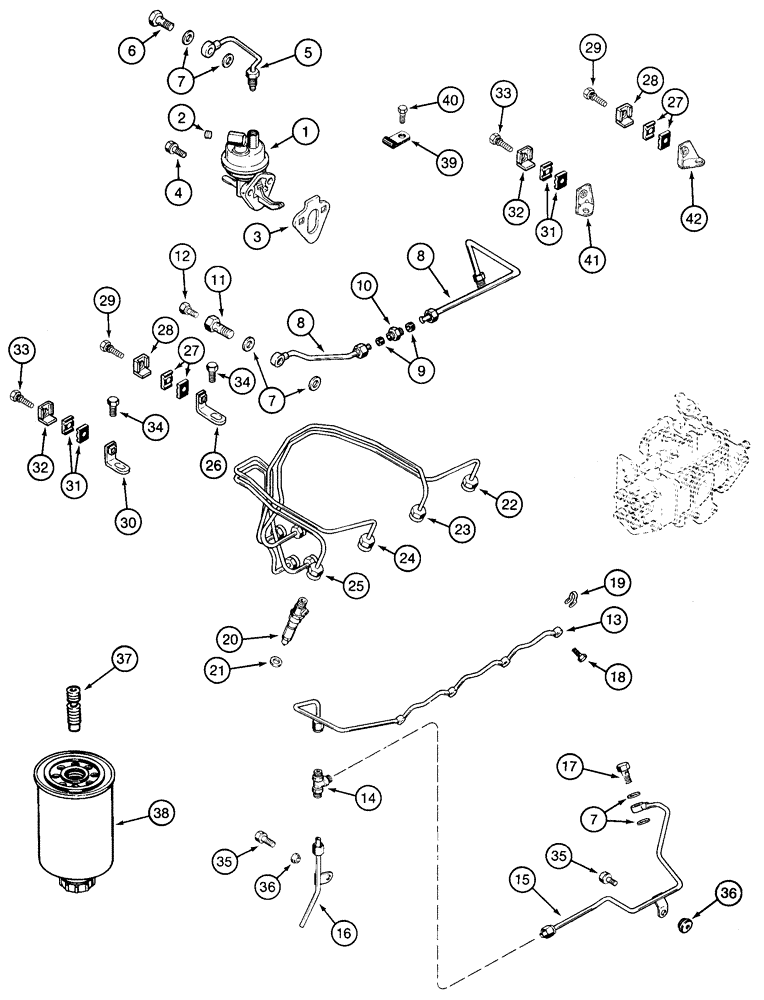

Запчасти Case 90XT (03-05) - FUEL INJECTION SYSTEM NORTH AMERICA - JAF0245224, 4T-390 ENGINE (03) - FUEL SYSTEM

1

J928143

PUMP

1шт.

2

221-841

PLUG

1/4 PT

1шт.

3

J931348

GASKET

Replaces: J923054

1шт.

4

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

5

J905649

FUEL TUBE,8 mm OD x 233.5 mm L

1шт.

6

J903035

BANJO BOLT

M12 x 24

1шт.

7

J918191

PACKING RING

12 x 18 x 1 mm

6шт.

8

J918640

FUEL TUBE

Consists Of: 9, 10

1шт.

9

222-103

SLEEVE,5/16" Tube

2шт.

10

222-4

FITTING,9/16"-24, Flex Tube

5/16 OD

1шт.

J905860

BANJO BOLT

Consists Of: 11, 12

1шт.

11

J911446

BANJO BOLT,M12 x 1.5 x 24mm

1шт.

Part of P/N J942581

1шт.

12

NSS

NOT SOLD SEPARAT

SCREW

1шт.

Part of P/N J942581

1шт.

13

J909695

FUEL TUBE

1шт.

14

222-121

TEE,3/16", Flex Tubing

1шт.

15

J905699

FUEL TUBE,4.76 mm OD

1шт.

16

J905692

FUEL TUBE

1шт.

17

J905465

BANJO BOLT

1шт.

18

J905307

BANJO BOLT,M6 x 1 x 14.30mm

4шт.

19

J903380

SEAL

4шт.

20

REF

INSTRUCTION

INJECTOR ASSY., See Figure 3-12

4шт.

21

REF

INSTRUCTION

SEAL Connector, See Figure 3-12

4шт.

22

J903480

FUEL TUBE,21 mm ID x 64 mm OD

1шт.

23

J903481

FUEL TUBE,21 mm ID x 64 mm OD

1шт.

24

J903482

FUEL TUBE,21 mm ID x 64 mm OD

1шт.

25

J903483

FUEL TUBE,21 mm ID x 64 mm OD

1шт.

26

J919381

BRACE

1шт.

27

J917746

CLAMP

4шт.

28

CURJ904711

CLAMP

2шт.

29

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

2шт.

30

J919296

SUPPORT

1шт.

31

J917746

CLAMP

4шт.

32

CURJ904711

CLAMP

2шт.

33

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

2шт.

34

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

2шт.

35

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

2шт.

36

J928759

SEALING WASHER

2шт.

37

J925955

ADAPTER,M16 x 1.5 x M16 x 1.5

1шт.

38

J931062

FILTER

1шт.

39

J914711

CLIP

1шт.

40

854-8040

BOLT,Hvy Hex, M8 x 40mm, Cl 10.9

1шт.

41

J930688

SUPPORT

1шт.

42

J930689

SUPPORT

1шт.
