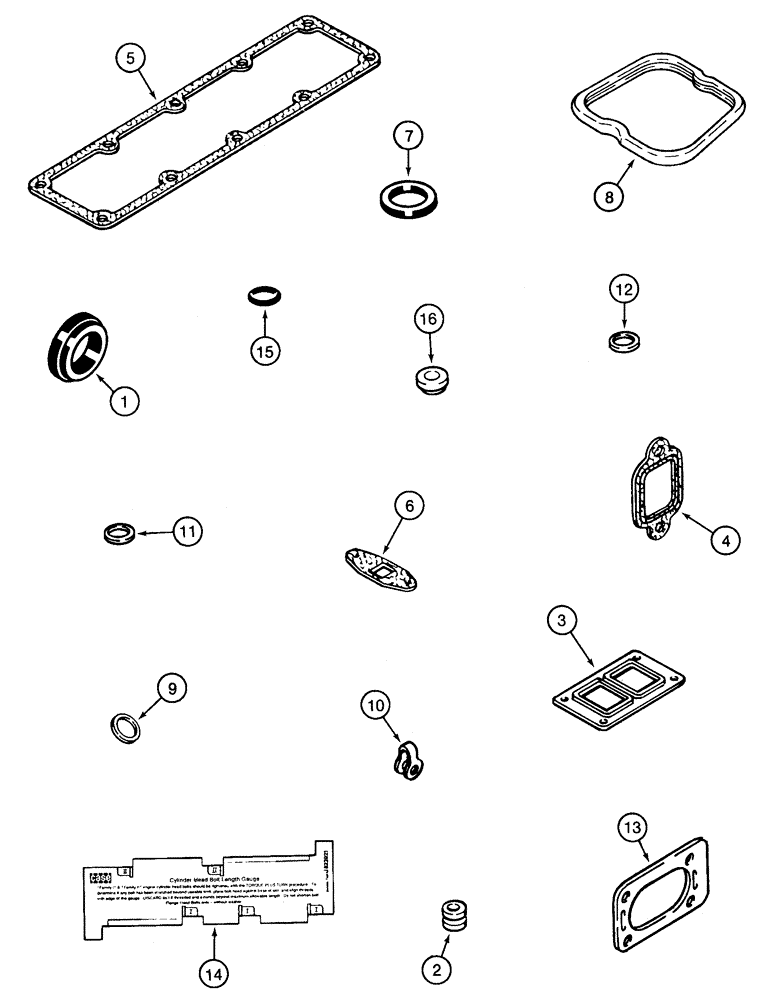

Запчасти Case 90XT (02-34) - GASKET KIT NORTH AMERICA/EUROPE - JAF0245224 VALVE GRIND, 4T-390 ENGINE (02) - ENGINE

A77858

GASKET KIT

Consists Of: 1 - 16, No Longer Available, Order A77975, See Figure 2-36

1шт.

1

J923331

GASKET

See Figure 2-22

1шт.

2

J921640

SEAL

Replaces: J901097, See Figure 2-23

8шт.

3

J901356

GASKET,0.5mm Thk

See Figure 2-15

1шт.

4

J927154

GASKET,0.38mm Thk

Replaces: J905443, See Figure 2-14

4шт.

5

J938153

MANIFOLD GASKET,0.8mm Thk

Replaces: J931605, See Figure 2-14

1шт.

6

J931350

GASKET

See Figure 2-15

1шт.

7

J902363

O-RING,30mm ID x 48mm OD x 3mm Thk

Oil Fill, See Figure 2-12

1шт.

8

J930906

GASKET

See Figure 2-22

4шт.

9

J900808

SEAL

Injector

4шт.

10

J903380

SEAL

Connector, See Figure 3-05

4шт.

11

J906659

SEAL

7 mm, Injector, See Figure 3-07

4шт.

12

J909356

SEAL,Square, 1.68mm Thk x 15.6mm ID, -16

Injector, See Figure 3-12

4шт.

13

J914856

GASKET,1.02mm Thk

If Equipped

1шт.

14

J823921

GAUGE

1шт.

15

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

4шт.

16

J928406

ISOLATOR

See Figure 2-22

4шт.
