Запчасти Case 90XT (02-31) - FLYWHEEL AND HOUSING NORTH AMERICA JAF0245225 -, 4T-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

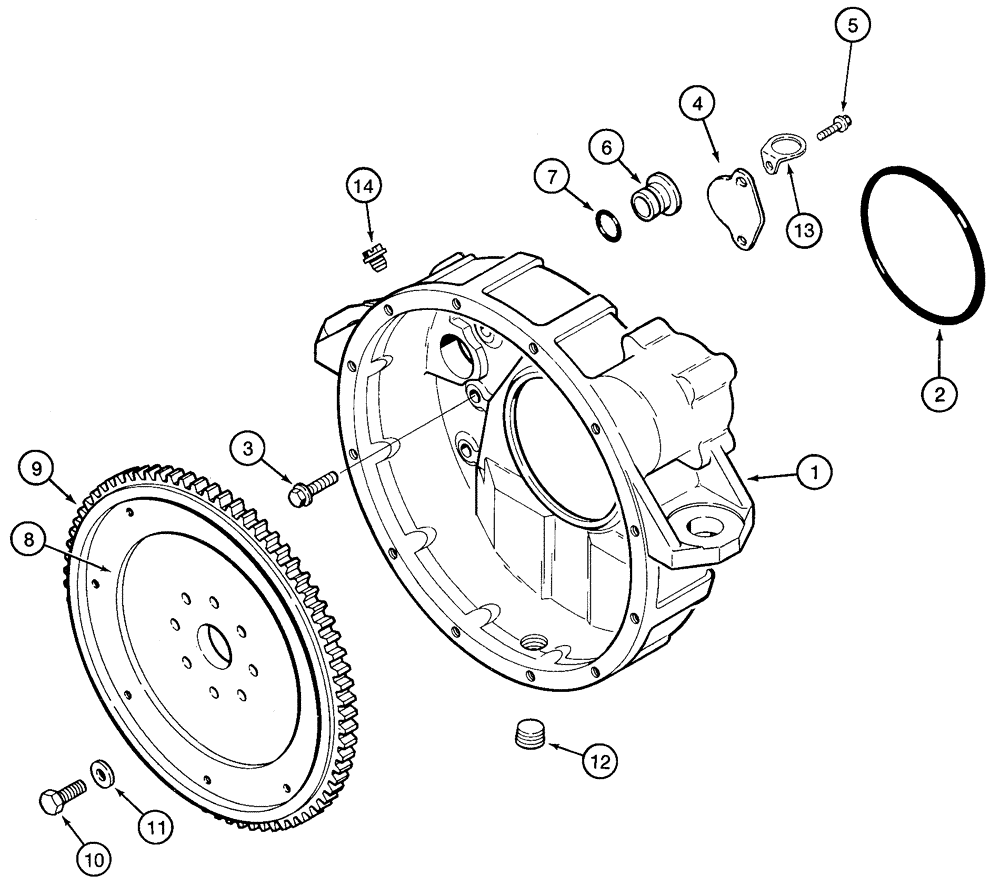

Схема запчастей Case 90XT - (02-31) - FLYWHEEL AND HOUSING NORTH AMERICA JAF0245225 -, 4T-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE
7
4
5
11
6
1
14
9
3
13
10
8
12
2

Артикул

Название

Примечание

Количество

1

J933392

HOUSING

1шт.

2

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING

1шт.

3

854-12040

BOLT,Hvy Hex, M12 x 40mm, Cl 10.9

8шт.

4

J925234

PLATE

1шт.

5

613-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

M8 x 16

2шт.

6

J910248

PLUG

1шт.

7

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

1шт.

8

J902569

FLYWHEEL

Consists Of: 9

1шт.

9

J901774

GEAR,Flywheel

159 T

1шт.

Part of P/N J902569

1шт.

10

J901395

BOLT,Hex, M12 x 1.25 x 32mm, Cl 12.9

8шт.

11

J900269

WASHER,12.76mm ID x 25.5mm OD x 1.65mm Thk

8шт.

12

263136

MAGNETIC PLUG,Sq. Soc, 3/4"-14 NPTF

PLUG, MAGNETIC

1шт.

13

J928989

CLIP

1шт.

14

353-225

PLUG,Sltd Hd, 3/4"-16

1шт.

Выбрано товаров: 15
