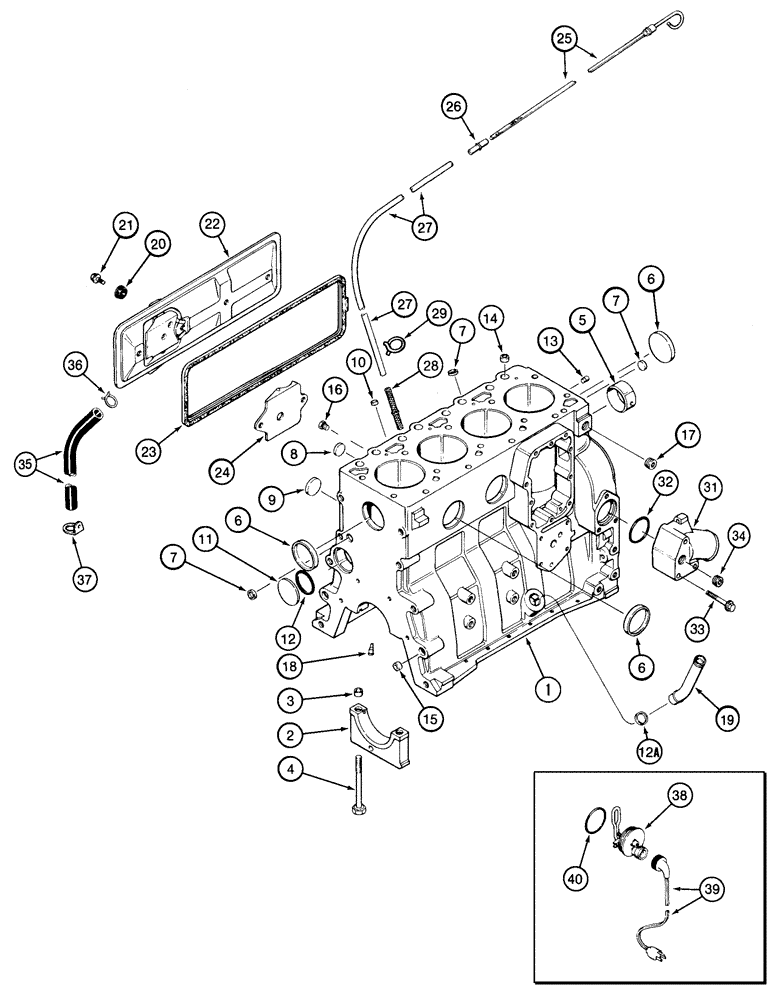

Запчасти Case 90XT (02-26) - CYLINDER BLOCK NORTH AMERICA - JAF0245224, 4T-390 ENGINE, PRIOR TO ENGINE SERIAL NUMBER 45537238 (02) - ENGINE

182213A1

ENGINE Complete, Less Starter, Alternator, Fan, Fan Belt, Air Cleaner, Muffler and Exhaust Pipe, Order 1989092C2

1шт.

377518A1R

REMAN-REPLACEMENT EN

Reman ENGINE Complete, Less Starter, Alternator, Fan, Fan Belt, Air Cleaner, Muffler and Exhaust Pipe

1шт.

377518A1C

CORE-REPLACEMENT ENG

Return Number

1шт.

1989092C2

BASIC ENGINE

Service, Less Starter, Alternator, Fan, Fan Belt, Air Cleaner, Muffler, Exhaust Manifold, Flywheel and Housing, Oil Fill and Dipstick, Fuel Injection Pump, Injectors and Lines, Front Pulley, Belt Tensioner, Turbocharger and Aftercooler

1шт.

47465929R

REMAN-BASIC ENGINE

Reman Basic Engine, includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler, exhaust manifold, flywheel and housing, oil fill and dipstick, fuel injection pump, injectors and lines, front pulley, belt tensioner, turbocharger and aftercooler

1шт.

47465929C

CORE-BASIC ENGINE

Return Number

1шт.

1

J920387

SKELETON ENGINE

Short, With Stripped Block, Pistons, Connecting Rods and Bearings, Crankshaft and Bearings, Order J802641

1шт.

1

JR933236

REMAN-SHORT ENGINE

Reman Short, With Stripped Block, Pistons, Connecting Rods and Bearings, Crankshaft and Bearings

1шт.

1

JC933236

CORE-SHORT ENGINE

Return Number

1шт.

2

J900967

BEARING CAP

5шт.

3

J900068

BEARING WASHER

18 mm OD

10шт.

4

J904217

BOLT,Hex, M14 x 2 x 119mm, Cl 12.9

10шт.

J802641

PACKAGE, REPAIR

Consists of: 9 - 18

1шт.

5

REF

INSTRUCTION

BUSHING, See Figure 2-25

1шт.

6

A77782

PLUG

58 mm

3шт.

7

J900956

PLUG

18 mm OD

3шт.

8

41-1616

PLUG,Cup, 1", Stainless

2шт.

9

J900958

PLUG

32 mm OD

2шт.

10

J900955

PLUG

10 mm OD

1шт.

11

172599

PLUG,Exp, 2 3/8"

60 mm OD, Includes: Ref. 12

1шт.

12

J926047

O-RING,0.07" Thk x 2.239" ID

57 mm ID

1шт.

Part of P/N 172599

1шт.

12a

J920706

PLUG

22 mm, Not Used

1шт.

13

J900257

PIN,10.01mm OD x 16mm L

16 mm

2шт.

14

J902343

DOWEL

16 mm OD

2шт.

15

J900068

BEARING WASHER

18 mm OD

2шт.

16

J906619

PLUG,1/8" - 27

1/8 PT

2шт.

17

A77429

PLUG

1/2 PT

1шт.

18

J930139

NOZZLE CAP

4шт.

19

J903744

PIPE FITTING,22.42 mm ID x 28 mm OD x 90.2, 64 mm L

1шт.

20

J900267

SEAL

4шт.

21

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

2шт.

22

J925680

COVER

1шт.

23

J928831

GASKET

1шт.

24

J907586

BAFFLE

1шт.

25

J933333

DIPSTICK

1шт.

26

J905802

FITTING,9.53 mm OD x 39 mm L

1шт.

27

J905801

TUBE

1шт.

28

A77645

TUBE

1шт.

29

214-1308

HOSE CLAMP,#8, 1/2", Spring

2шт.

31

J903102

CONNECTION

1шт.

32

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

50 mm ID

1шт.

33

854-10075

BOLT,Hvy Hex, M10 x 75mm, Cl 10.9

3шт.

34

A77429

PLUG

1/2 PT

2шт.

35

J918612

TUBE,360.00 mm

1шт.

36

J904230

CLAMP,25.4mm

1шт.

37

J909670

CLIP

1шт.

196803A1

KIT

120V, Consists Of: 38 - 40

1шт.

38

NSS

NOT SOLD SEPARAT

ELEMENT

1шт.

Part of KIT P/N 196803A1

1шт.

39

196466A1

ELECTRIC CABLE

1829 mm (72 in)

1шт.

Part of KIT P/N 196803A1

1шт.

40

J910517

O-RING

240 Volt

1шт.

Part of KIT P/N 196803A1

1шт.

41

J916662

UNIT HEATER

240V, Not Illustrated

1шт.

42

112837A1

PLUG

Not Illustrated

1шт.

43

331-83

1/2 oz, Not Illustrated

1шт.

44

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in, Not Illustrated

1шт.
