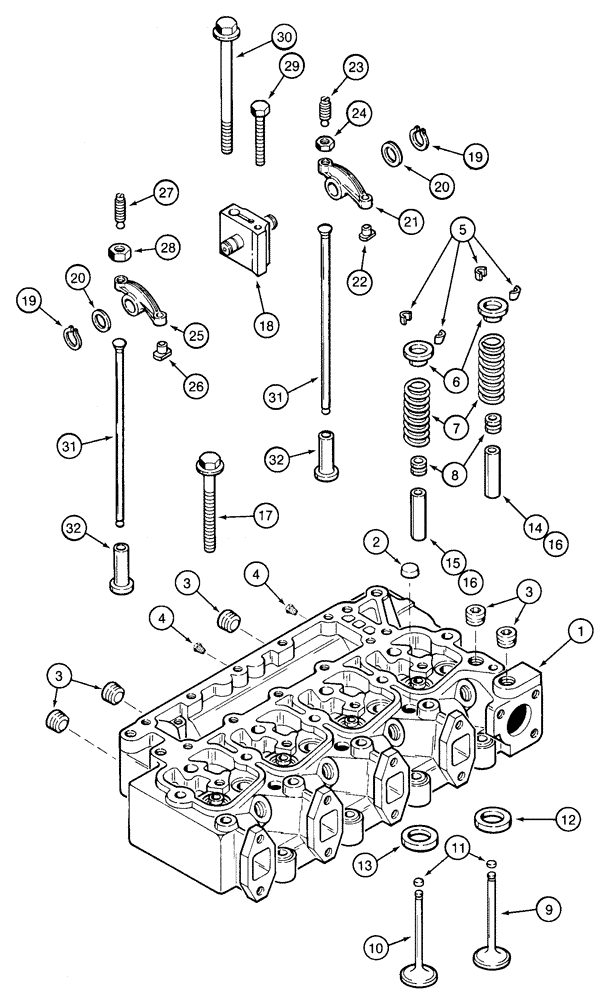

Запчасти Case 90XT (02-23) - CYLINDER HEAD VALVE MECHANISM NORTH AMERICA/EUROPE - JAF0245224, 4T-390 ENGINE (02) - ENGINE

JR929736

REMAN-CYLINDER HEAD

N.A. Only

1шт.

JC929736

CORE-CYLINDER HEAD

N.A. Only

1шт.

J929736

HEAD (CYLINDER)

Consists Of: 1 - 10

1шт.

1

J920005

HEAD (CYLINDER)

Consists Of: 2

1шт.

2

A77783

PLUG

21 mm OD

3шт.

Part of P/N J920005

1шт.

3

A77429

PLUG

1/2 PT

5шт.

4

J906619

PLUG,1/8" - 27

1/8 PT

2шт.

5

CASJ900250

RETAINER

16шт.

6

J900299

RETAINER

No Longer Used, Order J935038

8шт.

6

J935038

RETAINER

Replaces: J900299

8шт.

7

J926700

VALVE SPRING

8шт.

8

J921640

SEAL

Replaces: J901097

8шт.

9

J920867

VALVE

4шт.

10

J920868

VALVE

4шт.

11

J280911

WEAR PAD

1шт.

12

J906854

SEAT, VALVE

4шт.

13

J904105

SEAT, VALVE

4шт.

14

J904408

GUIDE

14 mm OD, Ream To Fit

4шт.

15

J904409

GUIDE

14 mm OD, Ream To Fit

4шт.

16

J906206

GUIDE

11 mm OD, Ream To Fit

8шт.

17

J920779

BOLT,Flng, M12 x 1.75 x 70mm, Cl 12.9

70 mm

4шт.

17

J920780

BOLT,Flng, M12 x 1.75 x 120mm, Cl 12.9

120 mm

10шт.

18

J922488

SUPPORT

4шт.

19

J900242

SNAP RING

8шт.

20

J900245

WASHER

8шт.

21

J910811

ROCKER

Consists Of: 22 - 24

4шт.

22

NSS

NOT SOLD SEPARAT

INSERT

1шт.

Part of P/N J910811

1шт.

23

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

1шт.

Part of P/N J910811

1шт.

24

425-116

NUT,3/8" - 24, Gr 5

1шт.

Part of P/N J910811

1шт.

25

J910810

ROCKER

Consists Of: 26 - 28

4шт.

26

NSS

NOT SOLD SEPARAT

INSERT

1шт.

Part of P/N J910810

1шт.

27

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

1шт.

Part of P/N J910810

1шт.

28

425-116

NUT,3/8" - 24, Gr 5

1шт.

Part of P/N J910810

1шт.

29

J901221

BOLT

M8 x 75

4шт.

30

J920781

BOLT,Flng, M12 x 1.75 x 180mm, Cl 12.9

180 mm

4шт.

31

J923262

PUSH ROD

8шт.

32

J931623

TAPPET

8шт.
