(05.100.03[01]) - FILTERS, 90XT

Запчасти Case 90XT (05.100.03[01]) - FILTERS, 90XT (18) - MISCELLANEOUS

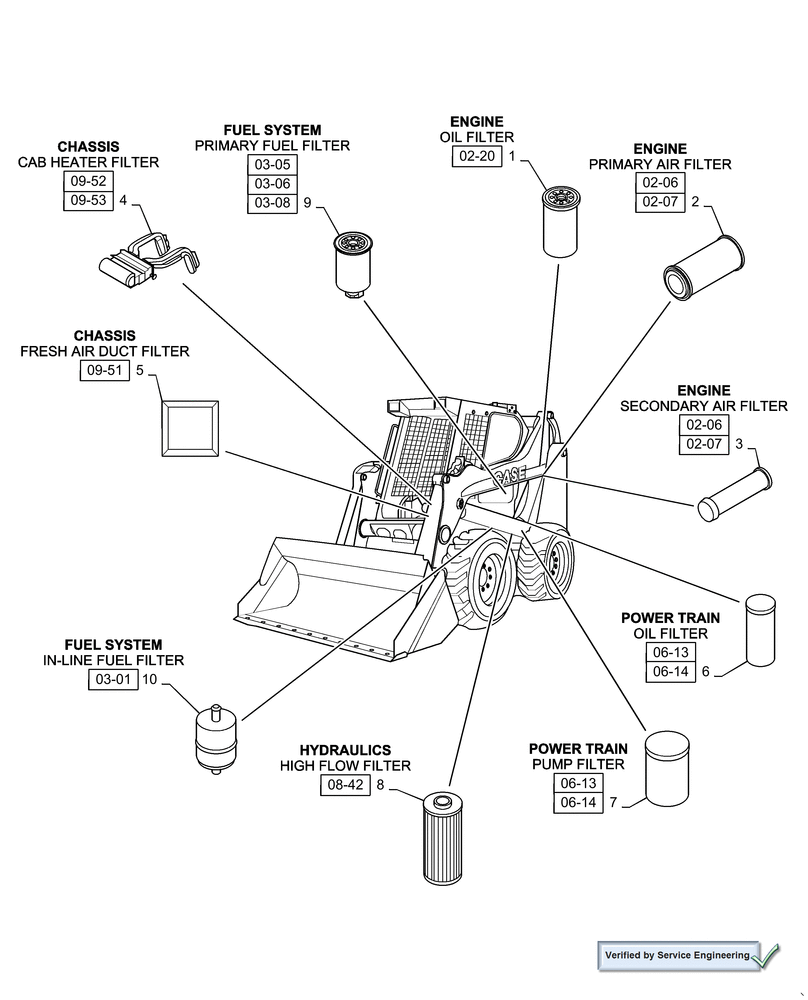

Схема запчастей Case 90XT - (05.100.03[01]) - FILTERS, 90XT (18) - MISCELLANEOUS
10
4
6
03-01
03-08
02-07
08-42
06-13
02-06
09-51
7
03-05
02-06
06-14
2
09-53
02-07
03-06
02-20
5
09-52
06-14
3
06-13
8
1
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

J934429

ENGINE OIL FILTER

Spin-On

1шт.

1

J908616

ENGINE OIL FILTER,Single pkg qty. For multi pkg [qty.12] order J908616MP

Single Pack

1шт.

1

J908616MP

ENGINE OIL FILTER

Multipack

1шт.

2

222421A1

AIR FILTER

Primary

1шт.

3

222422A1

AIR FILTER

Secondary

1шт.

4

317726A1

FILTER

Heater

1шт.

4

317726A1

FILTER

A/C Filter

1шт.

5

303224A1

FILTER

Fresh Air Duct

1шт.

6

N9025

HYDRAULIC OIL FILTER

Spin-On

1шт.

6

D126922

FILTER, ELEMENT

Optional

1шт.

7

222759A1

HYDRAULIC OIL FILTER

Pump

1шт.

8

244913A1

FILTER, ELEMENT

High Flow/High Pressure

1шт.

9

J931062

FILTER

Primary

1шт.

10

D139225

FILTER, FUEL

In-Line

1шт.

Выбрано товаров: 14
