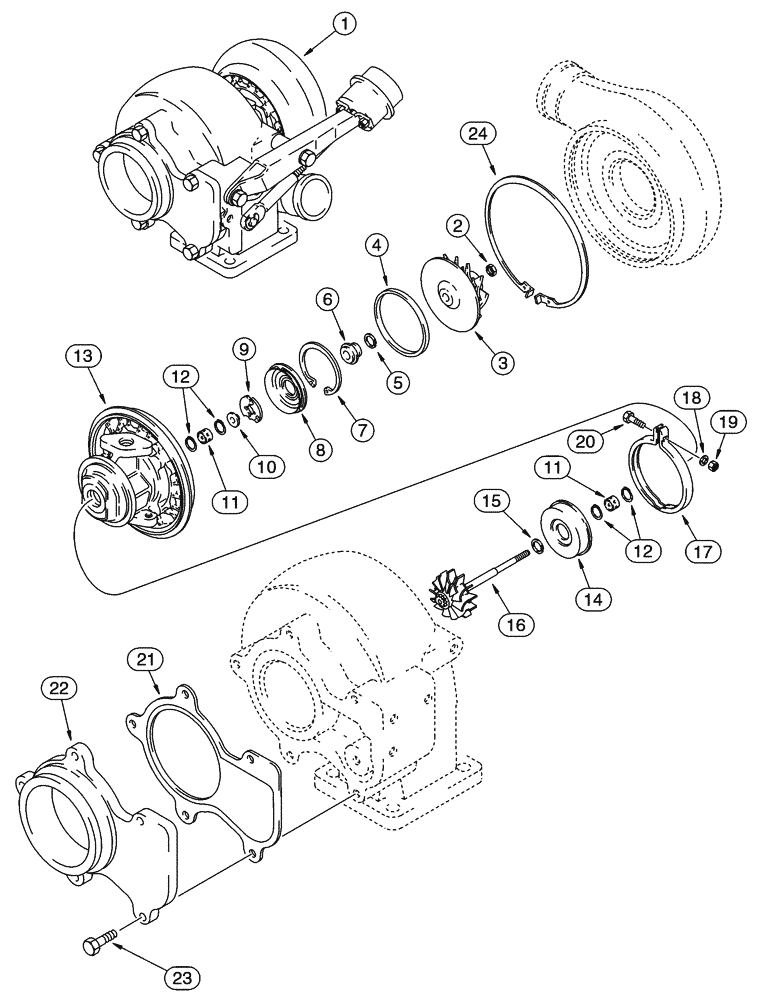

Запчасти Case 90XT (02-18) - TURBOCHARGER ASSY NORTH AMERICA JAF0245225 -, 4T-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

1

J804960

PACKAGE,SERVICE

TURBOCHARGER, Includes: J539638, J919639, J931350, J580234, 2- 24, Also Includes: Ref. 1 - 11, see Figure 2-19

1шт.

1

JR804960

REMAN-TURBOCHARGER

90XT Aft. PIN JAF0245225

1шт.

1

JC592206

CORE-TURBOCHARGER

Return Part Number

1шт.

J580234

HOUSING ASSY.

Consists Of: 2 - 23

1шт.

2

NSS

NOT SOLD SEPARAT

NUT

1шт.

3

NSS

NOT SOLD SEPARAT

IMPELLER

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL

1шт.

6

NSS

NOT SOLD SEPARAT

SLINGER

1шт.

7

NSS

NOT SOLD SEPARAT

RING

1шт.

8

NSS

NOT SOLD SEPARAT

BAFFLE

1шт.

9

NSS

NOT SOLD SEPARAT

BEARING Thrust

1шт.

10

NSS

NOT SOLD SEPARAT

COLLAR

1шт.

11

NSS

NOT SOLD SEPARAT

BEARING Journal

2шт.

12

NSS

NOT SOLD SEPARAT

RING

4шт.

13

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

14

NSS

NOT SOLD SEPARAT

SHIELD

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL

1шт.

16

NSS

NOT SOLD SEPARAT

ROTOR and SHAFT

1шт.

17

J531670

CLIP

1шт.

18

J535971

WASHER

1шт.

19

87673638

FLANGE NUT

Replaces J531582

1шт.

20

J531598

BOLT,Hex, M6 x 1 x 35, Stainless

M6 x 1

1шт.

21

J535001

GASKET,0.25mm Thk

1шт.

22

J527759

ADAPTER

1шт.

23

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

5шт.

24

J535800

RING, SNAP

RING SNAP

1шт.

J575205

PACKAGE, REPAIR

Overhaul, Consists Of: 2, 4, 5, 7, 8, 9, 11, 12, 15, 18, 19

1шт.
