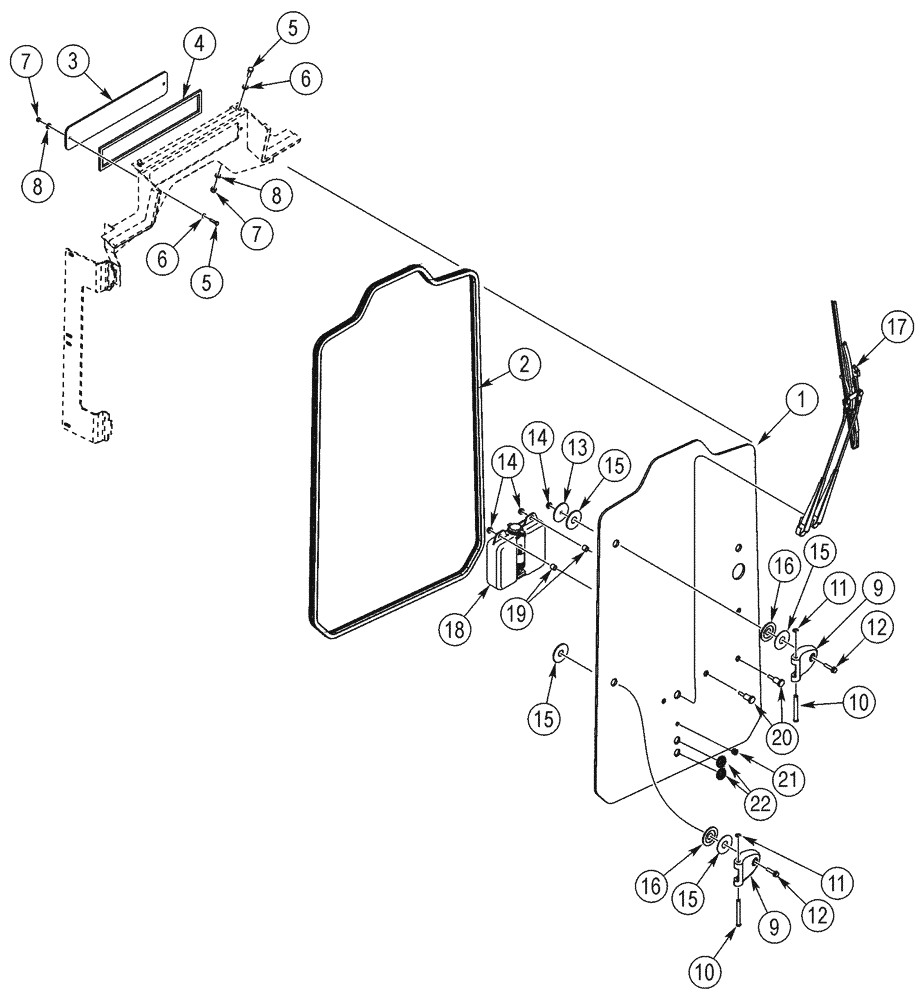

Запчасти Case 90XT (09-45) - DOOR, FRONT WINDSHIELD, GLASS, NORTH AMERICAN MODELS JAF0320050-, EUROPEAN MODELS JAF0274262- (09) - CHASSIS

1

430671A1

WINDSHIELD

Tempered Glass

1шт.

2

405201A1

DOOR SEAL

1шт.

3

402237A1

WINDOW

Door Frame

1шт.

4

394437A3

SEAL, GLASS

Top Window

1шт.

5

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

2шт.

6

103777A1

SEALING WASHER

2шт.

7

832-10406

NUT,M6 x 1, Cl 8

2шт.

8

895-30100

WASHER,6.6mm ID x 15mm OD x 1.6mm Thk

6.6 x 15 x 1.6

2шт.

9

304921A1

HINGE

2шт.

10

178819A3

PIN,10mm OD x 94.55mm L

2шт.

11

235754A1

CLIP,ELECTRICAL

2шт.

12

844-8040

BOLT,Hvy Hex, M8 x 40mm, Cl 8.8

2шт.

13

376332A1

WASHER,9mm ID x 60mm OD x 3.4mm Thk

60 mm OD

1шт.

14

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

3шт.

15

376336A1

RUBBER WASHER

60 mm OD

4шт.

15a

87446347

SPACER

21.5 OD; If Used, Between Ref 15, 16; Not Illustrated

2шт.

16

396848A1

WASHER

7/8 x 2-3/8 x 1/16

2шт.

17

398129A1

KIT

Wiper, See Figure 4-24

1шт.

18

322651A1

RESERVOIR ASSY.

Windshield Washer

1шт.

19

397962A2

SPACER

2шт.

20

398162A1

BOLT

M8 x 55

2шт.

21

398811A1

GROMMET

1шт.

22

198916A2

CAP,M8 x 20, Black

2шт.

417593A1

HARNESS

Front Door, See Figure 4-21

1шт.

A149804

FUSE

30 amp

1шт.
