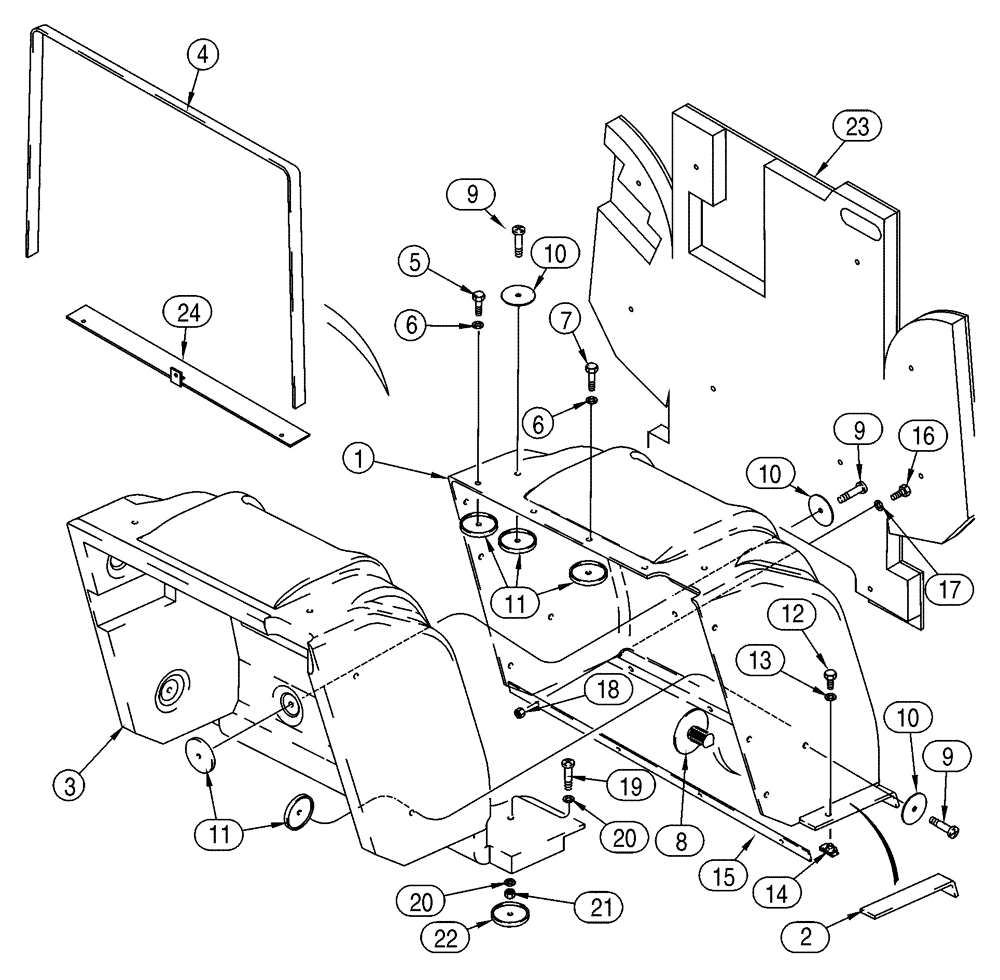

Запчасти Case 90XT (09-41) - CANOPY, ROPS HEAT SHIELD (09) - CHASSIS

1

243206A3

COVER

Thermoformed, No Longer Used, Order 347215A1, Ref 1, See Figure 9-42

1шт.

2

313324A1

SEAL

227 mm (9 in), Heat Sshield, Models With Deluxe Heater and Air Conditioning

2шт.

3

221401A5

INSULATOR

Heat Shield, Replaces: 221401A4, No Longer Available, Order 335015A1, Ref. 3, See Figure 9-42

1шт.

4

250705A2

BAND

1650 mm

1шт.

5

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

4шт.

6

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

7

814-6035

BOLT,Hex, M6 x 1 x 35mm, Cl 8.8

1шт.

8

D143242

PLUG,7.1mm Dia Shank x 25.4mm OD Head x 23.1mm L

8шт.

9

840-1535

SCREW,Pan, M5 x 35mm, Cl 4.8

9шт.

10

D136108

WASHER

9шт.

11

E99641

CAP

11шт.

12

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

2шт.

13

895-15006

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

2шт.

14

127367A1

NUT,M6, U

2шт.

15

247118A1

BAND

Lower

1шт.

16

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

4шт.

17

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

18

832-41306

NUT,M6 x 1, Cl 10

4шт.

19

840-1535

SCREW,Pan, M5 x 35mm, Cl 4.8

3шт.

20

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16")

6шт.

21

824-1405

NUT,M5, Cl 5

3шт.

22

E99641

CAP

3шт.

23

313457A1

INSULATOR

Heat Shield, Europe Only

1шт.

24

314588A1

PLATE

Models Without Deluxe Heater, Europe Only

2шт.
