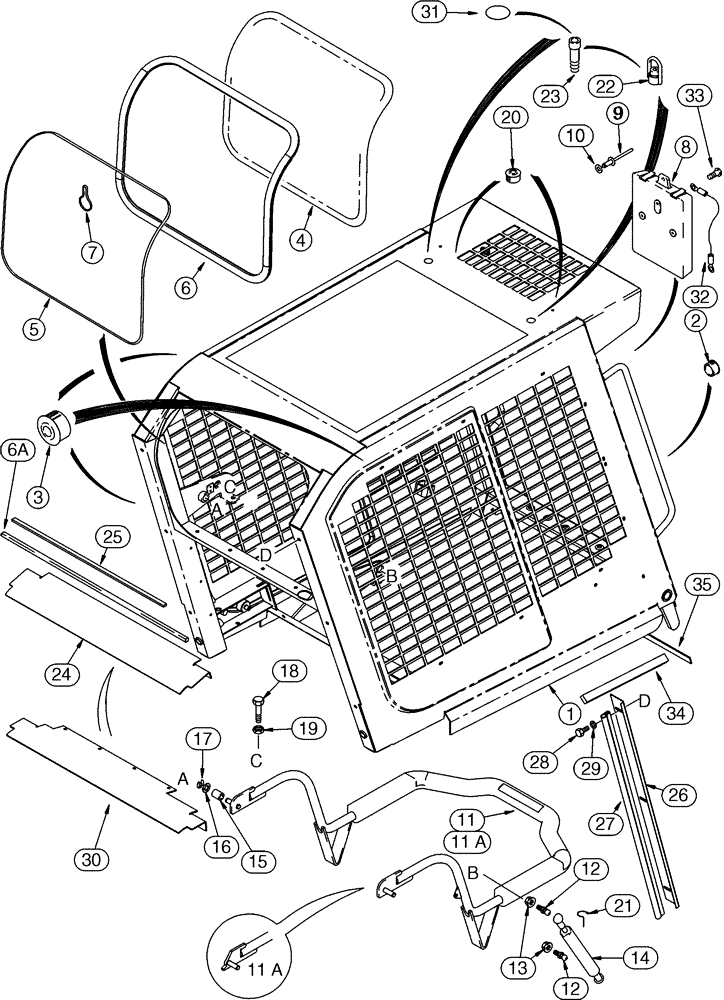

Запчасти Case 90XT (09-35) - CANOPY, ROPS FRAME AND SEAT BAR, NORTH AMERICAN MODELS -JAF0320049, EUROPEAN MODELS -JAF0274261 (09) - CHASSIS

1

304900A1

FRAME

ROPS, Includes: Ref. 5 (9-187), Ref. 1 & 2 (9-191), Ref. 1 & 6 (9-197), Machinery Item

1шт.

2

353-402

PLUG,Dome, .375" hole, Nylon

2шт.

3

353-411

PLUG,Dome, 1.000" hole, Nylon

3шт.

4

253422A1

GLASS

Ear

1шт.

5

230845A1

BAND

89 in

1шт.

6

199656A1

SEAL, GLASS

89 in

1шт.

6a

315083A1

SEALING STRIP

610 mm (40 inch), Window Frame, Europe Only

1шт.

7

107996A1

RING

1шт.

8

R46464

CASE

Manual, Operators

1шт.

9

151-522

RIVET,Pop, 3/16" x .575"

3/16 x 7/32

3шт.

10

495-31020

WASHER,#10

(13/64" x 15/32" x 3/64")

3шт.

11

250842A3

BAR ASSY.

-JAF0245805, North America Only, -JAF0274201, Europe Only, See Page(s) 4-53, 4-55

1шт.

11a

318038A1

BAR ASSY.

JAF0245806-, North America Only, JAF0274202-, Europe Only, See Page(s) 4-53, 4-55

1шт.

12

189609A1

BALL STUD,M8 x 1.25

M8

2шт.

13

825-5148

SERRATED NUT,M8, Flg Ser

2шт.

14

189787A2

SHOCK ABSORBER

1шт.

15

136209A1

BUSHING,12.77mm ID x 19.12mm OD x 25.53mm L

2шт.

16

496-21053

WASHER,17/32" x 1 1/16" x .134"

2шт.

17

D143415

SNAP RING,0.50” ID, Klipring

1/2

2шт.

18

614-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

2шт.

20

353-400

PLUG,Dome, .250" hole, Nylon

If used

2шт.

21

254307A1

CLIP

2шт.

22

277932A2

LOAD HOOK

Replaces: 277932A1

2шт.

23

326-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 8

Models without lift hooks, Replaced by Ref. 31, 293887A1

2шт.

24

240701A3

SHEET

Hood, No Longer Available, Order Ref. 30, 291259A2

1шт.

25

275066A1

SEAL

628 mm

1шт.

26

225420A1

ANGLE BAR

2шт.

27

188980A1

SEAL

875 mm

2шт.

28

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

6шт.

30

291259A2

COWL

Hood

1шт.

31

293887A1

COVER

70 mm (2-3/4 in), Models Without Lift Hooks

2шт.

32

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in, Manual, Operators, Replaces: L11541, L18331

1шт.

33

R46463

SCREW,0.18" x 0.75"

Manual Retention

1шт.

34

313149A1

SEAL

355 mm (14 in), ROPS Screen To Chassis, Models With Heater

2шт.

35

313150A1

SEAL

774 mm (30-1/2 in), ROPS Side Front Toe Guard, Models With Heater

1шт.

29

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

6шт.

19

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.
