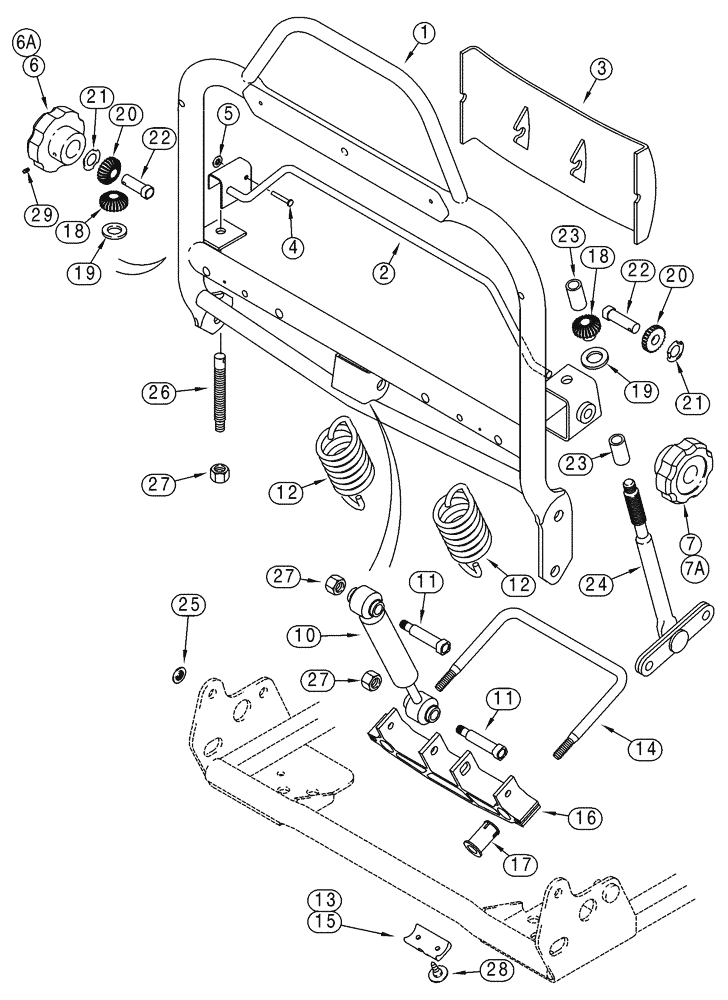

Запчасти Case 90XT (09-33) - SEAT SUSPENSION (09) - CHASSIS
№
Артикул
Название
Примечание
Количество
308307A1
SEAT
Consists of: 1 - 29, Includes: Figures 9-31 - 9-34, Replaces: 222023A2 & 302138A1
1шт.
1
NSS
NOT SOLD SEPARAT
FRAME Backrest
1шт.
291765A1
ASSEMBLY
Lumbar, Consists Of: 2 - 5
1шт.
2
NSS
NOT SOLD SEPARAT
CRANK
1шт.
3
NSS
NOT SOLD SEPARAT
SUPPORT Lumbar
1шт.
4
NSS
NOT SOLD SEPARAT
PIN
1шт.
5
NSS
NOT SOLD SEPARAT
NUT Special
1шт.
291756A1
ASSEMBLY
Consists Of: 6 and 291767A1, or 7 and 291767A1, Order One Kit Per Side
1шт.
6
NSS
NOT SOLD SEPARAT
KNOB Lumbar Adjustment, Retained By Flange Nut
1шт.
6a
361107A1
KIT
Lumbar Knob, Retained By 1/4-20 NC Set Screw
1шт.
7
NSS
NOT SOLD SEPARAT
KNOB Recliner, Retained By Flange Nut
1шт.
7a
361106A1
KIT
Recliner Knob, Retained By 1/4-20 NC Set Screw
1шт.
291767A1
ASSEMBLY
Emblem, Consists Of: 8, 9
1шт.
8
NSS
NOT SOLD SEPARAT
EMBLEM Lumbar, Not Illustrated
1шт.
9
NSS
NOT SOLD SEPARAT
EMBLEM Recliner, Not Illustrated
1шт.
291748A1
ASSEMBLY
Consists Of: 10, 11
1шт.
10
NSS
NOT SOLD SEPARAT
DAMPER
1шт.
11
NSS
NOT SOLD SEPARAT
PIN
2шт.
291749A1
ASSEMBLY
Consists Of: 12, 13
1шт.
12
NSS
NOT SOLD SEPARAT
SPRING
2шт.
13
NSS
NOT SOLD SEPARAT
BUSHING Spring Arm
2шт.
291761A1
ASSEMBLY
Consists Of: 13 - 17
1шт.
14
NSS
NOT SOLD SEPARAT
ARM Spring
1шт.
15
NSS
NOT SOLD SEPARAT
BUSHING Spring Arm
2шт.
16
NSS
NOT SOLD SEPARAT
SADDLE
1шт.
17
NSS
NOT SOLD SEPARAT
BUSHING Saddle
2шт.
291754A1
ASSEMBLY
Consists Of: 18 - 23
2шт.
18
NSS
NOT SOLD SEPARAT
NUT
1шт.
19
NSS
NOT SOLD SEPARAT
WASHER Thrust
1шт.
20
NSS
NOT SOLD SEPARAT
GEAR Bevel
1шт.
21
NSS
NOT SOLD SEPARAT
WASHER Spring
1шт.
22
NSS
NOT SOLD SEPARAT
SHAFT
1шт.
23
NSS
NOT SOLD SEPARAT
BUSHING, If Equipped
2шт.
291766A1
ASSEMBLY
Consists Of: 24, 25
1шт.
24
NSS
NOT SOLD SEPARAT
SCREW ASSY.
1шт.
25
NSS
NOT SOLD SEPARAT
NUT Special
1шт.
26
291771A1
ADJUSTMENT SCREW
1шт.
27
NSS
NOT SOLD SEPARAT
NUT
3шт.
28
NSS
NOT SOLD SEPARAT
BOLT Special
4шт.
29
NSS
NOT SOLD SEPARAT
SETSCREW
2шт.
Выбрано товаров: 40
