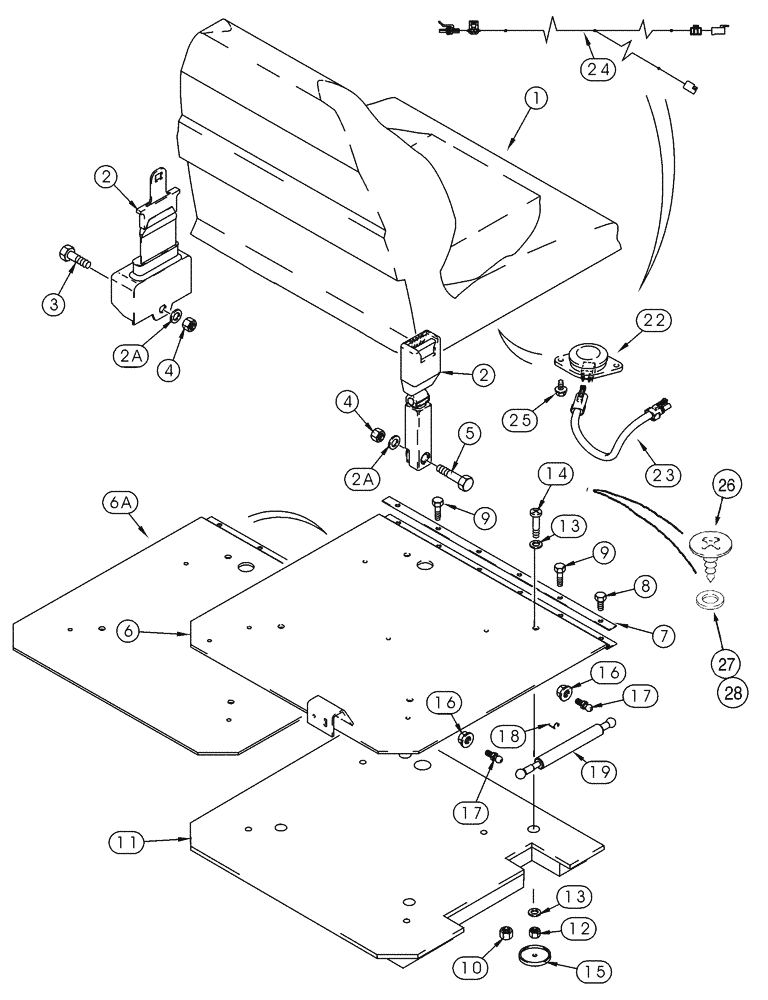

Запчасти Case 90XT (09-30) - SEAT, MOUNTING NON-SUSPENSION (09) - CHASSIS
№
Артикул
Название
Примечание
Количество
1
308306A2
SEAT
Replaces: 232017A1 and 302139A1, 308306A1, Includes: Ref. 22
1шт.
2
249116A1
SAFETY BELT ,50.80 mm W
Includes Ref. 2A
1шт.
2a
NSS
NOT SOLD SEPARAT
WASHER
2шт.
Part of P/N 249116A1
1шт.
3
614-10030
BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd
1шт.
4
832-41310
NUT,M10 x 1.5, Cl 10
2шт.
5
814-10055
BOLT,Hex, M10 x 1.5 x 55mm, Cl 8.8
1шт.
6
199308A5
LARGE PLATE
PLATE, LARGE -JAF0237207
1шт.
6a
302136A1
LARGE PLATE
PLATE, LARGE JAF0237208-
1шт.
7
259875A1
CROSSMEMBER
1шт.
8
614-6020
BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd
4шт.
9
614-6030
BOLT,Hex, M6 x 1 x 30mm, Cl 8.8, Full Thd
2шт.
10
832-41308
NUT,M8 x 1.25, Cl 10
4шт.
11
245174A1
INSULATOR
1шт.
12
824-1405
NUT,M5, Cl 5
If Used
5шт.
13
495-11028
WASHER,1/4", SAE
(9/32 x 5/8 x 1/16"), If used
10шт.
14
840-1535
SCREW,Pan, M5 x 35mm, Cl 4.8
If Used
5шт.
15
E99641
CAP
If Used
5шт.
16
825-5148
SERRATED NUT,M8, Flg Ser
2шт.
17
189609A1
BALL STUD,M8 x 1.25
M8
2шт.
18
254307A1
CLIP
2шт.
19
189787A2
SHOCK ABSORBER
1шт.
291768A1
ASSEMBLY
Slide, Consists Of: 20, 21
1шт.
20
NSS
NOT SOLD SEPARAT
SLIDE Left Hand, Order 291768A1, Not Illustrated, See Figure 9-34, Ref. 17
1шт.
Part of P/N 291768A1
1шт.
21
NSS
NOT SOLD SEPARAT
SLIDE Right Hand, Order 291768A1, Not Illustrated, See Figure 9-34, Ref. 18
1шт.
Part of P/N 291768A1
1шт.
22
242306A2
SWITCH
Operator Presence, Replaces: 291773A1, 242306A1
1шт.
Part of P/N 308306A2
1шт.
23
302137A1
HARNESS
Seat, Two Connector, JAF0237208-, Replaces: 291774A1
1шт.
24
242132A2
HARNESS
Seat, Three Connector, Used On Models With Interlock Sensor Switch, -JAF0237207, See Page(s) 4-19, 4-25
1шт.
25
NSS
NOT SOLD SEPARAT
BOLT
4шт.
26
348452A1
FASTENER,Push-In, 37mm L, Nylon
7.14 hole dia, If Used
5шт.
27
D136108
WASHER
If Used
5шт.
28
348434A1
WASHER,7.14mm ID x 44.5mm OD x 1.3mm Thk
7.14 ID x 44.5 OD, If Used
5шт.
Выбрано товаров: 35
