Запчасти Case 90XT (09-09) - PLATES, FLOOR, MODELS WITHOUT HEATER (09) - CHASSIS

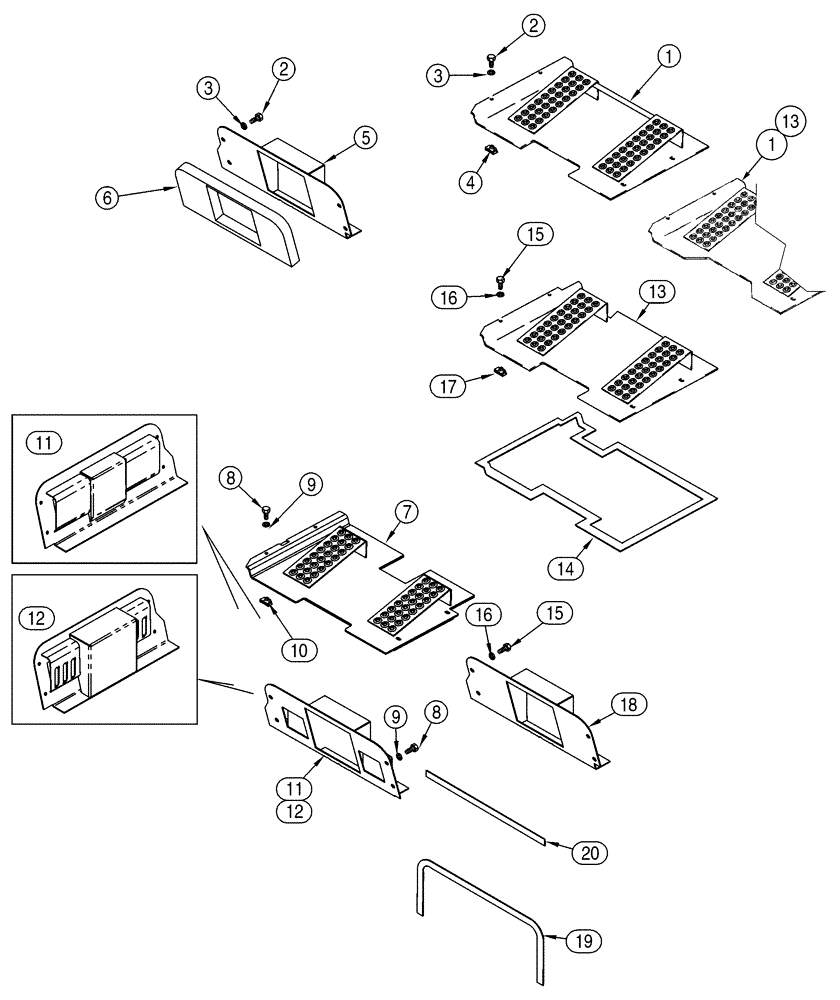

Схема запчастей Case 90XT - (09-09) - PLATES, FLOOR, MODELS WITHOUT HEATER (09) - CHASSIS
9
2
3
14
15
1
5
12
1
19
4
18
15
16
20
12
16
17
3
9
13
8
11
8
11
2
7
10
13
6

Артикул

Название

Примечание

Количество

1

280841A1

FLOOR

Models Without Heater

1шт.

2

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

Models without Heater

8шт.

4

122158A1

NUT,M8, U

Models Without Heater

4шт.

5

248004A5

PLATE ASSY.

Heel, Models Without Heater

1шт.

6

249109A1

INSULATOR

If Equipped, Models Without Heater

1шт.

7

279112A1

FLOOR

Models With Heater

1шт.

8

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

Models with Floor Heater

8шт.

10

122158A1

NUT,M8, U

Models With Floor Heater

4шт.

11

247680A2

LARGE PLATE

PLATE, LARGE Heel, See Figure 9-51, Used With Ref. 1, 232676A3, Models With Floor Heater

1шт.

12

304973A2

COVER

Heel Plate, See Figure 9-51, Used With Ref. 21, 303239A1, Models With Floor Heater

1шт.

13

294438A1

FLOOR

Models With Deluxe Heater and Air Conditioning

1шт.

14

313320A1

SEAL

Floor Plate, Models With Deluxe Heater and Air Conditioning

1шт.

15

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

Models with Deluxe Heater and Air Conditioning

8шт.

17

122158A1

NUT,M8, U

Models With Deluxe Heater and Air Conditioning

4шт.

18

248004A5

PLATE ASSY.

Heel, Models With Deluxe Heater and Air Conditioning

1шт.

19

313319A1

SEAL

Heel Plate Cover, Models With Deluxe Heater and Air Conditioning

1шт.

20

313321A1

SEAL

560 mm (22 in), Heel Plate, Models With Deluxe Heater and Air Conditioning

1шт.

3

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

Models without Heater

8шт.

9

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

Models with Floor Heater

8шт.

16

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

Models with Deluxe Heater and Air Conditioning

8шт.

Выбрано товаров: 20
