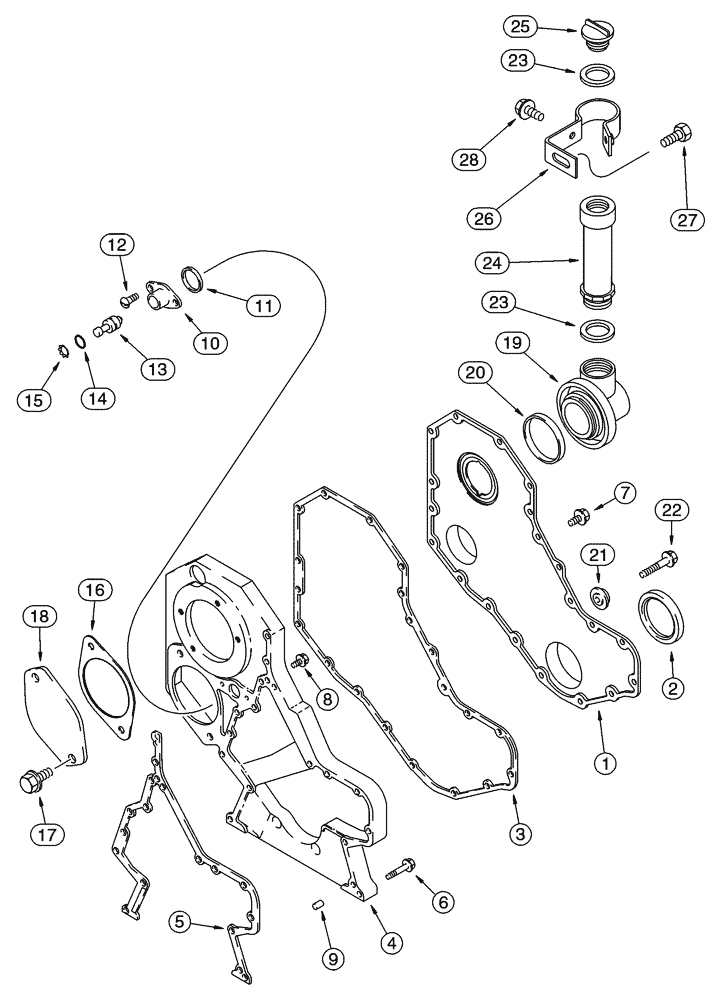

Запчасти Case 90XT (02-13) - FRONT GEAR COVER NORTH AMERICA JAF0245225 -, 4T-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

1

J918675

COVER

Also Order J935581, J823494

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL, Order A77889, See Figure 2-29

1шт.

3

J918673

GASKET,1.02mm Thk

Prior To 1996

1шт.

3

J935581

COVER

After P.I.N.

1шт.

4

J936257

HOUSING

Replaces: J932120

1шт.

5

J931351

GASKET

1шт.

6

845-8050

BOLT,Hvy Hex, M8 x 50mm, Cl 8.8

10шт.

7

J924962

FLANGE BOLT

M8 x 16

8шт.

8

J924962

FLANGE BOLT

M8 x 16

5шт.

9

J900257

PIN,10.01mm OD x 16mm L

16 mm

2шт.

10

J919683

HOUSING

1шт.

11

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING

1шт.

12

J907998

SCREW,M5 x 0.8 x 17mm, Cl 8.8

2шт.

13

J903924

PIN,18.87mm OD x 55mm L

1шт.

14

J913994

O-RING

1шт.

15

J904849

SNAP RING,0.875", Int, #87

1шт.

16

J929751

GASKET

2шт.

17

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

2шт.

18

J914868

COVER

1шт.

19

J921644

ADAPTER

1шт.

20

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

1шт.

21

J912772

RETAINER

1шт.

22

845-8060

BOLT,Hvy Hex, M8 x 60mm, Cl 8.8

1шт.

23

J902363

O-RING,30mm ID x 48mm OD x 3mm Thk

2шт.

24

J914738

TUBE,32 mm ID x 38 mm OD x 138 mm L

1шт.

25

J901895

CAP

1шт.

26

J918182

CLAMP,38mm ID

1шт.

27

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

1шт.

28

615-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

1шт.

J823494

SEALANT

3 oz, Not Illustrated

1шт.
