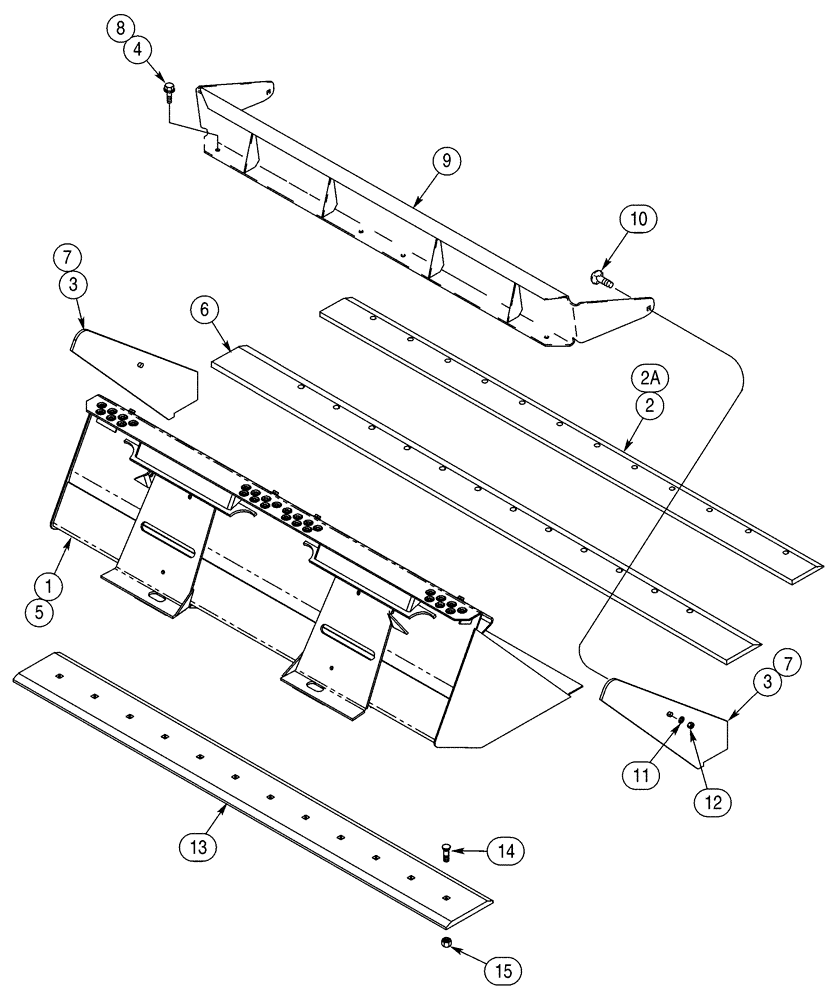

Запчасти Case 90XT (09-04) - BUCKETS LOADER, 1860 MM (73 IN) WIDE BUCKET (09) - CHASSIS

1

244554A2

ATTACHMENT

Machinery Item, Includes: Ref. 2 - 4

1шт.

2

245106A1

EDGE, CUTTING

Welded On, No Longer Used, Order H438919, Ref. 2A

1шт.

Part of P/N 244554A2

1шт.

2a

H438919

EDGE, CUTTING

152 mm (6 in), Welded On

1шт.

Part of P/N 244554A2

1шт.

3

245109A2

EDGE, CUTTING

Side, Welded On

2шт.

Part of P/N 244554A2

1шт.

4

857-12030

BOLT,Hvy Hex, M12 x 30mm, Cl 10.9

4шт.

Part of P/N 244554A2

1шт.

5

245078A2

BUCKET

Machinery Item, Heavy Duty, Includes: Ref. 6 - 8

1шт.

6

245108A1

EDGE, CUTTING

Welded On, Heavy Duty

1шт.

Part of P/N 245078A2

1шт.

7

245109A2

EDGE, CUTTING

Side, Welded On, Heavy Duty

2шт.

Part of P/N 245078A2

1шт.

8

857-12030

BOLT,Hvy Hex, M12 x 30mm, Cl 10.9

Heavy Duty

4шт.

Part of P/N 245078A2

1шт.

9

252645A2

HINGED SIDE

Used With 244554A2, 245078A2, Extension

1шт.

10

811-12035

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 35mm, Cl 8.8

12 x 35 mm, Extension

2шт.

11

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13.5 x 28 x 4 mm, Extension

2шт.

12

829-1412

NUT,M12, Cl 10.9

Extension

2шт.

13

294681A1

EDGE, CUTTING

Used With 244554A2, 245078A2, Bolt-On

1шт.

14

420-21036

CARRIAGE BOLT,#3, 5/8" - 11 x 2 1/4", Gr 8

Cutting Edge

12шт.

15

329-1010

NUT,5/8"-11, G8

Bolt-on cutting edge

12шт.
