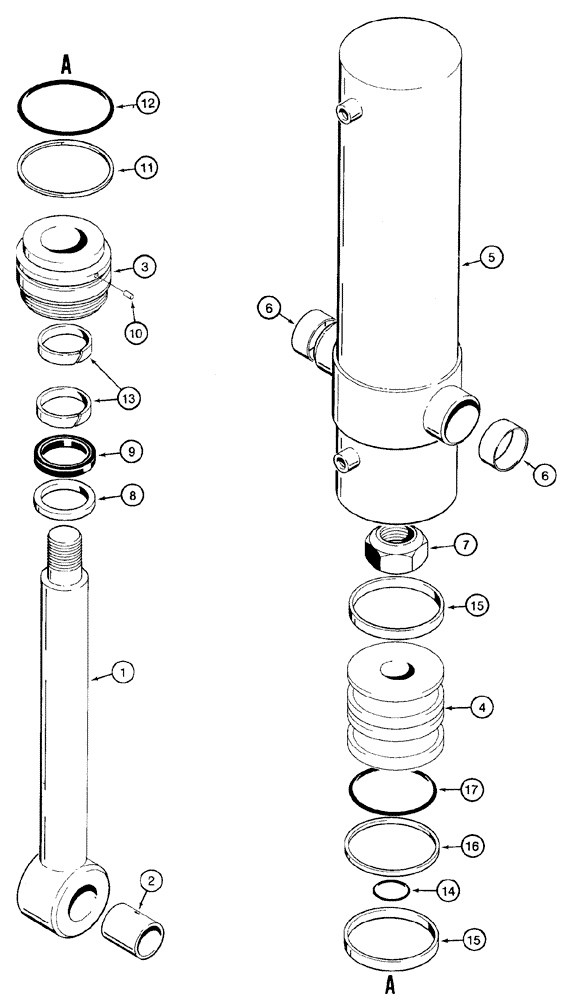

Запчасти Case 90XT (08-77) - CYLINDER ASSEMBLY TRENCHER BOOM LIFT NORTH AMERICA (08) - HYDRAULICS

221700A1

CYLINDER,Double Acting, 44.45mm Rod, 419.1mm Stroke

Consists Of: 1 - 17

1шт.

235932A1

SHAFT

Consists Of: 1, 2

1шт.

1

NSS

NOT SOLD SEPARAT

ROD

1шт.

Part of P/N 235932A1

1шт.

2

H438669

BUSHING,38.3mm ID x 47.75mm OD x 57.15mm L

1шт.

Part of P/N 235932A1

1шт.

3

120787A1

HEAD

1шт.

4

235930A1

PISTON

1шт.

5

235931A1

CASE

1шт.

6

105814A1

BUSHING

2шт.

7

131-190

LOCK NUT,1 1/4"-12, GB

1шт.

235933A1

SEAL KIT

Consists Of: 8 - 17

1шт.

8

NSS

NOT SOLD SEPARAT

WIPER

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL

1шт.

10

NSS

NOT SOLD SEPARAT

LOCK

1шт.

11

NSS

NOT SOLD SEPARAT

RING Backup

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING

1шт.

13

NSS

NOT SOLD SEPARAT

BUSHING

2шт.

14

NSS

NOT SOLD SEPARAT

O-RING

1шт.

15

NSS

NOT SOLD SEPARAT

RING Wear

2шт.

16

NSS

NOT SOLD SEPARAT

SEAL

1шт.

17

NSS

NOT SOLD SEPARAT

O-RING

1шт.
