Артикул
Название
Примечание
Количество
H673149

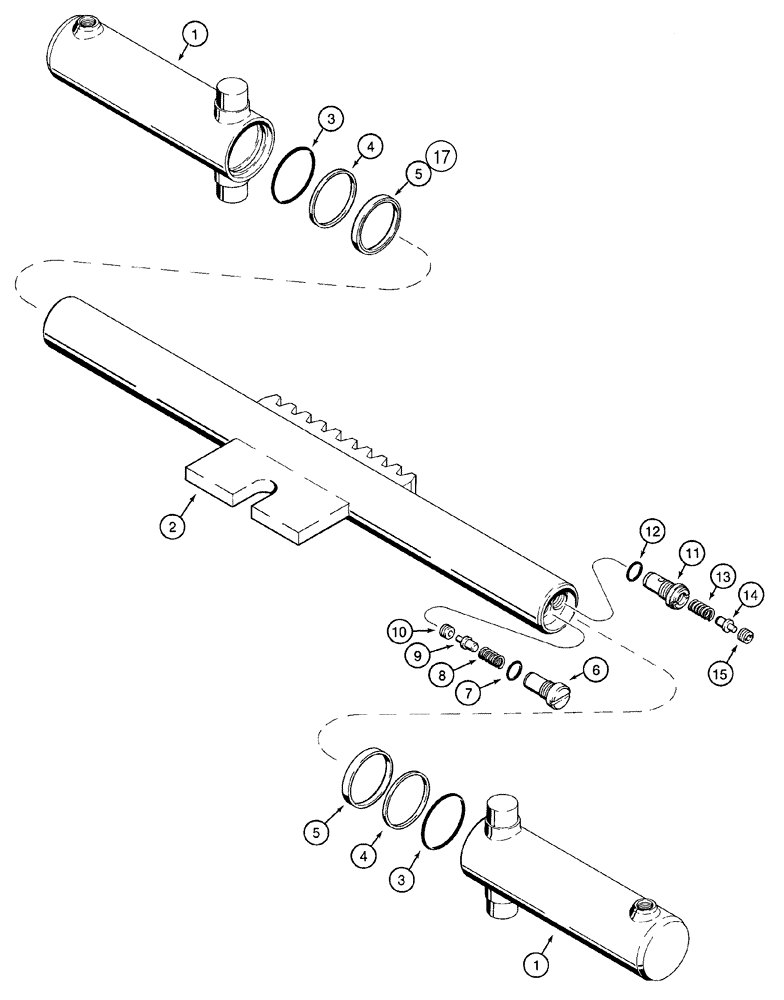

CYLINDER ASSY.
70 ID x 254 mm strk, Swing, Consists Of: 1 - 15, No Longer Available, Order 379623A1
1шт.
379623A1
CYLINDER ASSY.,Double Acting, 60.8mm Rod, 254mm Stroke
70 ID x 254 mm strk, Swing, Consists Of: 1, 2, 6 - 17
1шт.
1
H439098
BARREL
Used With H673149
2шт.
1
398164A1
TUBE
Used With 379623A1
2шт.
2
H439097
ROD
Used With H673149
1шт.
2
398163A1
PISTON ROD
Used With 379623A1
1шт.
3
H743591
O-RING
Used With H673149
2шт.
4
H754606
WASHER
Used WithH673149
2шт.
5
H215202
SEAL ASSY.
Used With H673149
2шт.
H53033
LOCK VALVE
Consists Of: 6 - 10
1шт.
6
NSS
NOT SOLD SEPARAT
BODY
1шт.
Part of P/N H53033
1шт.
7
238-5116
O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro
1шт.
Part of P/N H53033
1шт.
8
F37883
SPRING
1шт.
Part of P/N H53033
1шт.
9
H138362
SPOOL
1шт.
Part of P/N H53033
1шт.
10
NSS
NOT SOLD SEPARAT
SEAT
1шт.
Part of P/N H53033
1шт.
H53025
LOCK VALVE
Consists Of: 11 - 15
1шт.
11
NSS
NOT SOLD SEPARAT
BODY
1шт.
Part of P/N H53025
1шт.
12
238-5116
O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro
1шт.
Part of P/N H53025
1шт.
13
F37883
SPRING
1шт.
Part of P/N H53025
1шт.
14
H138362
SPOOL
1шт.
Part of P/N H53025
1шт.
15
NSS
NOT SOLD SEPARAT
SEAT
1шт.
Part of P/N H53025
1шт.
16
NSS
NOT SOLD SEPARAT
SEAL, U-Cup, Used With 379623A1, Order 398166A1, Not Illustrated
2шт.
17
NSS
NOT SOLD SEPARAT
SEAL, Used With 379623A1, Order 398166A1
2шт.
H53041
SEAL ASSY.
Consists Of: 3, 4, 5, 7, 12, Used With H673149
1шт.
398166A1
KIT
Used With 379623A1
1шт.
Выбрано товаров: 35
