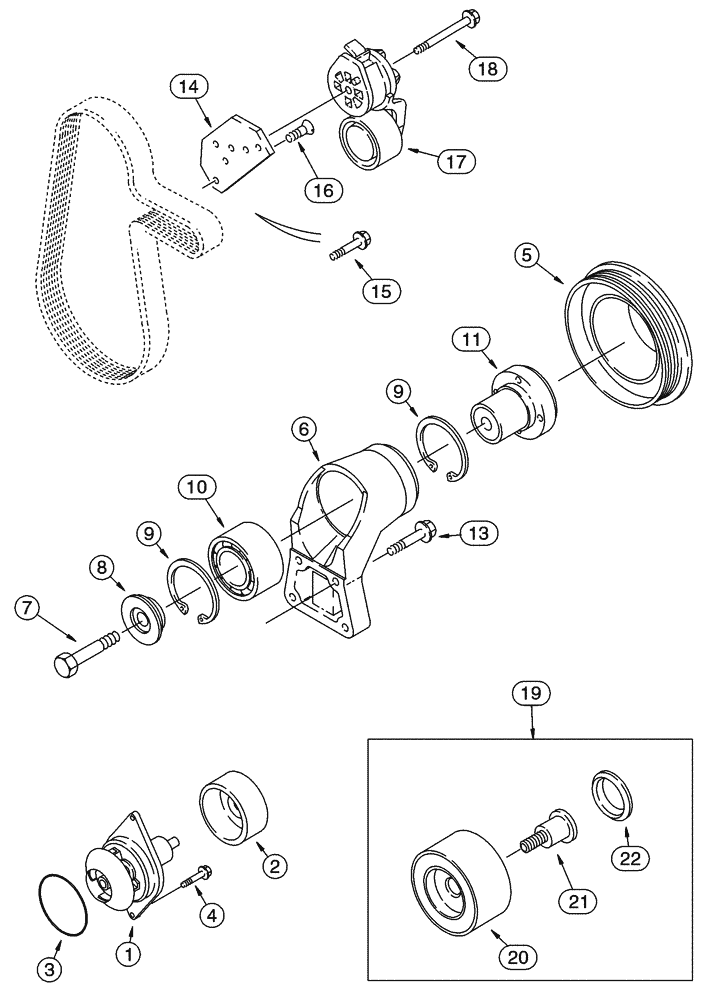

Запчасти Case 90XT (02-11) - WATER PUMP SYSTEM NORTH AMERICA JAF0245225 -, 4T-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

J802358

PUMP, WATER

Consists Of: 1 - 3

1шт.

J286278R

REMAN-WATER PUMP

90XT, BSN JAF0245224

1шт.

J286278C

CORE-WATER PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

PUMP ASSY.

1шт.

Part of P/N J802358

1шт.

2

NSS

NOT SOLD SEPARAT

PULLEY

1шт.

Part of P/N J802358

1шт.

3

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

1шт.

Part of P/N J802358

1шт.

4

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

2шт.

5

J914462

PULLEY,163mm OD

1шт.

6

J911922

SUPPORT ASSY.

Includes: Ref. 7 - 11

1шт.

7

J907769

BOLT,Hex, M10 x 70mm, Cl 12.9

M10 x 70

1шт.

Part of P/N J911922

1шт.

8

J923044

RETAINER

1шт.

Part of P/N J911922

1шт.

9

100-21250

SNAP RING,2.50", Int, #250

2шт.

Part of P/N J911922

1шт.

10

J910739

BALL BEARING,35mm ID x 64mm OD x 37mm W

1шт.

Part of P/N J911922

1шт.

11

J911924

HUB

1шт.

Part of P/N J911922

1шт.

13

845-8040

BOLT,Hvy Hex, M8 x 40mm, Cl 8.8

4шт.

14

J925207

SUPPORT

1шт.

15

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

1шт.

16

J925186

SCREW,Torx, M8 x 1.25 x 25mm, Cl 10.9

1шт.

17

J936203

BELT TENSIONER

Replaces: J918944

1шт.

18

854-10075

BOLT,Hvy Hex, M10 x 75mm, Cl 10.9

Replaces 854-10070

1шт.

19

A77817

KIT

Tensioner, Consists Of: 20 - 22

1шт.

20

NSS

NOT SOLD SEPARAT

PULLEY

1шт.

Part of P/N A77817

1шт.

21

NSS

NOT SOLD SEPARAT

BOLT

1шт.

Part of P/N A77817

1шт.

22

NSS

NOT SOLD SEPARAT

SEAL

1шт.

Part of P/N A77817

1шт.
