Запчасти Case 90XT (08-61) - HYDRAULIC SYSTEM BACKHOE BOOM CYLINDER NORTH AMERICA, D125 BACKHOE W/ TUBES AT CONTROL VALVE (08) - HYDRAULICS

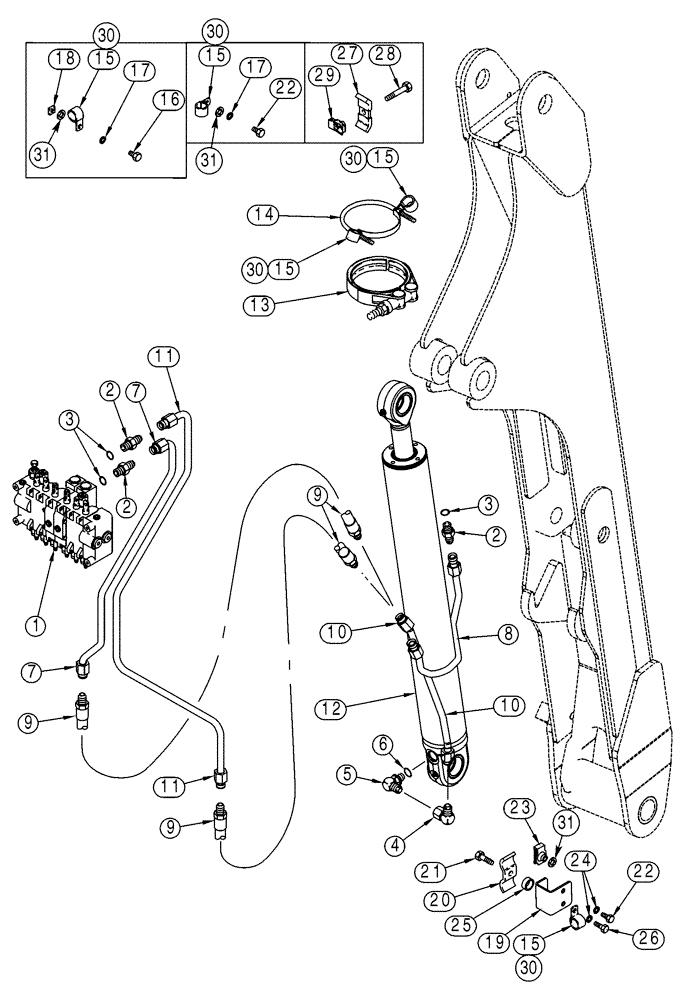

Схема запчастей Case 90XT - (08-61) - HYDRAULIC SYSTEM BACKHOE BOOM CYLINDER NORTH AMERICA, D125 BACKHOE W/ TUBES AT CONTROL VALVE (08) - HYDRAULICS
2
15
30
13
15
11
10
31
7
7
26
31
3
20
8
24
25
10
9
2
11
30
16
19
17
12
14
22
27
3
31
30
21
9
1
23
15
18
9
29
2
5
15
17
22
6
28
30
15
30
4

Артикул

Название

Примечание

Количество

1

H674500

VALVE

Backhoe, See Figures 8-56 - 8-68

1шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. Ref 3

3шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

Part of P/N 218-5059

1шт.

4

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

1шт.

5

H439269

ELBOW

Includes: Ref. 6

1шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

Part of P/N H439269

1шт.

7

256130A1

TUBE,506, 198 mm Length

Rod End

1шт.

8

256820A3

TUBE,343, 110 mm Length

Rod End

1шт.

9

256930A1

HOSE ASSY.

2300 mm (90-1/2 in)

2шт.

10

256816A3

TUBE,12 mm ID, 360 mm Length

Closed End

1шт.

11

256132A1

TUBE,675, 290 mm Length

Closed End

1шт.

12

305352A1

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 551mm Stroke

76 ID x 551 mm strk, Boom, See Figure 8-70

1шт.

13

214-2192

CLAMP,#92, 3.75"-4.06", T-Bolt

3-3/4 - 4-1/16

1шт.

14

304650A1

CLAMP

1шт.

15

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

If Used

8шт.

16

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

If Used

2шт.

17

492-11031

LOCK WASHER,5/16"

6шт.

18

224-2245

SQUARE NUT,Sq, 5/16"-18, G2

2шт.

19

255013A1

SUPPORT

2шт.

20

A12032

CLAMP

2шт.

21

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

2шт.

22

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

6шт.

23

H346650

NUT

2шт.

24

492-11031

LOCK WASHER,5/16"

2шт.

25

304086A1

SPACER

2шт.

26

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

27

H45476

CLAMP

2шт.

28

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

4шт.

29

H346650

NUT

4шт.

30

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

If Used

8шт.

31

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

6шт.
