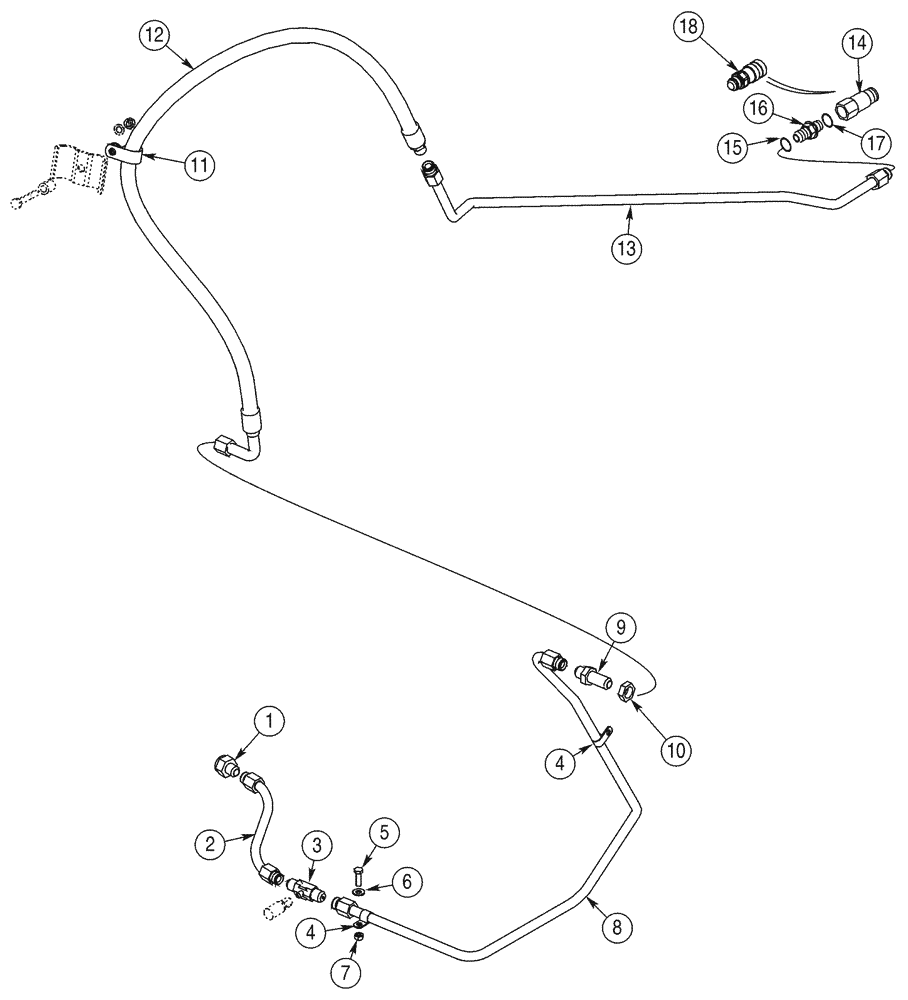

Запчасти Case 90XT (08-53) - HYDRAULICS, ATTACHMENT HIGH FLOW, GEAR, NORTH AMERICAN MODELS JAF0320050-, EUR. MODELS JAF0274262- (08) - HYDRAULICS

1

218-785

REDUCER,37 Degree, 1 1/16"-12, Fem x 7/8"-14 Male

3/4 x 5/8

1шт.

2

419406A1

TUBE

1шт.

3

218-1581

TEE,37º, 3/4"-16 x 7/16"-20, Br

For Attaching Parts, See Page 8-185, Ref. 4

1шт.

4

515-22159

CLAMP,5/8", Insul, 5/16" Bolt

2шт.

5

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

7

832-41408

NUT,M8 x 1.25, Cl 10

M8

1шт.

8

434087A2

TUBE

1шт.

9

218-675

FITTING,Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

FIT STL BULKHD .625MJ .625MJ

1шт.

10

218-1251

BHD LOCK NUT,Blkhd, 7/8"-14

1шт.

11

515-24302

CLAMP,1 3/16", Insul, 7/16" Bolt

1 ID

1шт.

12

256704A2

HOSE ASSY.

1667 mm (65-5/8 in)

1шт.

13

277356A4

PIPE

1шт.

14

393397A1

COUPLING

Male, Component Parts Not Serviced Separately, If Used

1шт.

15

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

16

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8 fl x or, Includes: Ref. 17

1шт.

17

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

Part of P/N 218-5062

1шт.

18

419615A1

COUPLING, QUICK, FEM

3/8 in, Female, Component Parts Not Serviced Separately, If Used

1шт.

6

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.
