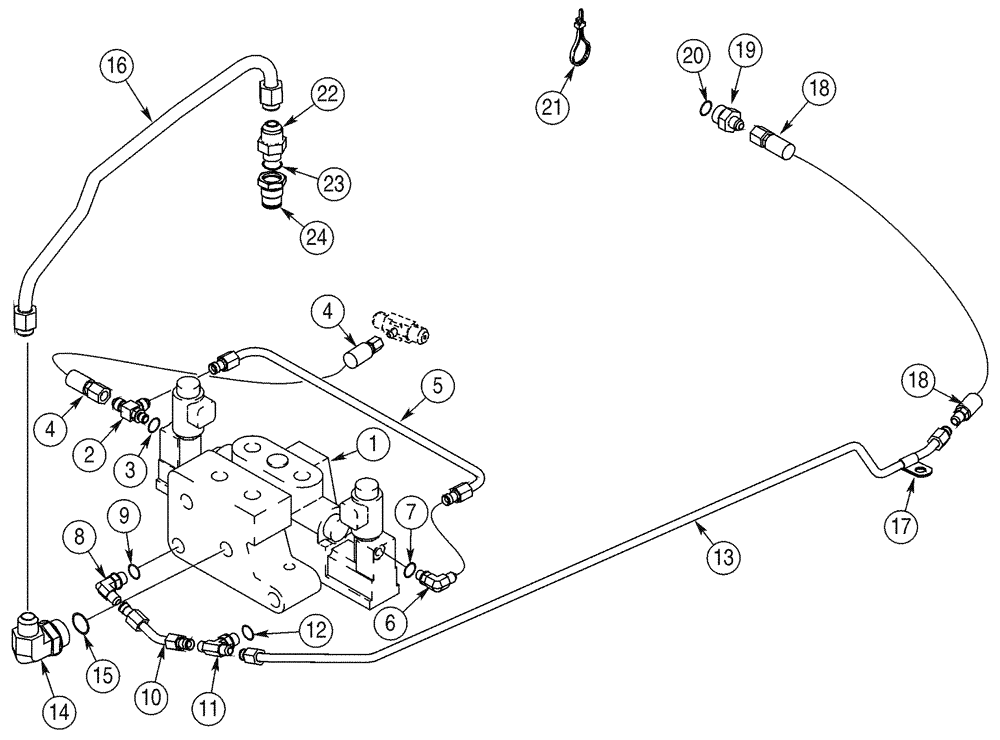

Запчасти Case 90XT (08-51) - HYDRAULICS, ATTACHMENT HIGH FLOW, GEAR, NORTH AMERICAN MODELS JAF0320050-, EUR. MODELS JAF0274262- (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
227084A1
VALVE
See Figures 8-49 - 8-52
1шт.
2
255403A1
TEE
Includes: Ref. 3
1шт.
3
237-6004
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
1шт.
Part of P/N 255403A1
1шт.
4
416706A1
HOSE ASSY.
433 mm (17 in), Pilot Return, For Attaching Parts, See Page 8-193, REF 3
1шт.
5
254835A4
TUBE,9.53 mm OD, 406, 71 mm Length
1шт.
6
218-5278
ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB
Incl. Ref 7
1шт.
7
237-6004
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
1шт.
Part of P/N 218-5278
1шт.
8
218-5105
ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB
9/16 fl x adj or, Includes: Ref. 9
1шт.
9
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
Part of P/N 218-5105
1шт.
10
236528A4
TUBE,9.53 mm OD
1шт.
11
218-5182
TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB
9/16 adj or x fl x fl, Includes: Ref. 12
1шт.
12
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
Part of P/N 218-5182
1шт.
13
430866A1
TUBE
Charge Pressure
1шт.
14
218-5130
ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1-5/16" - 12 Male ORB
Adj Or, Incl. Ref 15
1шт.
Part of P/N 218-5130
1шт.
16
432985A2
TUBE
Replaces: 432985A1
1шт.
17
515-2495
CLAMP,3/8", Insul, 7/16" Bolt
1шт.
18
416423A1
HOSE ASSY.
540 mm (21-1/4 in), Charge Pressure, High Flow
1шт.
19
218-5354
HYD CONNECTOR,9/16"-18, 37 Degree x 7/8"-14, O-Ring
Includes Ref. 20
1шт.
20
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
1шт.
Part of P/N 218-5354
1шт.
21
L18337
CABLE TIE,9.95"-12.1" lg
CABLE STRAP 15 in
2шт.
22
218-5065
HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB
Includes: Ref. 23
1шт.
23
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
1шт.
Part of P/N 218-5065
1шт.
24
417368A1
SLEEVE
1шт.
Выбрано товаров: 31
