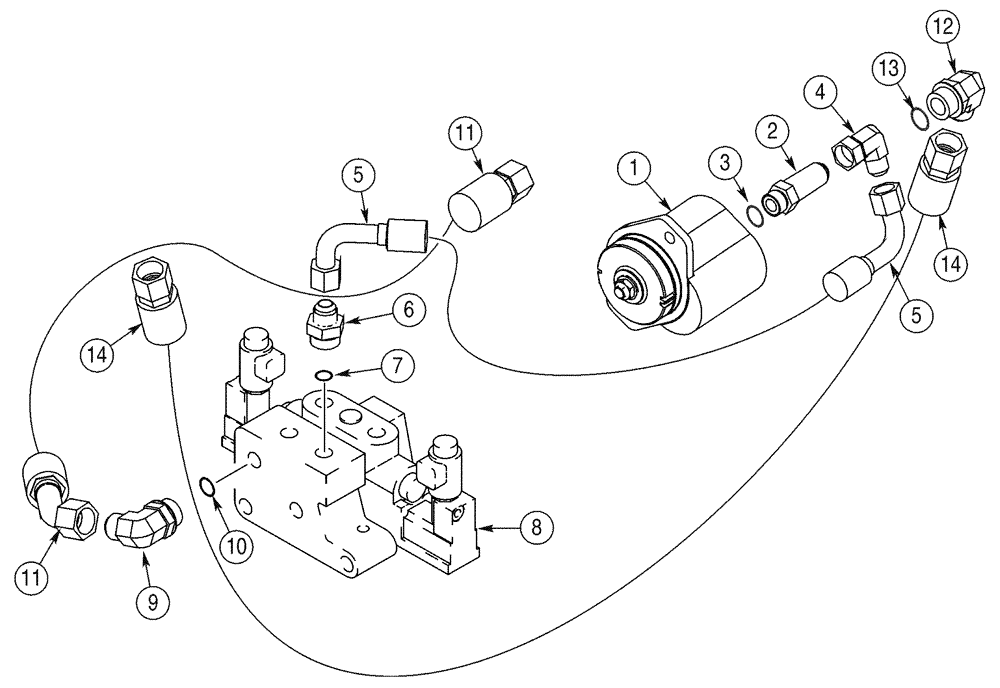

Запчасти Case 90XT (08-50) - HYDRAULICS, ATTACHMENT HIGH FLOW, GEAR, NORTH AMERICAN MODELS JAF0320050-, EUR. MODELS JAF02724262- (08) - HYDRAULICS

1

323426A1

PUMP, HYDRAULIC

See Figure 8-49, Ref.1

1шт.

2

218-5030

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

1-1/16 fl x or, Includes: Ref. 3

1шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

Part of P/N 218-5030

1шт.

4

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

1шт.

5

311262A1

HOSE ASSY.

685 mm (27 in), No Longer Available, Order 303841A2

1шт.

5

303841A2

HOSE ASSY.

660 mm (26 in)

1шт.

6

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. Ref. 7

1шт.

7

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

Part of P/N 218-5077

1шт.

8

227084A1

VALVE

See Figures 8-49 - 8-52

1шт.

9

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. Ref. 16

1шт.

10

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

11

416132A1

HOSE ASSY.

640 mm (25-3/16 in), Return Filter To Valve

1шт.

12

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. Ref. 13

1шт.

13

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

Part of P/N 218-5110

1шт.

14

430678A1

HOSE ASSY.

1375 mm (54-1/8 in)

1шт.

15

238616A1

HARNESS

See Figure 4-13, Not Illustrated

1шт.
