Запчасти Case 90XT (08-46) - HYDRAULICS, ATTACHMENT HIGH FLOW, GEAR, NORTH AMERICAN MODELS -JAF0320049, EUR. MODELS -JAF0274261 (08) - HYDRAULICS

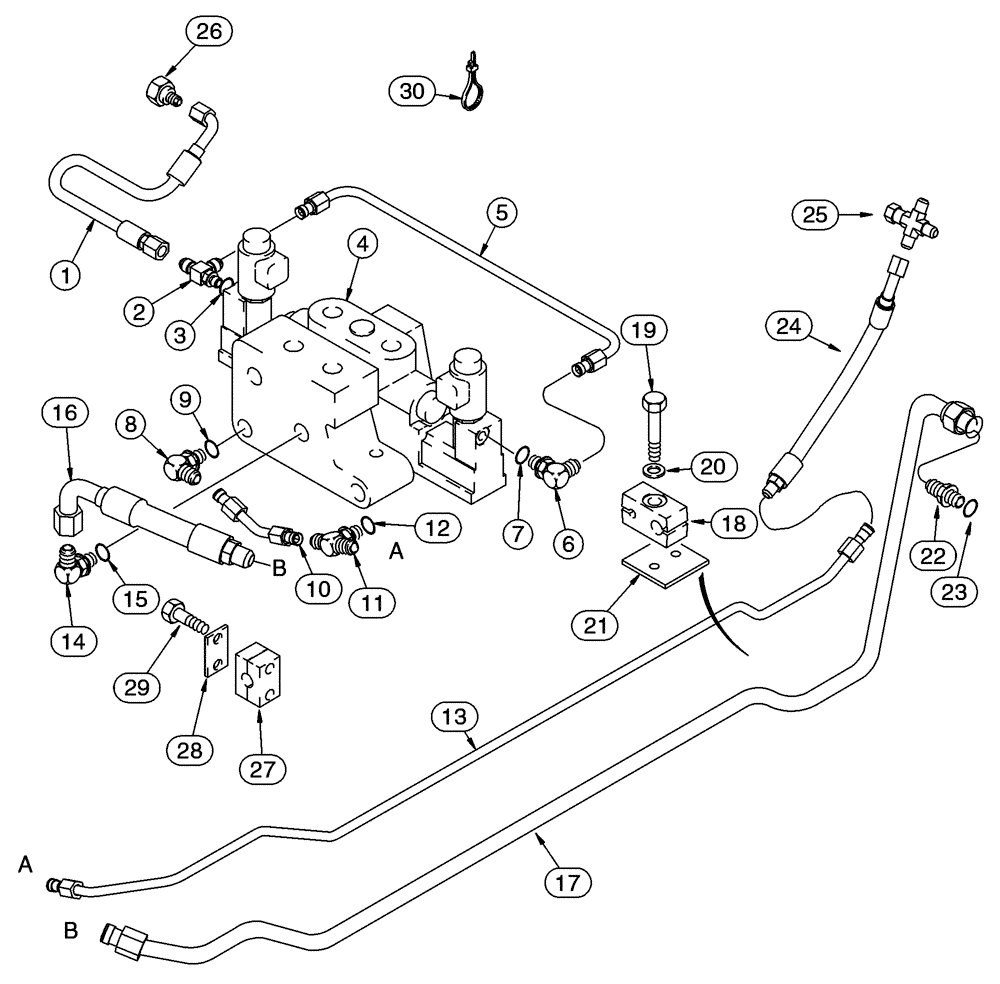

Схема запчастей Case 90XT - (08-46) - HYDRAULICS, ATTACHMENT HIGH FLOW, GEAR, NORTH AMERICAN MODELS -JAF0320049, EUR. MODELS -JAF0274261 (08) - HYDRAULICS
7
3
24
17
27
19
1
16
6
29
26
5
8
9
15
22
30
13
2
25
20
23
28
11
10
4
12
18
14
21

Артикул

Название

Примечание

Количество

1

245407A1

HOSE

400 mm (15-3/4 in)

1шт.

2

255403A1

TEE

Includes: Ref. 3

1шт.

3

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

Part of P/N 255403A1

1шт.

4

227084A1

VALVE

See Figures 8-43 - 8-47

1шт.

5

254835A3

TUBE,9.52 mm OD, 406, 71 mm Length

Replaces: 254835A2

1шт.

6

218-5278

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

Incl. Ref 7

1шт.

7

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

Part of P/N 218-5278

1шт.

8

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

9/16 fl x adj or, Includes: Ref. 9

1шт.

9

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Part of P/N 218-5105

1шт.

10

236528A3

TUBE,9.52 mm OD

Replaces: 236528A2

1шт.

11

218-5182

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

9/16 adj Or x fl x fl, Includes 12

1шт.

12

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Part of P/N 218-5182

1шт.

13

296702A1

TUBE

1шт.

14

218-5130

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1-5/16" - 12 Male ORB

Adj Or, Incl. Ref 15

1шт.

15

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

Part of P/N 218-5130

1шт.

16

278883A1

HOSE ASSY.

1шт.

17

258113A3

TUBE

1шт.

18

254831A1

SHIN

2 Piece

1шт.

19

614-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8, Full Thd

1шт.

21

281873A1

LARGE PLATE

PLATE, LARGE

1шт.

22

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8 fl x or, Includes: Ref. 23

1шт.

23

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

Part of P/N 218-5062

1шт.

24

258657A1

HYDRAULIC HOSE

370 mm (14-5/8 in), Charge Pressure

1шт.

25

284342A1

CONNECTOR, ELEC

CONNECTOR

1шт.

26

218-724

REDUCER,37º, 1 5/16"-12, Fem x 9/16"-18 Male

1-5/16 FST x 9/16 fl

1шт.

27

254830A1

CLAMP BRACKET

2 Piece

1шт.

28

279519A1

LARGE PLATE

PLATE, LARGE

1шт.

29

614-6040

BOLT,Hex, M6 x 1 x 40mm, Cl 8.8, Full Thd

2шт.

30

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

2шт.

20

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.

Выбрано товаров: 36
