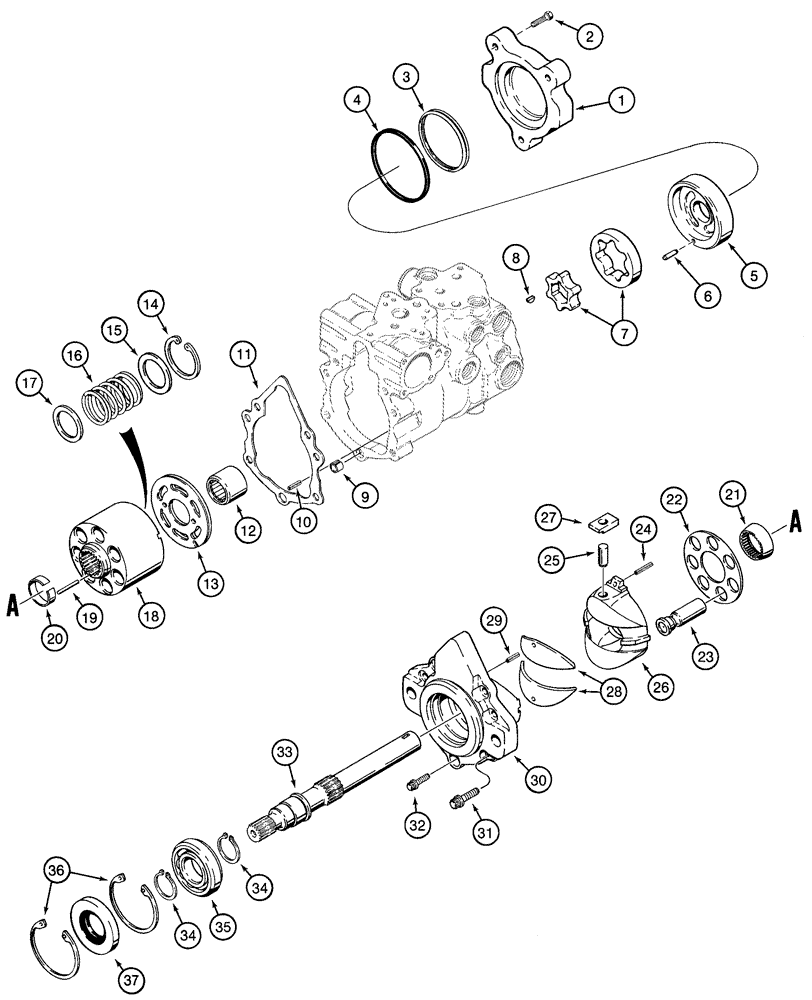

Запчасти Case 90XT (08-41) - PUMP, PISTON, CYLINDER BLOCK AND SHAFT (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
237637A3
PUMP, HYDRAULIC,46 CC
Consists Of: 1 - 27, Also Includes 8-145 - 8-149
1шт.
87298018
REMAN-HYD PUMP
Remanufactured HYDRAULIC PUMP
1шт.
87298019
CORE-HYDRAULIC PUMP
Return No, HYDRAULIC PUMP
1шт.
1
105721A1
COVER
1шт.
2
413-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5
3шт.
3
NSS
NOT SOLD SEPARAT
RING, Order 244908A1
1шт.
4
NSS
NOT SOLD SEPARAT
SEAL, Order 244908A1
1шт.
5
105717A1
COVER
1шт.
6
181680A1
PIN,3/16" OD x 13/16" L
1шт.
7
105719A1
ROTOR ASSY.
1шт.
8
126-169
WOODRUFF KEY,#212, 3/32" x3/8"
1шт.
9
N13994
SPACER
1шт.
10
138-217
LOCK PIN,3/16" OD x 7/16" L, Slotted
1шт.
11
NSS
NOT SOLD SEPARAT
SEAL, Order 244908A1
1шт.
12
1277297C1
NEEDLE BEARING
1шт.
13
128929A1
LARGE PLATE
PLATE, LARGE Inner
1шт.
115952A2
CYLINDER BLOCK
Consists Of: 14 - 23
1шт.
14
NSS
NOT SOLD SEPARAT
RING Snap
1шт.
15
115950A1
WASHER
1шт.
16
115948A1
SPRING
1шт.
17
115946A1
WASHER
1шт.
18
115944A2
CYLINDER BLOCK
1шт.
19
110873A1
PIN,2.38mm OD x 33.53mm L
3шт.
20
115943A1
SNAP RING
1шт.
21
115942A1
GUIDE
1шт.
22
NSS
NOT SOLD SEPARAT
RETAINER
1шт.
23
NSS
NOT SOLD SEPARAT
PISTON
7шт.
178632A1
COVER
Consists Of: 24 - 26
1шт.
24
38-11612
LOCK PIN,1/4" x 3/4", Slotted
1/4" x 3/4", Slotted
1шт.
Part of P/N 178632A1
1шт.
25
N13254
PIN
1шт.
Part of P/N 178632A1
1шт.
26
NSS
NOT SOLD SEPARAT
PLATE Swash
1шт.
Part of P/N 178632A1
1шт.
27
N13224
SLEEVE
1шт.
28
193488A1
BEARING LINER
2шт.
29
193494A1
PIN, ROLL
2шт.
30
H436703
COVER
Front
1шт.
31
223677A1
SCREW,Torx, 7/16"
7/16 in
6шт.
32
223680A1
SPECIAL BOLT,Torx, 3/8"
3/8 in
1шт.
33
105718A1
SHAFT
1шт.
34
100-11137
SNAP RING,#137, Ext
2шт.
35
244900A1
ROLLER BEARING
1шт.
36
103-21281
SNAP RING,66.92mm ID x 2.36mm W, Int
2шт.
37
NSS
NOT SOLD SEPARAT
SEAL, Order 244908A1
1шт.
244908A1
GASKET KIT
Consists Of: 3, 4, 10, 17 (8-145); 7, 17 - 19, 28, 29 (8-147); 31, 32 (8-151); 3, 4, 11 (8-151); 37 (8-153)
1шт.
Выбрано товаров: 46
