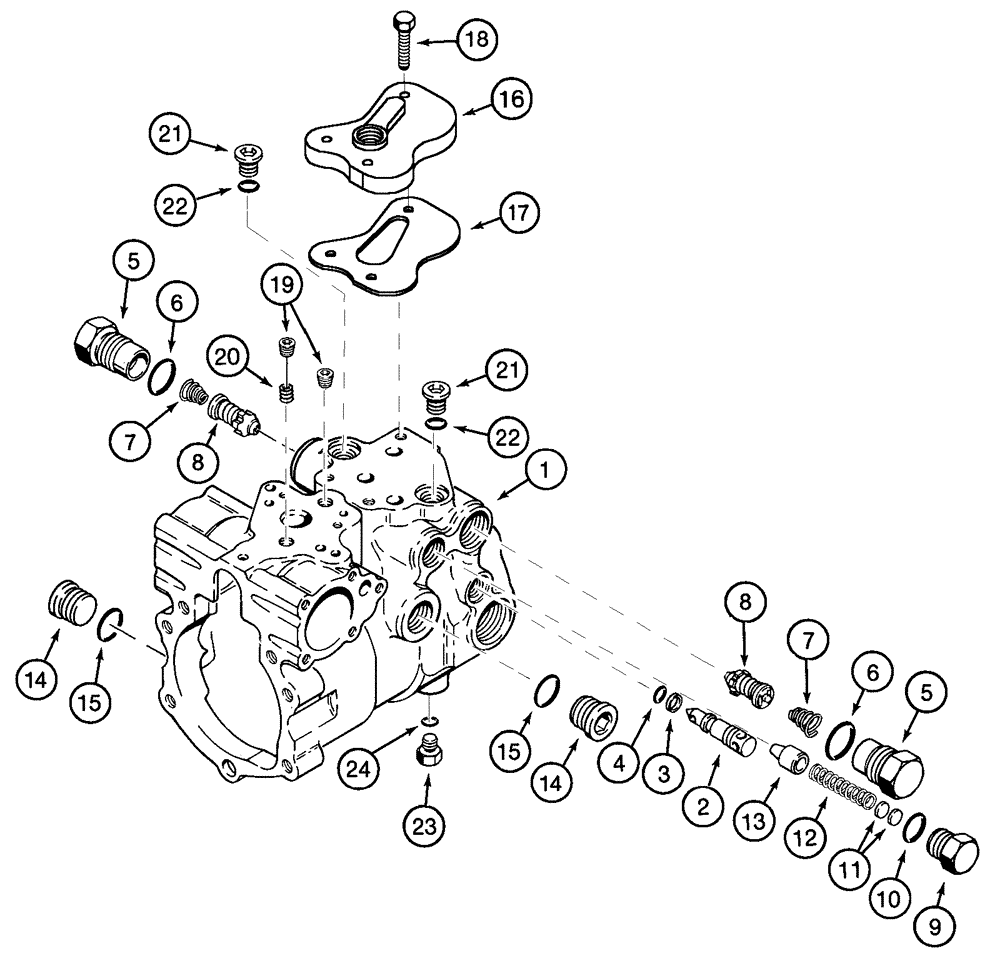

Запчасти Case 90XT (08-39) - PUMP, PISTON, HOUSING AND VALVES (08) - HYDRAULICS

237637A3

PUMP, HYDRAULIC,46 CC

Consists Of: 1 - 24, Also Includes: 8-147 - 8-153

1шт.

87298018

REMAN-HYD PUMP

Remanufactured HYDRAULIC PUMP

1шт.

87298019

CORE-HYDRAULIC PUMP

Return No, HYDRAULIC PUMP

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

2

H436099

VALVE

1шт.

3

NSS

NOT SOLD SEPARAT

RING Backup, Order 244908A1

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING, Order 244908A1

1шт.

H436101

VALVE POPPET

Consists Of: 5 - 8

2шт.

5

NSS

NOT SOLD SEPARAT

PLUG Hex

1шт.

Part of P/N H436101

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING

1шт.

Part of P/N H436101

1шт.

7

N14435

SPRING

1шт.

Part of P/N H436101

1шт.

8

NSS

NOT SOLD SEPARAT

VALVE body

1шт.

Part of P/N H436101

1шт.

9

N13266

PLUG

1шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Order 244908A1

1шт.

11

H407767

KIT

1шт.

12

244898A1

SPRING

1шт.

13

V38371

VALVE

1шт.

14

9841223

PLUG,1-1/16" - 12 ORB

Incl. Ref. 15

2шт.

15

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

Part of P/N 218-5212

1шт.

16

101462A1

ADAPTER

1шт.

17

NSS

NOT SOLD SEPARAT

SEAL, Order 244908A1

1шт.

18

326-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

3шт.

19

F23137

PLUG

2шт.

20

281252A1

PORT

1шт.

21

76349

PLUG,9/16" - 18 ORB

Incl. Ref 22

2шт.

22

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

23

9672438

PLUG,7/16" - 20 ORB

Incl. Ref. 24

1шт.

244908A1

GASKET KIT

Consists Of: 3, 4, 10, 17 (8-145); 7, 17 - 19, 28, 29 (8-147); 31, 32 (8-149); 3, 4, 11 (8-151); 37 (8-153)

1шт.

24

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

Part of P/N 218-5153

1шт.

Part of P/N 218-5155

1шт.
