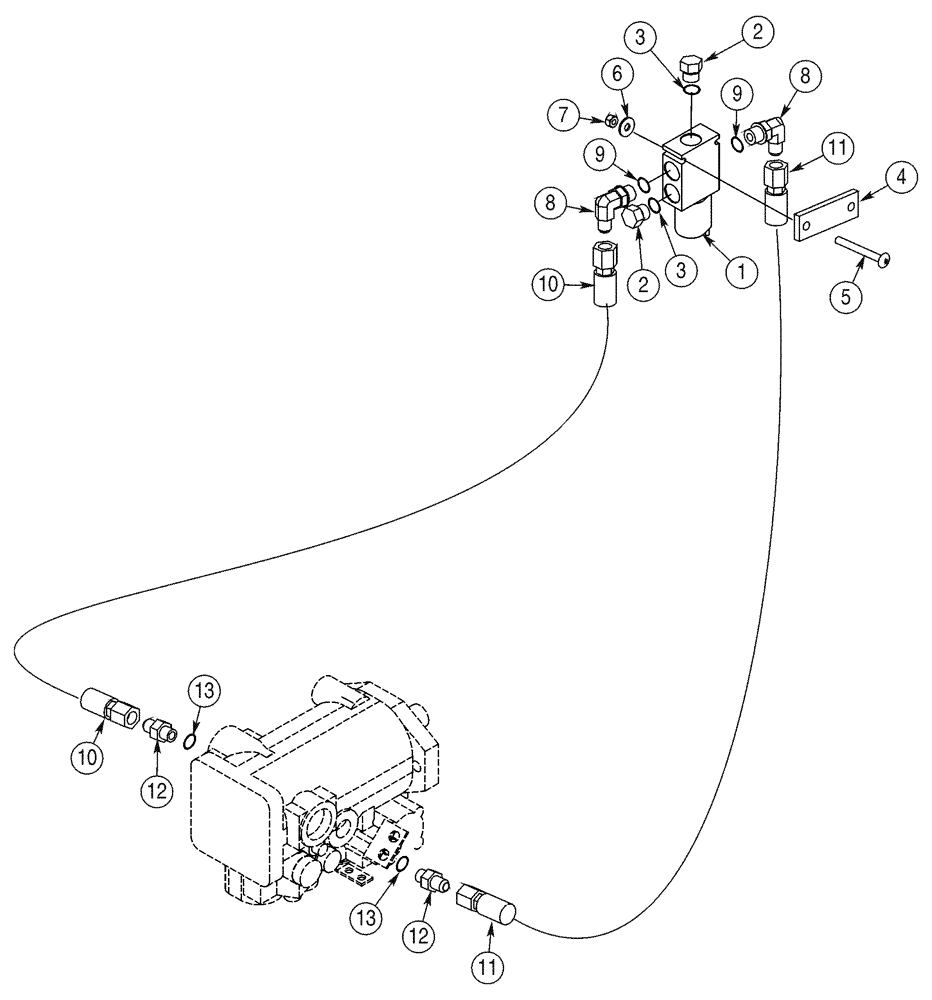

Запчасти Case 90XT (08-38) - HYDRAULICS, ATTACHMENT HIGH FLOW, PISTON, SOLENOID (08) - HYDRAULICS

1

187505C91

VALVE

See Figures 6-10 - 6-12

1шт.

2

76349

PLUG,9/16" - 18 ORB

Incl. Ref 3

2шт.

4

277781A1

LARGE PLATE

PLATE, LARGE

1шт.

5

811-6060

CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 60mm, Cl 8.8

6 x 60 mm

2шт.

6

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

2шт.

7

832-41406

NUT,M6 x 1, Cl 8

2шт.

8

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

9/16 fl x adj or, Includes: Ref. 9

2шт.

10

431524A2

HOSE ASSY.

1600 mm (63 in)

1шт.

11

431523A2

HOSE ASSY.

1300 mm (51-3/16 in)

1шт.

12

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. Ref. 13

2шт.

Note: See Page 4-45 For Solenoid Harness.

1шт.

3

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Part of P/N 218-5155

1шт.

9

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Part of P/N 218-5105

1шт.

13

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Part of P/N 218-5057

1шт.
