(08-36) - HYDRAULICS, ATTACHMENT HIGH FLOW, PISTON, COVER AND MOUNTING

Запчасти Case 90XT (08-36) - HYDRAULICS, ATTACHMENT HIGH FLOW, PISTON, COVER AND MOUNTING (08) - HYDRAULICS

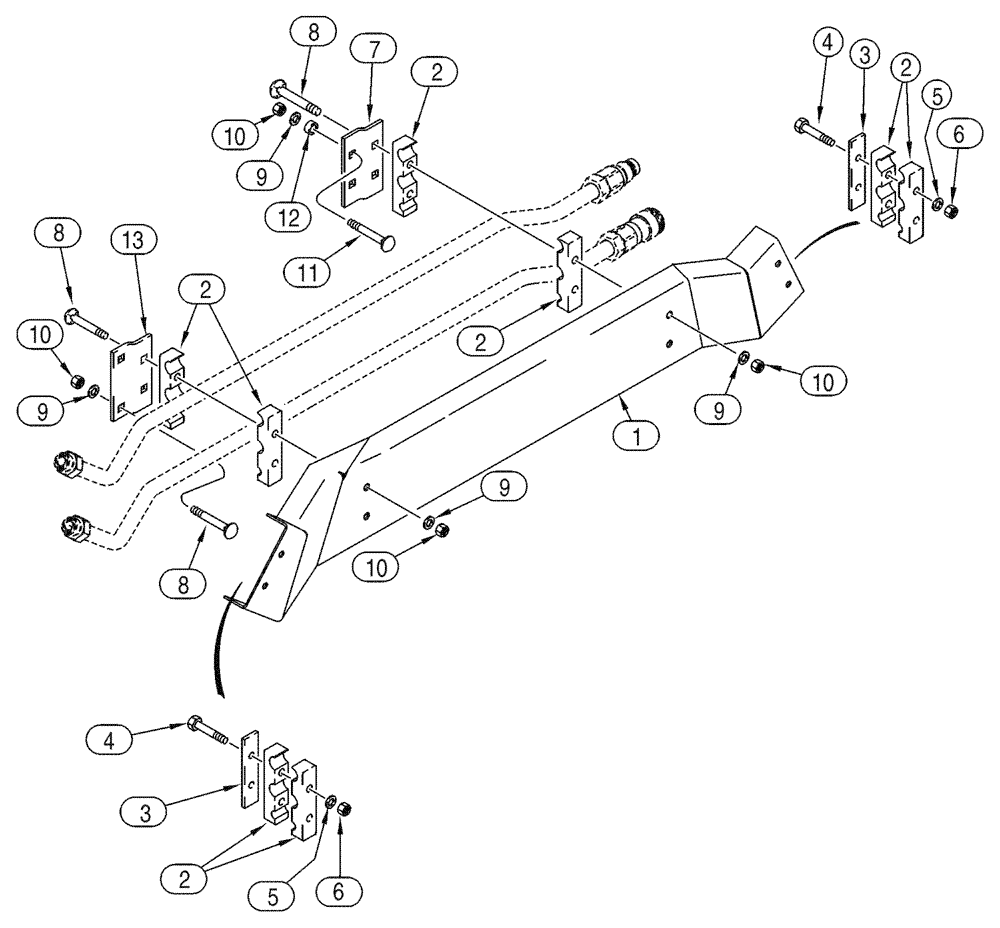

Схема запчастей Case 90XT - (08-36) - HYDRAULICS, ATTACHMENT HIGH FLOW, PISTON, COVER AND MOUNTING (08) - HYDRAULICS
8
2
2
5
10
1
10
9
9
6
2
8
10
8
9
5
10
7
3
2
3
2
6
12
13
9
11
4
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

277197A1

COVER

1шт.

2

256974A2

FIXING BRACKET

8шт.

3

256976A1

BAR

2шт.

4

814-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

4шт.

6

832-41310

NUT,M10 x 1.5, Cl 10

4шт.

7

282953A1

SUPPORT

1шт.

8

811-12080

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 80mm, Cl 8.8

6шт.

9

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

8шт.

10

832-41312

NUT,M12 x 1.75, Cl 10

8шт.

11

811-12070

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 70mm, Cl 8.8

M12 x 80

2шт.

12

610395R1

SPACER,1/2" X-Strng Pipe x 3/8"

1/2 x 3/8

2шт.

13

282954A1

SUPPORT

1шт.

5

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.
