Запчасти Case 90XT (08-32) - HYDRAULICS, ATTACHMENT HIGH FLOW, PISTON, SOLENOID (08) - HYDRAULICS

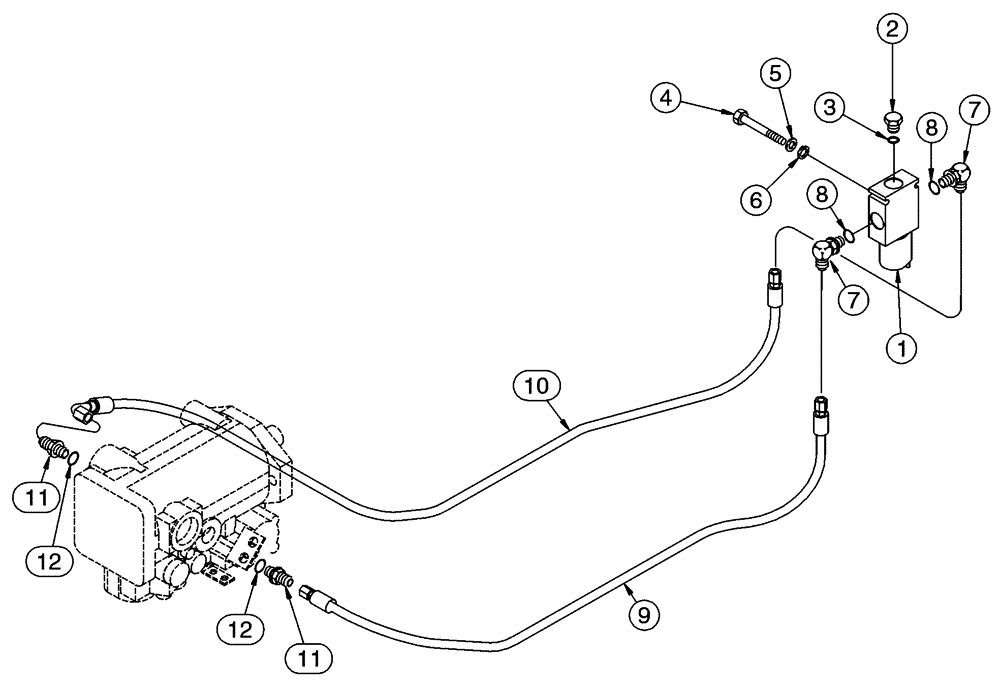

Схема запчастей Case 90XT - (08-32) - HYDRAULICS, ATTACHMENT HIGH FLOW, PISTON, SOLENOID (08) - HYDRAULICS
7
5
12
11
11
2
3
1
6
8
10
9
12
4
7
8

Артикул

Название

Примечание

Количество

1

187505C91

VALVE

See Figures 6-10 - 6-12

1шт.

2

76349

PLUG,9/16" - 18 ORB

Incl. Ref 3

2шт.

4

814-6045

BOLT,Hex, M6 x 1 x 45mm, Cl 8.8

2шт.

5

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

6

892-11006

LOCK WASHER,M6

2шт.

7

218-5283

ELBOW,90 Degree, 7/16"-20, 37 Degree x 9/16"-18, O-Ring

7/16 fl x 9/16 or, Includes: Ref. 8

2шт.

9

249787A1

HOSE

975 mm (38-3/8 in)

1шт.

10

249786A1

HOSE

1280 mm (50-1/2 in)

1шт.

11

218-5089

HYD CONNECTOR,7/16" - 20 Male JIC x 9/16" - 18 Male ORB

Incl. Ref. 12

2шт.

Note: See page 4-45 for solenoid harness.

1шт.

3

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Part of P/N 218-5155

1шт.

8

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Part of P/N 218-5283

1шт.

12

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Part of P/N 218-5089

1шт.

Выбрано товаров: 16
