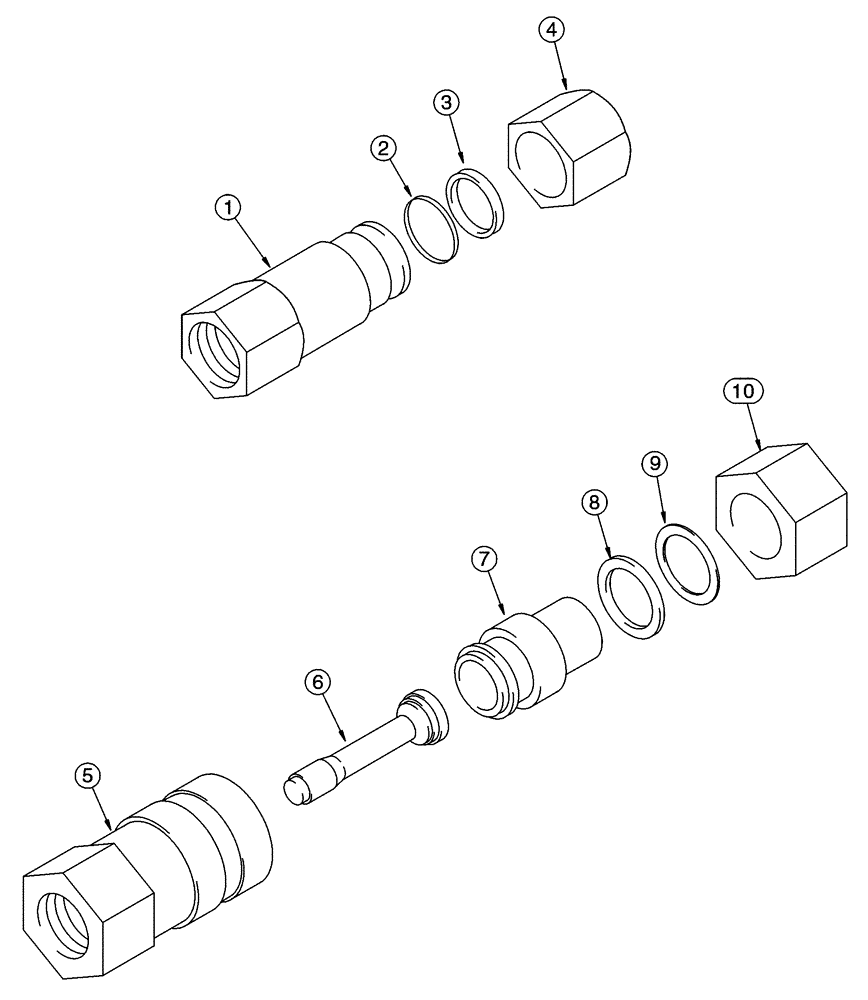

Запчасти Case 90XT (08-27) - COUPLERS HYDRAULIC, MALE, FEMALE (08) - HYDRAULICS

1

122180A1

COUPLING, BREAK AWAY

Male, Includes: Ref. 2, 3

1шт.

185786A1

SET OF PARTS

Consists Of: 2, 3, Male

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL, Male

1шт.

3

NSS

NOT SOLD SEPARAT

RING Backup, Male

1шт.

4

193259A1

PLUG

Order Separately, Male

1шт.

1

238243A1

COUPLING, BREAK AWAY

Male, Includes: Ref. 2, 3

1шт.

185786A1

SET OF PARTS

Consists Of: 2, 3, Male

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL, Male

1шт.

3

NSS

NOT SOLD SEPARAT

RING Backup, Male

1шт.

4

193259A1

PLUG

Order Separately, Male

1шт.

5

143431A1

COUPLING, QUICK, FEM

Female, Includes: Ref. 6 - 9

1шт.

185785A1

COUPLING

Consists Of: 6 - 9

1шт.

6

NSS

NOT SOLD SEPARAT

VALVE Check, Female

1шт.

7

NSS

NOT SOLD SEPARAT

SLEEVE, Female

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL, Female

1шт.

9

NSS

NOT SOLD SEPARAT

RING Backup, Female

1шт.

10

193260A1

PLUG

Order Separately, Female

1шт.
