Запчасти Case 90XT (08-26) - CYLINDER LOADER BUCKET, 2-1/2 INCH BORE, 1-1/2 INCH ROD (08) - HYDRAULICS

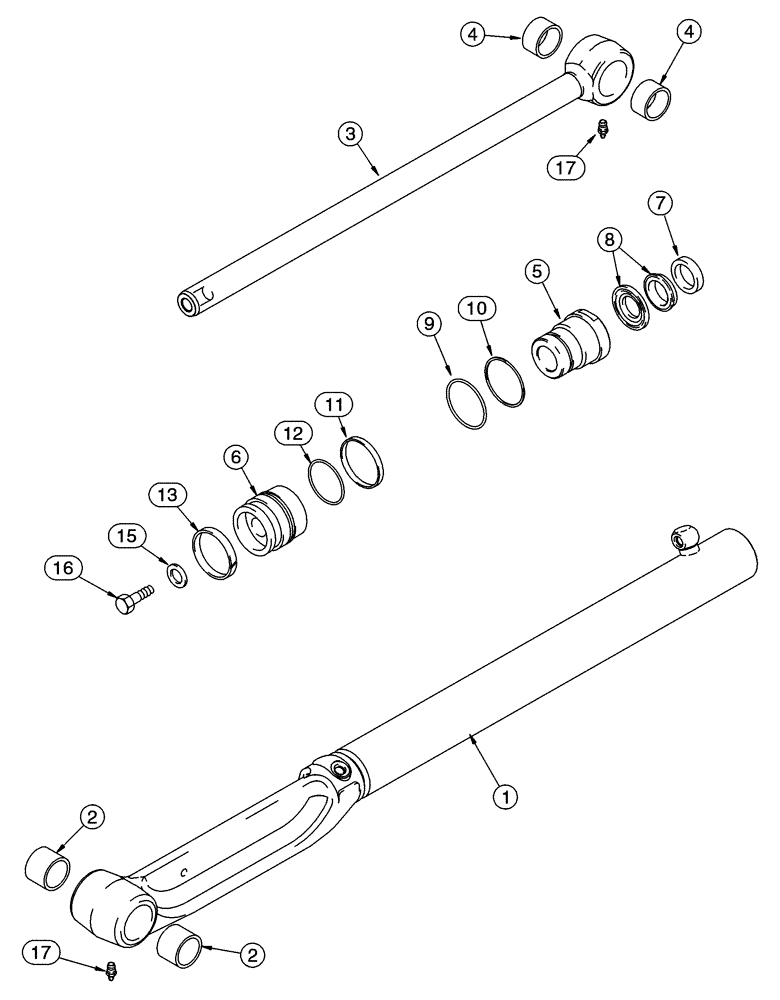

Схема запчастей Case 90XT - (08-26) - CYLINDER LOADER BUCKET, 2-1/2 INCH BORE, 1-1/2 INCH ROD (08) - HYDRAULICS
3
4
6
7
8
17
16
2
4
17
13
15
1
11
12
2
5
10
9

Артикул

Название

Примечание

Количество

327411A1

HYDRAULIC CYLINDER,38.1mm Rod, 590mm Stroke

63 ID x 590 mm strk, Loader Bucket, Consists Of: 1 - 17, If Equipped

2шт.

327411A1R

REMAN-HYD CYLINDER

90XT

2шт.

327411A1C

CORE-HYD CYLINDER

Return Number

1шт.

1

327412A1

HYD CYL SLEEVE

Includes: Ref. 2

1шт.

2

190753A1

BUSHING,38.19mm ID x 47.62mm OD x 30mm L

2шт.

Part of P/N 327412A1

1шт.

3

327745A1

PISTON ROD

Includes: Ref. 4

1шт.

4

226967A1

BUSHING,38.19mm ID x 47.62mm OD x 22mm L

2шт.

Part of P/N 327745A1

1шт.

5

117830A2

GLAND

Replaces: 117830A1

1шт.

6

S220090

PISTON

1шт.

128725A1

SEAL KIT

Consists Of: 7 - 13

1шт.

7

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

1шт.

8

1542874C1

SEAL KIT,38.1mm Rod

Not Serviced Separately, Rod and Buffer Seal, Order 128725A1

1шт.

9

238-5228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

1шт.

10

G109297

BACK-UP RING,56.9mm ID x 63.5mm OD x 1.4mm Thk

1шт.

11

G33140

RING,59.68mm ID x 64.26mm OD x 3.94mm Thk

Piston

1шт.

12

238-5226

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

Loader

1шт.

13

G100714

RING

1шт.

15

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

1шт.

16

328-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 8

Replaces 28-1232

1шт.

17

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

Выбрано товаров: 22
