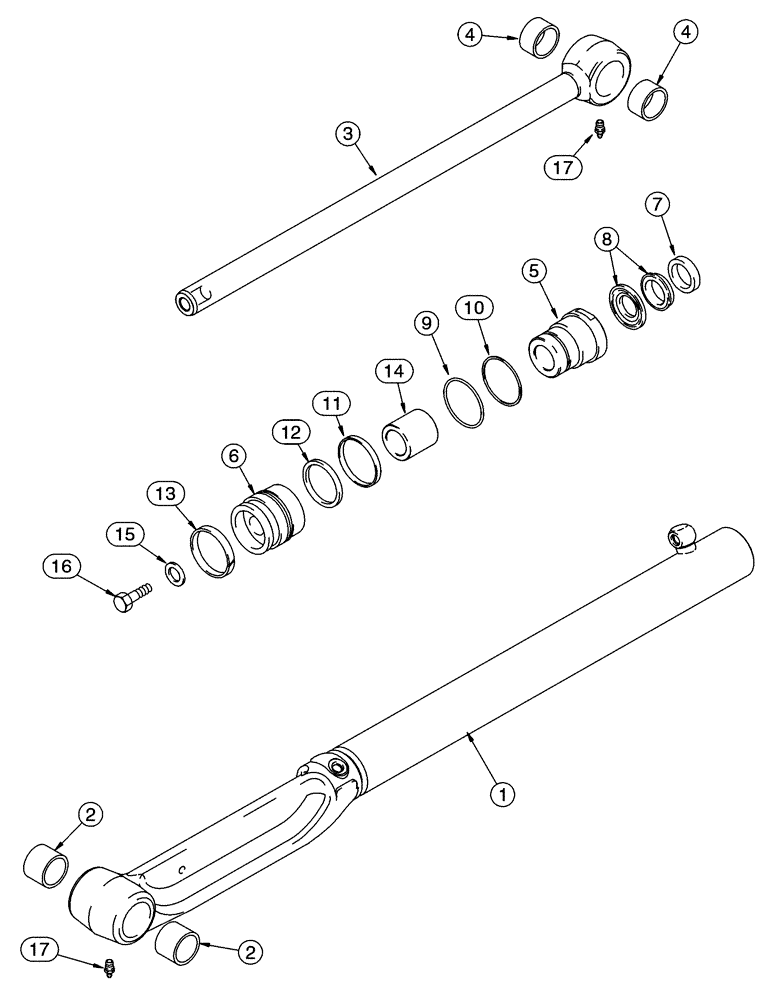

Запчасти Case 90XT (08-25) - CYLINDER LOADER BUCKET, 2-1/4 INCH BORE, 1-3/8 INCH ROD (08) - HYDRAULICS

186988A3

STEERING CYLINDER

57 ID x 530 mm strk, Loader Bucket, Consists Of: 1 - 16, If Equipped

2шт.

1

226958A1

HYD CYL SLEEVE

Includes: Ref. 2

1шт.

2

190753A1

BUSHING,38.19mm ID x 47.62mm OD x 30mm L

2шт.

Part of P/N 226958A1

1шт.

3

226963A1

PISTON ROD

Includes: Ref. 4

1шт.

4

226967A1

BUSHING,38.19mm ID x 47.62mm OD x 22mm L

2шт.

Part of P/N 226963A1

1шт.

5

226969A3

CYLINDER END CAP

Replaces: 226969A2

1шт.

6

226971A2

JACK PISTON

1шт.

231921A2

SEAL KIT

Consists Of: 7 - 13

1шт.

7

226847A1

WIPER SEAL

1шт.

8

279532A1

SEAL

Not Serviced Separately, Rod and Buffer Seal, Order 231921A2

1шт.

9

238-5226

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

1шт.

10

189122A1

BACK-UP RING

1шт.

11

190853A1

SEAL,51.71mm ID x 58.05mm OD x 3.17mm Thk

Piston

1шт.

12

190854A1

SEALING RING

SEALRING Loader

1шт.

13

190855A1

RING

1шт.

14

229350A1

SPACER

1шт.

15

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

1шт.

16

25863R1

BOLT,Hex, 3/4" - 16 x 2 1/2", Gr 8

Replaces 28-1240

1шт.

17

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.
