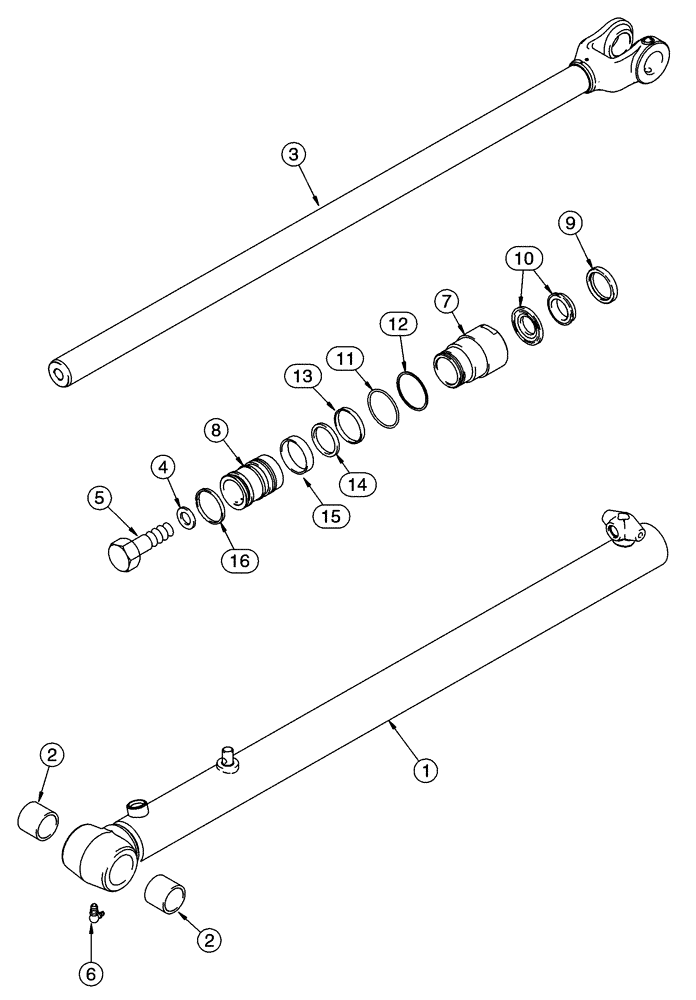

Запчасти Case 90XT (08-23) - CYLINDER LOADER LIFT (08) - HYDRAULICS

1

279527A2

HYD CYL SLEEVE

Includes: Ref. 2

1шт.

2

293052A1

RING,38.19mm ID x 47.62mm OD x 41.5mm L

2шт.

Part of P/N 279527A2

1шт.

3

329826A1

STEM

45 mm OD, Replaces: 240568A2

1шт.

4

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

1шт.

5

25863R1

BOLT,Hex, 3/4" - 16 x 2 1/2", Gr 8

Replaces 28-1240

1шт.

6

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

1шт.

7

279216A2

GLAND

1шт.

8

191074A1

JACK PISTON

1шт.

231726A3

SEAL KIT

Consists Of: 9 - 16, Replaces: 231726A2

1шт.

9

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

1шт.

10

1542875C1

SEAL KIT,44.4mm Rod

Not Serviced Separately, Rod and Buffer Seal, Order 231726A2

1шт.

11

238-5226

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

1шт.

12

189122A1

BACK-UP RING

1шт.

13

190853A1

SEAL,51.71mm ID x 58.05mm OD x 3.17mm Thk

Piston

1шт.

14

190854A1

SEALING RING

SEALRING Loader

1шт.

15

190855A1

RING

1шт.

16

191190A1

RING

Cast Iron

1шт.
