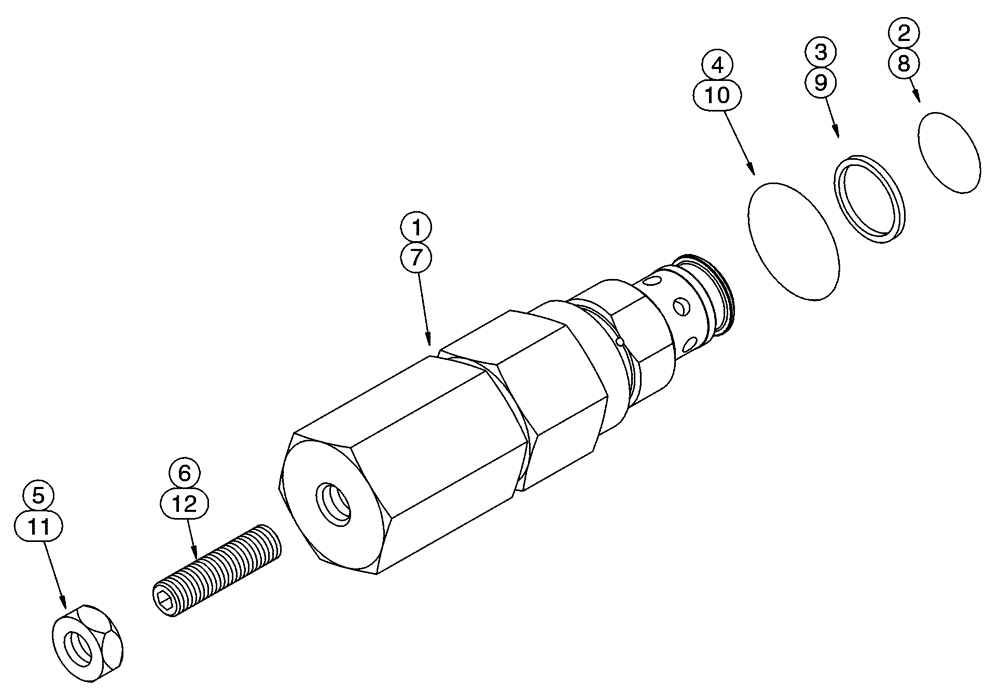

Запчасти Case 90XT (08-21) - VALVE, CONTROL VALVES, RELIEF, NORTH AMERICAN MODELS -JAF0320049, EUROPEAN MODELS -JAF0274261 (08) - HYDRAULICS

234828A1

VALVE

3100 psi, Circuit Relief, 228188A5 (2), 300950A4 (1), Consists Of: 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

VALVE Relief

1шт.

2

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

3

G108727

BACK-UP RING,13.27mm ID x 15.87mm OD x 1.32mm Thk

1шт.

4

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

5

425-155

JAM NUT,Jam, 5/16"-24, G5

1шт.

6

484-43120

SET SCREW,Hex Soc, 5/16"-24 x 1 1/4"

5/16 NF x 1-1/4

1шт.

186709A1

VALVE

3800 psi, Circuit Relief, Consists Of: 7 - 12

2шт.

7

NSS

NOT SOLD SEPARAT

VALVE Relief

1шт.

8

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

9

G108727

BACK-UP RING,13.27mm ID x 15.87mm OD x 1.32mm Thk

1шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

11

425-155

JAM NUT,Jam, 5/16"-24, G5

1шт.

12

484-43120

SET SCREW,Hex Soc, 5/16"-24 x 1 1/4"

5/16 NF x 1-1/4

1шт.

249533A1

SEAL KIT

Seal, For List Of Components, See Page(s) 8-71, 8-75

1шт.
