Запчасти Case 90XT (08-18) - VALVE ASSEMBLY, CONTROL LOADER, NORTH AMERICAN MODELS JAF0320050-, EUROPEAN MODELS JAF0274262- (08) - HYDRAULICS

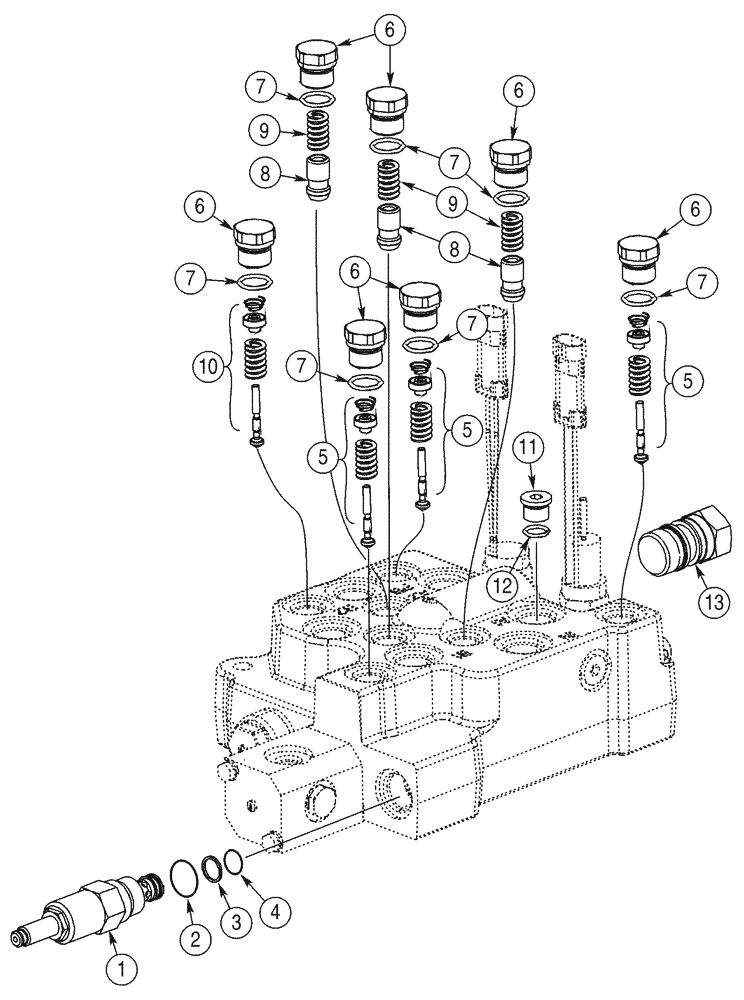

Схема запчастей Case 90XT - (08-18) - VALVE ASSEMBLY, CONTROL LOADER, NORTH AMERICAN MODELS JAF0320050-, EUROPEAN MODELS JAF0274262- (08) - HYDRAULICS
12
5
4
8
7
6
5
7
6
5
3
9
7
7
8
6
7
10
9
1
11
7
13
6
6
2

Артикул

Название

Примечание

Количество

409062A1

VALVE

Loader, Two Spool, Consists Of: 1 - 13, Also Includes: 8-17 - 8-18, No Longer Available, Order 409062A2

1шт.

409062A2

VALVE

Loader, Two Spool, Consists Of: 1 - 13, Also Includes: 8-17 - 8-18

1шт.

87431787

VALVE

Control; Incl. 1 - 13; Replaces 409062A2

1шт.

129842A2

VALVE, PRESSURE RELI

EF Consists Of: 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

BODY

1шт.

G110098

KIT

Seal, Consists Of: 2 - 4

1шт.

2

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

3

G107870

BACK-UP RING,Square, 1.32mm Thk x 12.73mm ID

1шт.

4

238-8014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 8, 90 Duro

1шт.

5

383088A2

VALVE, PRESSURE RELI

EF 3800 psi, Component Parts Not Serviced Separately

3шт.

409025A1

PLUG,Hex, 3/4" - 16 ORB

Consists Of: 6, 7

7шт.

6

NSS

NOT SOLD SEPARAT

BODY

1шт.

Part of P/N 409025A1

1шт.

7

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

Part of P/N 409025A1

1шт.

8

392956A1

VALVE POPPET

3шт.

9

G34458

SPRING,Compression, 5.08mm OD x 27.56mm L

3шт.

10

383121A2

VALVE, PRESSURE RELI

EF 3100 psi, Component Parts Not Serviced Separately

1шт.

11

9625178

PLUG,9/16" - 18 ORB

Incl. Ref. 12

1шт.

13

411343A1

PLUG

Counterbalance Valve, Includes: 396978A1

1шт.

396978A1

SEAL KIT

1шт.

12

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Part of P/N 218-5209

1шт.

Выбрано товаров: 23
