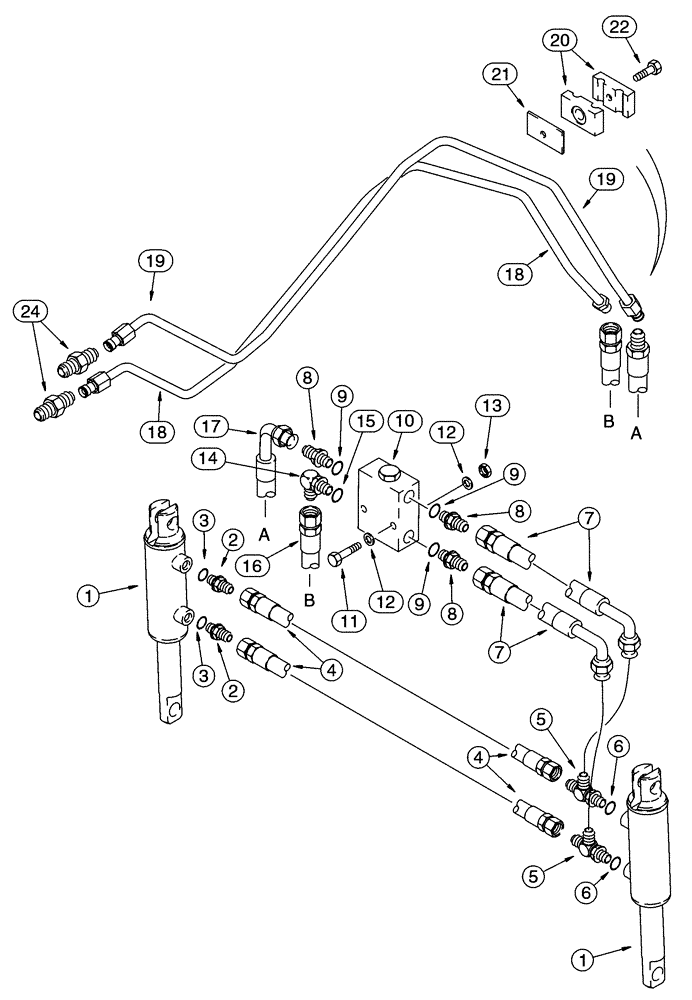

Запчасти Case 90XT (08-12) - HYDRAULICS COUPLER SYSTEM (08) - HYDRAULICS

1

255866A1

CYLINDER ASSY.

56 mm strk, So Service Parts

2шт.

2

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

Incl. Ref. 3, For Attaching Parts, See Figure 8-9, Ref. 1, 2

2шт.

3

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

Part of P/N 218-5053

1шт.

4

257764A1

HYDRAULIC HOSE

638 mm (25-1/8 in)

2шт.

5

218-5289

TEE,7/16" - 20 Male JIC x 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

Includes: Ref. 6

2шт.

6

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

Part of P/N 218-5289

1шт.

7

275452A2

HOSE ASSY.

500 mm (19-3/4 in)

2шт.

8

218-5089

HYD CONNECTOR,7/16" - 20 Male JIC x 9/16" - 18 Male ORB

Incl. Ref. 9

3шт.

9

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Part of P/N 218-5089

1шт.

10

257794A1

VALVE

Includes: Ref. 10A, 10B

1шт.

10a

130812A1

PISTON

Not Illustrated

1шт.

10b

283289A1

VALVE

Not Illustrated

1шт.

11

814-6050

BOLT,Hex, M6 x 1 x 50mm, Cl 8.8

2шт.

12

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

13

832-41306

NUT,M6 x 1, Cl 10

2шт.

14

218-5283

ELBOW,90 Degree, 7/16"-20, 37 Degree x 9/16"-18, O-Ring

7/16 fl x 9/16 or, Includes: Ref. 15

1шт.

15

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Part of P/N 218-5283

1шт.

16

283123A1

HOSE,775.00 mm

1шт.

17

275451A1

HOSE ASSY.

752 mm (29-5/8 in)

1шт.

18

283461A1

TUBE,624, 205 mm Length

For Attaching Parts, See Figure 8-9, Ref. 2

1шт.

19

283452A1

TUBE,595, 284 mm Length

For Attaching Parts, See Figure 8-9, Ref. 1

1шт.

20

1546024C1

CLAMP

2 Piece

1шт.

21

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

PLATE,SPACER

1шт.

22

814-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

1шт.

24

218-734

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

9/16 fl

2шт.
