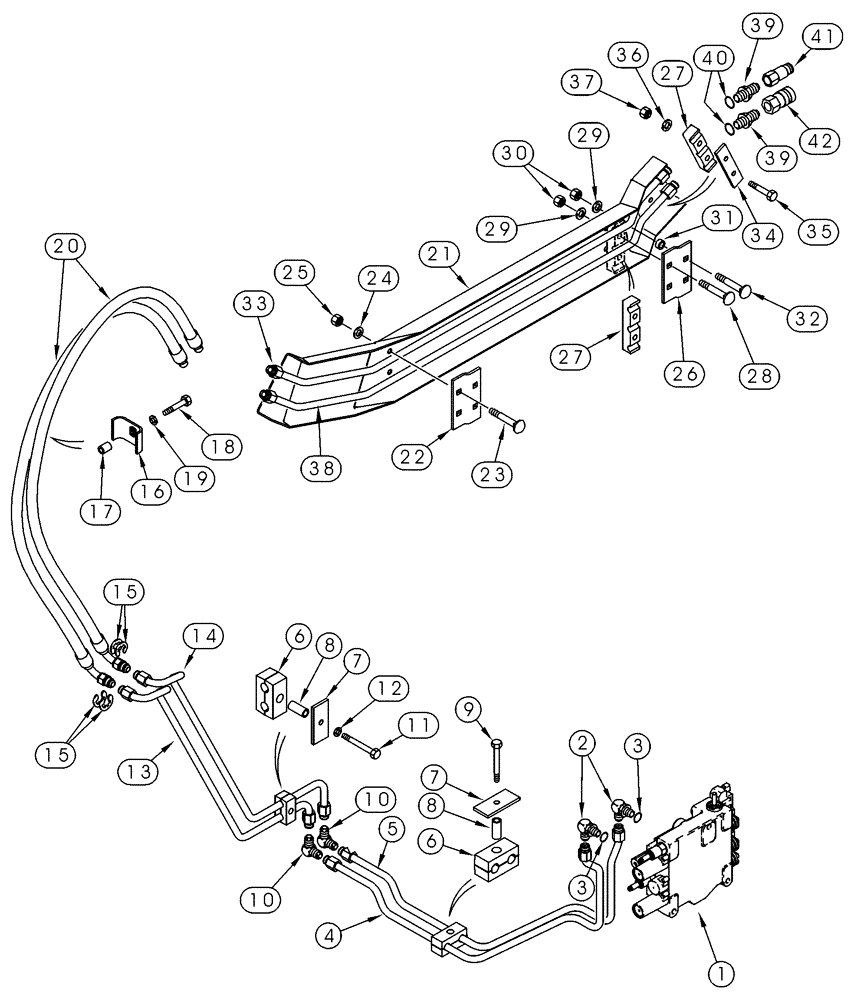

Запчасти Case 90XT (08-06) - HYDRAULICS AUXILIARY SYSTEM, NORTH AMERICAN MODELS -JAF0320049, EUROPEAN MODELS -JAF0274261 (08) - HYDRAULICS

1

300950A4

VALVE

Replaces: 228188A2, A3, A4; 300950A2, A3, See Figures 8-15, 8-16, 8-19

1шт.

2

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

7/8 fl x adj or, Incl. Ref. 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

Part of P/N 218-5107

1шт.

4

235135A5

TUBE

Replaces: 235135A4

1шт.

5

235133A5

TUBE

Replaces: 235133A4

1шт.

6

257857A1

CLAMP

2 Piece

2шт.

7

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

PLATE,SPACER

2шт.

8

259905A1

SPACER

2шт.

9

814-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

1шт.

10

218-475

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male JIC

7/8 fl x fl

2шт.

11

814-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

1шт.

13

235153A4

TUBE

Replaces: 235153A3

1шт.

14

235155A4

TUBE

Replaces: 235155A3

1шт.

15

103-3398

SNAP RING,#X98, .822" Dia, E-Type

4шт.

16

277730A1

CLAMP

1шт.

17

256690A1

SPACER

1шт.

18

814-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8

1шт.

20

257587A2

HOSE ASSY.,15.88mm ID x 1735mm L

1735 mm (68-3/8 in)

2шт.

21

277527A1

PROTECTOR

1шт.

22

282954A1

SUPPORT

Rear

1шт.

23

811-12080

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 80mm, Cl 8.8

2шт.

24

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

25

832-41312

NUT,M12 x 1.75, Cl 10

2шт.

26

282953A1

SUPPORT

Front

1шт.

27

277089A1

CLAMP

8шт.

28

811-12080

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 80mm, Cl 8.8

4шт.

29

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

6шт.

30

832-41312

NUT,M12 x 1.75, Cl 10

6шт.

31

610395R1

SPACER,1/2" X-Strng Pipe x 3/8"

1/2 x 3/8

2шт.

32

811-12070

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 70mm, Cl 8.8

M12 x 80

2шт.

33

277530A3

HYD TUBE,1290, 96 mm Length

Upper

1шт.

34

256976A1

BAR

2шт.

35

814-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

4шт.

37

832-41310

NUT,M10 x 1.5, Cl 10

4шт.

38

277532A3

HYD TUBE,1335, 96 mm Length

Lower

1шт.

39

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8 fl x or, Includes: Ref. 40

2шт.

40

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

Part of P/N 218-5062

1шт.

41

122180A1

COUPLING, BREAK AWAY

Male, See Figure 8-27

1шт.

42

143431A1

COUPLING, QUICK, FEM

Female, See Figure 8-27

1шт.

12

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

19

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

36

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.
