Запчасти Case 90XT (08-04) - HYDRAULICS LOADER BUCKET, NORTH AMERICAN MODELS -JAF0320049, EUROPEAN MODELS -JAF0274261 (08) - HYDRAULICS

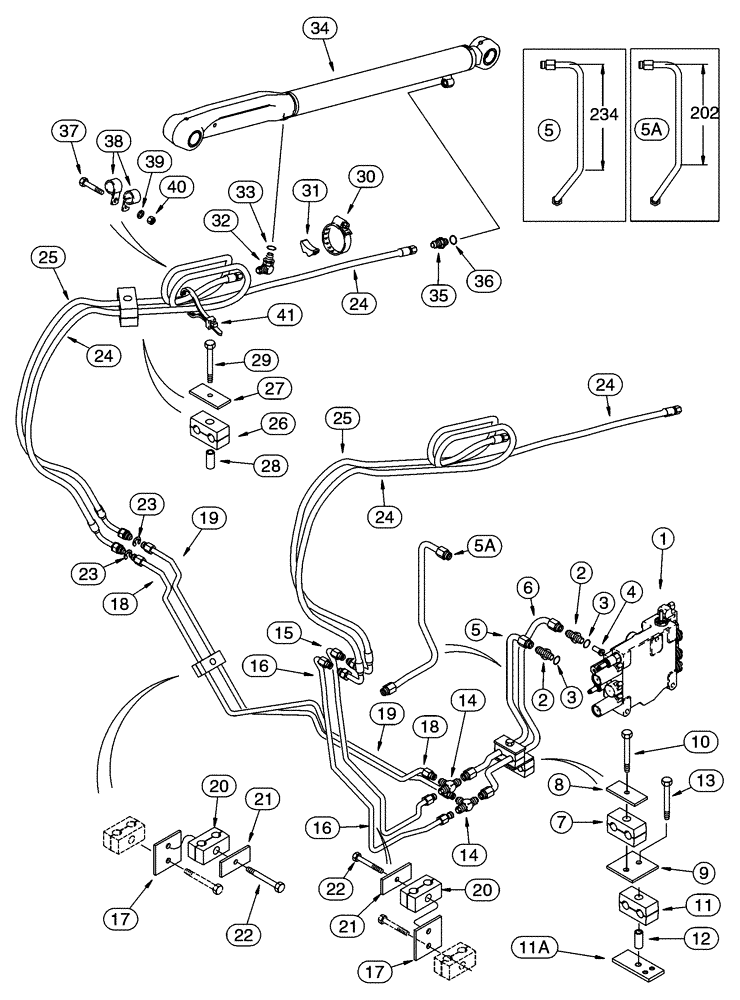

Схема запчастей Case 90XT - (08-04) - HYDRAULICS LOADER BUCKET, NORTH AMERICAN MODELS -JAF0320049, EUROPEAN MODELS -JAF0274261 (08) - HYDRAULICS
11a
17
28
2
22
41
35
24
13
26
19
38
24
4
2
21
16
5
15
9
10
21
29
17
16
8
11
3
6
25
22
1
40
33
27
24
37
3
19
39
36
20
5a
24
18
25
5
31
12
20
7
32
30
14
23
23
14
5a
18
34

Артикул

Название

Примечание

Количество

1

300950A4

VALVE

Replaces: 228188A2, A3, A4; 300950A2, A3, See Figures 8-16, 8-19

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8 fl x or, Includes: Ref. 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

Part of P/N 218-5062

1шт.

4

297912A2

PORT

156 in Orifice

1шт.

5

235124A3

TUBE

If Equipped, No Longer Available, Order Ref. 4A, 235130A4 (8-3), Ref. 5A, 235124A4 (8-23)

1шт.

5a

235124A4

TUBE

1шт.

6

235122A4

TUBE

Replaces: 235122A3

1шт.

7

1546026C1

CLAMP

1шт.

8

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

PLATE,SPACER Top

1шт.

9

281873A1

LARGE PLATE

PLATE, LARGE

1шт.

10

814-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

1шт.

11

257857A1

CLAMP

2 Piece

1шт.

11a

194739A1

LEDGER PLATE

Lower

1шт.

12

259905A1

SPACER

1шт.

13

814-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

1шт.

14

218-1583

TEE,37 Degree, 3/4"-16 x 7/8"-14, Run

2шт.

15

235137A4

TUBE

Right Hand, Replaces: 235137A3

1шт.

16

235139A4

TUBE

Right Hand, Replaces: 235139A3

1шт.

17

281873A1

LARGE PLATE

PLATE, LARGE

2шт.

18

235145A4

TUBE

Left Hand, Replaces: 235145A3

1шт.

19

235147A4

TUBE

Left Hand, Replaces: 235147A3

1шт.

20

1546025C1

CLAMP

2 Piece

2шт.

21

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

PLATE,SPACER

2шт.

22

814-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

2шт.

23

103-3398

SNAP RING,#X98, .822" Dia, E-Type

8шт.

24

257440A2

HOSE ASSY.,9.53mm ID x 2950mm L

2950 mm (116-1/4 in)

2шт.

25

257441A2

HOSE ASSY.,9.53mm ID x 2300mm L

2300 mm (90-5/8 in)

2шт.

26

257857A1

CLAMP

2 Piece

2шт.

27

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

PLATE,SPACER

2шт.

28

293891A1

SPACER

2шт.

29

814-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

2шт.

30

214-1452

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

2шт.

31

D38648

BLOCK

2шт.

32

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

9/16 fl x adj or, Includes: Ref. 33

2шт.

34

REF

INSTRUCTION

CYLINDER, See Figures 8-25, 8-26

2шт.

35

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. Ref. 36

2шт.

37

814-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

2шт.

38

515-23222

CLAMP,7/8", Insul, 3/8" Bolt

4шт.

39

86624185

WASHER,8.8mm ID x 17.5mm OD x 2mm Thk

9 x 17 x 1.6 mm

2шт.

40

832-41308

NUT,M8 x 1.25, Cl 10

2шт.

41

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

4шт.

33

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Part of P/N 218-5105

1шт.

36

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Part of P/N 218-5057

1шт.
