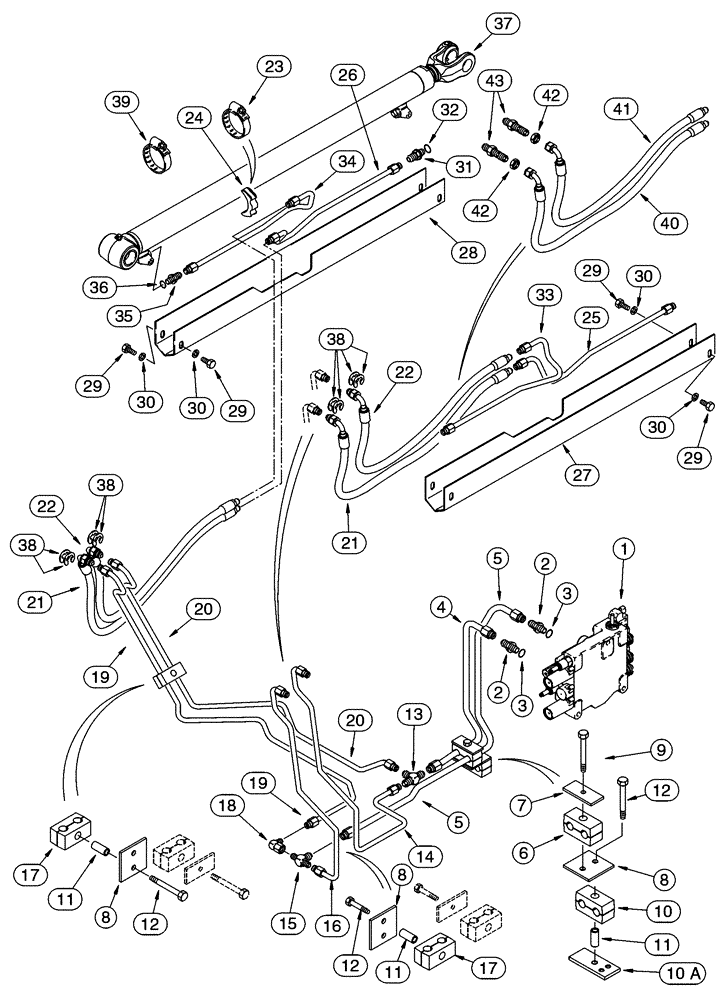

Запчасти Case 90XT (08-02) - HYDRAULICS LOADER LIFT, W/ CYLINDER, W/O POST, N.A. MODELS -JAF0320049, EUR. MODELS -JAF0274261 (08) - HYDRAULICS

1

300950A4

VALVE

Replaces: 228188A2, A3, A4; 300950A2, A3, See Figures 8-15, 8-16, 8-19

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8 fl x or, Includes: Ref. 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

235130A4

TUBE

1шт.

5

235127A4

TUBE

Replaces: 235127A3

1шт.

6

1546026C1

CLAMP

1шт.

7

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

PLATE,SPACER Top

1шт.

8

281873A1

LARGE PLATE

PLATE, LARGE

3шт.

9

814-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

1шт.

10

257857A1

CLAMP

2 Piece

1шт.

10a

194739A1

LEDGER PLATE

lower

1шт.

11

259905A1

SPACER

3шт.

12

814-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

3шт.

13

218-1583

TEE,37 Degree, 3/4"-16 x 7/8"-14, Run

1шт.

14

235141A4

TUBE

Right Hand, Replaces: 235141A3

1шт.

15

218-1584

TEE,37 Degree, 3/4"-16 x 7/8"-14, Br

1шт.

16

235143A4

TUBE

Right Hand, Replaces: 235143A3

1шт.

17

257919A1

CLAMP BRACKET

2 Piece

2шт.

18

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

1шт.

19

235151A5

TUBE

Left Hand, Replaces: 235151A4

1шт.

20

235149A4

TUBE

Left Hand, Replaces: 235149A3

1шт.

21

257320A2

HOSE ASSY.

910 mm (35-7/8 in), Male, If Equipped

2шт.

22

257319A2

HOSE ASSY.

850 mm (33-1/2 in), Male, If Equipped

2шт.

23

214-1452

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

2шт.

24

255245A1

BLOCK

2шт.

25

257310A4

TUBE,570, 51 mm Length

Right Hand

1шт.

26

257315A4

TUBE,570, 51 mm Length

Left Hand

1шт.

27

301350A1

COVER

Right Hand, Production Only, Order 27A

1шт.

27a

319395A1

PROTECTOR

Right Hand, Service Replacement, Not Illustrated

1шт.

28

301351A1

COVER

Left Hand, Production Only, Order 28A

1шт.

28a

319394A1

PROTECTOR

Right Hand, Service Replacement, Not Illustrated

1шт.

29

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

8шт.

30

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

11 x 24 x 3 mm

8шт.

31

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. Ref 32

2шт.

32

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

33

301346A1

TUBE

Right Hand

1шт.

34

301349A1

TUBE

Left Hand

1шт.

35

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. Ref 36

2шт.

36

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

37

308258A2

CYLINDER ASSY.,Double Acting, 44.4mm Rod, 970mm Stroke

57 ID x 970 mm strk, Replaces: 308258A1, See Figure 8-24

2шт.

37

308258A2R

REMAN-HYD CYLINDER

90XT

2шт.

37

308258A2C

REMAN-HYD CYLINDER

Return Number

2шт.

38

103-3398

SNAP RING,#X98, .822" Dia, E-Type

8шт.

39

214-1452

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

2шт.

40

321513A2

HOSE ASSY.,12.7mm ID x 910mm L

910 mm (35-7/8 in), Female, If Equipped

2шт.

41

321522A2

HOSE ASSY.,12.7mm ID x 850mm L

850 mm (33-1/2 in), Female, If Equipped

2шт.

42

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

Used with 40, 41

4шт.

43

218-674

FITTING,Blkhd, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

3/4 fl x blkhd fl, Used With 40, 41

4шт.
