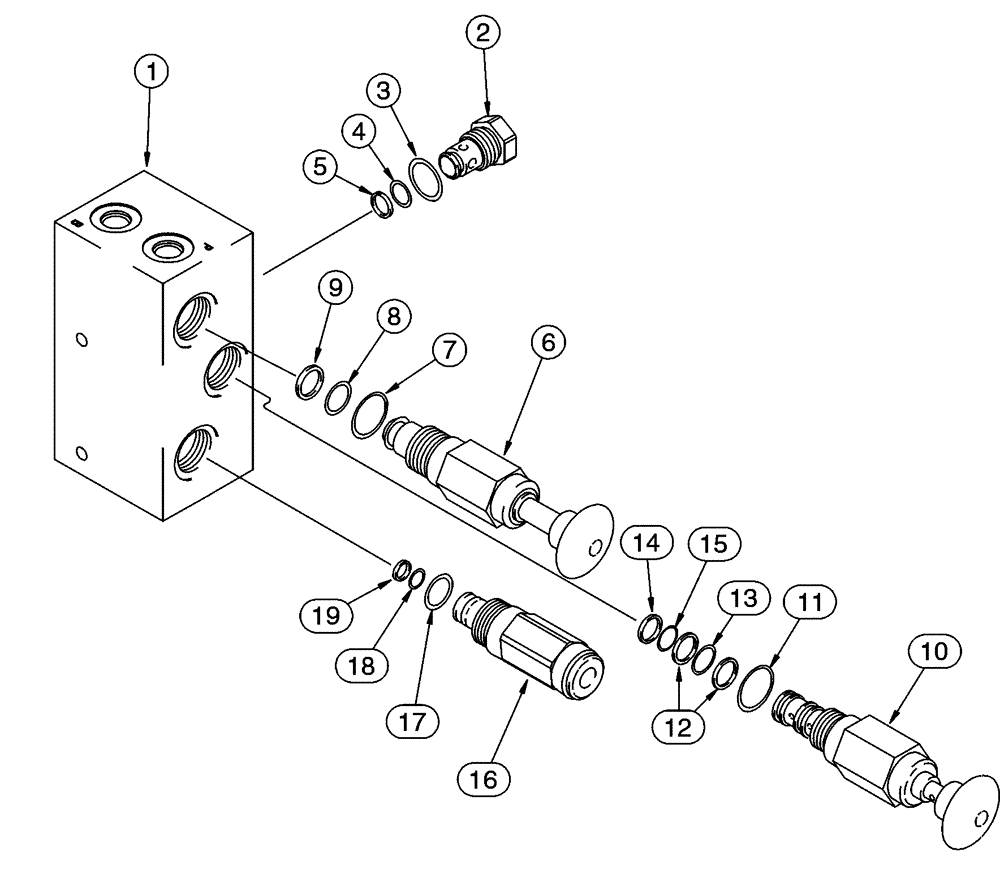

Запчасти Case 90XT (07-06) - PUMP BRAKE (07) - BRAKES
№
Артикул
Название
Примечание
Количество
281117A2
PUMP
Consists Of: 1 - 19
1шт.
1
NSS
NOT SOLD SEPARAT
BODY
1шт.
120459A1
VALVE,3/4" - 16
Consists Of: 2 - 5
1шт.
2
NSS
NOT SOLD SEPARAT
VALVE Check
1шт.
1542831C1
SEAL KIT
Consists Of: 3 - 5
1шт.
3
NSS
NOT SOLD SEPARAT
O-RING
1шт.
4
NSS
NOT SOLD SEPARAT
O-RING
1шт.
5
NSS
NOT SOLD SEPARAT
RING Backup
1шт.
295299A1
PUMP
Hand Operated, Consists Of: 6 - 9
1шт.
6
NSS
NOT SOLD SEPARAT
PUMP
1шт.
1542830C2
SEAL KIT
Replaces 295300A1, Consists of 7 - 9
1шт.
7
NSS
NOT SOLD SEPARAT
O-RING
1шт.
8
NSS
NOT SOLD SEPARAT
O-RING
1шт.
9
NSS
NOT SOLD SEPARAT
RING Backup
1шт.
295301A1
BY-PASS VALVE
Consists Of: 10 - 15
1шт.
10
NSS
NOT SOLD SEPARAT
VALVE By-Pass
1шт.
295302A1
SEAL KIT
Consists Of: 11 - 15
1шт.
11
NSS
NOT SOLD SEPARAT
O-RING
1шт.
12
NSS
NOT SOLD SEPARAT
RING Backup
2шт.
13
NSS
NOT SOLD SEPARAT
O-RING
1шт.
14
NSS
NOT SOLD SEPARAT
RING Backup
1шт.
15
NSS
NOT SOLD SEPARAT
O-RING
1шт.
295303A1
VALVE POPPET
Consists Of: 16 - 19
1шт.
16
NSS
NOT SOLD SEPARAT
VALVE Relief
1шт.
1542831C1
SEAL KIT
Consists Of: 17 - 19
1шт.
17
NSS
NOT SOLD SEPARAT
O-RING
1шт.
18
NSS
NOT SOLD SEPARAT
O-RING
1шт.
19
NSS
NOT SOLD SEPARAT
RING Backup
1шт.
Выбрано товаров: 28
