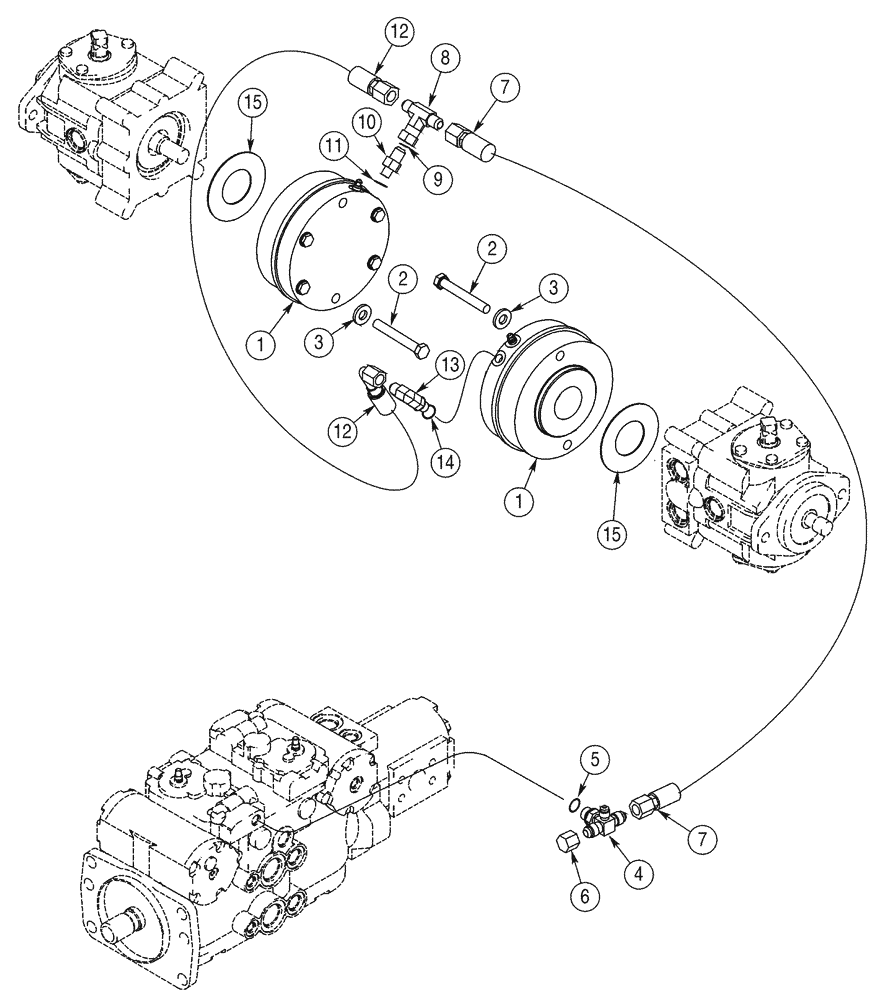

Запчасти Case 90XT (07-03) - HYDRAULIC CIRCUIT, BRAKE, NORTH AMERICAN MODELS JAF0320050-, EUROPEAN MODELS JAF0274262- (07) - BRAKES

1

320892A1

BRAKE

See Figure 7-1

2шт.

2

827-12090

BOLT,Hex, M12 x 1.75 x 90mm, Cl 10.9

2шт.

3

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13.5 x 28 x 4 mm

2шт.

4

253266A1

TEE

Includes: Ref. 5

1шт.

5

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

6

218-754

CAP,37 Degree, 9/16"-18

1шт.

7

430751A1

HOSE ASSY.

1115 mm (43-29/32 in), Pump To Brake, Left Hand

1шт.

8

218-836

TEE,37 Degree, 9/16"-18 x 9/16"-18, Fem Sw Br

9/16 x 18, Includes: Ref. 8

1шт.

9

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

10

218-5352

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

9/16 fl x 7/16 or, Includes: Ref. 11

1шт.

11

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

12

430750A1

HOSE ASSY.

730 mm (28-3/4 in), Pump To Brake, Right Hand

1шт.

13

218-5278

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

Incl. Ref 14

1шт.

14

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

15

320891A1

GASKET,2.4mm Thk

2шт.

Part of P/N 253266A1

1шт.

Part of P/N 218-5352

1шт.

Part of P/N 218-5278

1шт.
