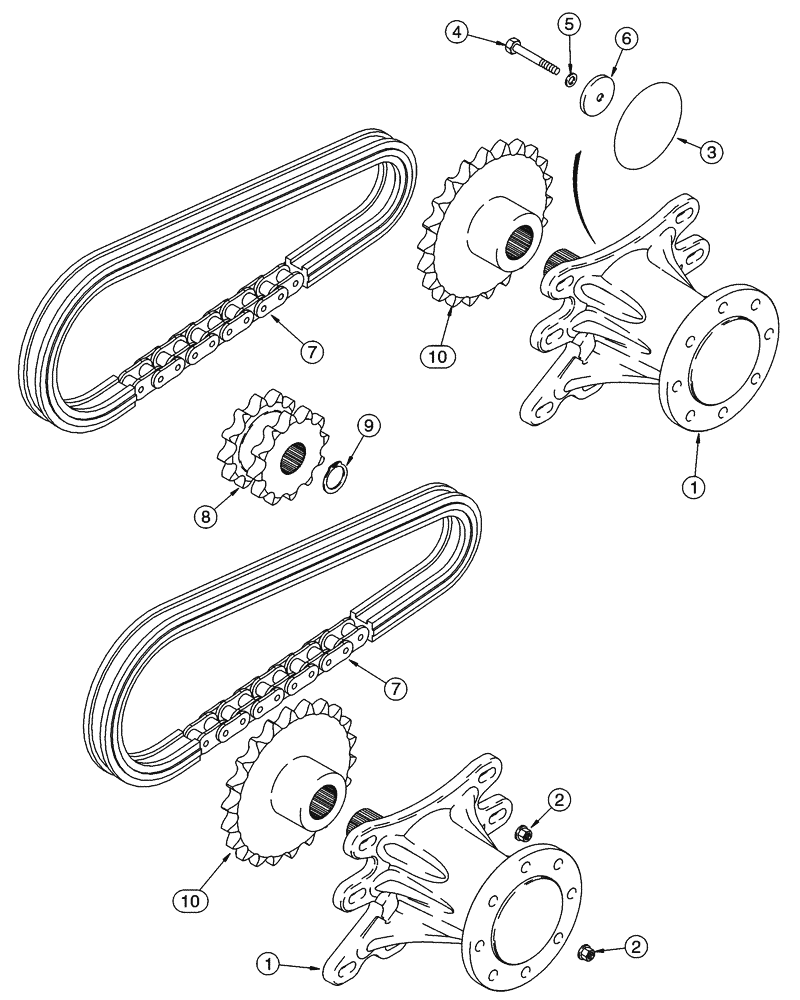

Запчасти Case 90XT (06-27) - DRIVE LINE (06) - POWER TRAIN

1

REF

INSTRUCTION

AXLE ASSY., See Figure 6-28

4шт.

2

829-2416

FLANGE NUT,M16 x 2, Flg, Cl 10

64шт.

3

238-5443

O-RING,0.275" Thk x 7.5" ID, -443, Cl 5, 75 Duro

4шт.

4

826-14140

BOLT,Hex, M14 x 2 x 140mm, Cl 10.9

JAF0298847, Use Loctite No. 243 Hex, M14 x 140, 10.9

4шт.

4

827-16100

BOLT,Hex, M16 x 2 x 100mm, Cl 10.9

JAF0298848 -

4шт.

5

896-11014

WASHER,15.5mm ID x 28mm OD x 3mm Thk

15.5 x 28 x 3 mm, - JAF0298847

4шт.

5

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

JAF0298848 -, If used

4шт.

6

245993A1

WASHER

- JAF0298847

4шт.

6

345180A1

WASHER

JAF0298848 -, If Used

4шт.

6

429233A1

WASHER,16.67mm ID x 70mm OD x 12.7mm Thk

If Used

4шт.

7

199038A1

CHAIN (CE)

120/48P

4шт.

8

199036A2

DRIVE SPROCKET

2шт.

9

100-11212

SNAP RING,#212, Ext

2шт.

10

199037A2

SPROCKET ASSY.

22T, Replaces: 199037A1

4шт.
