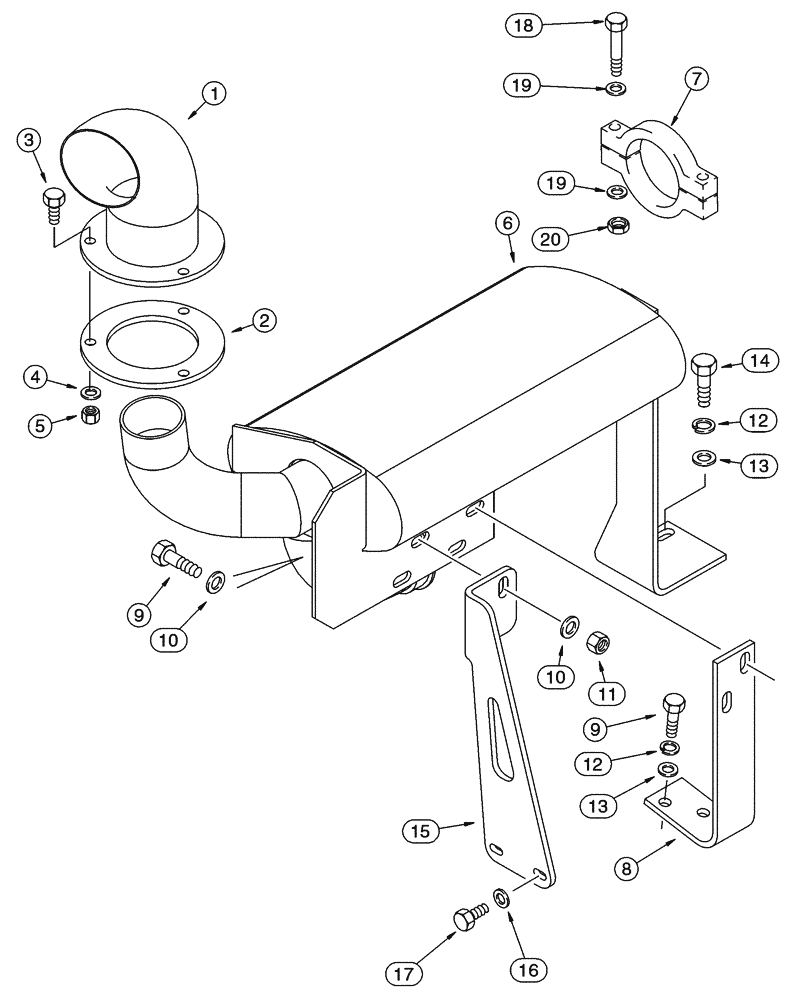

Запчасти Case 90XT (02-03) - EXHAUST SYSTEM NORTH AMERICA, - JAF0245224 (02) - ENGINE

1

193161A2

OUTLET

1шт.

2

247026A1

LARGE PLATE

PLATE, LARGE

1шт.

3

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

3шт.

5

832-41308

NUT,M8 x 1.25, Cl 10

3шт.

6

239510A3

MUFFLER

Turbo Exhaust

1шт.

7

293872A1

CLAMP

2 Piece

1шт.

8

226048A4

SUPPORT

1шт.

9

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

6шт.

11

832-41310

NUT,M10 x 1.5, Cl 10

4шт.

12

892-11010

LOCK WASHER,M10

4шт.

14

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

15

252992A2

SUPPORT

1шт.

16

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

9 x 21 x 2.5 mm

2шт.

17

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

18

814-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8

2шт.

20

832-41310

NUT,M10 x 1.5, Cl 10

2шт.

10

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

8шт.

13

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

19

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

4

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

3шт.
