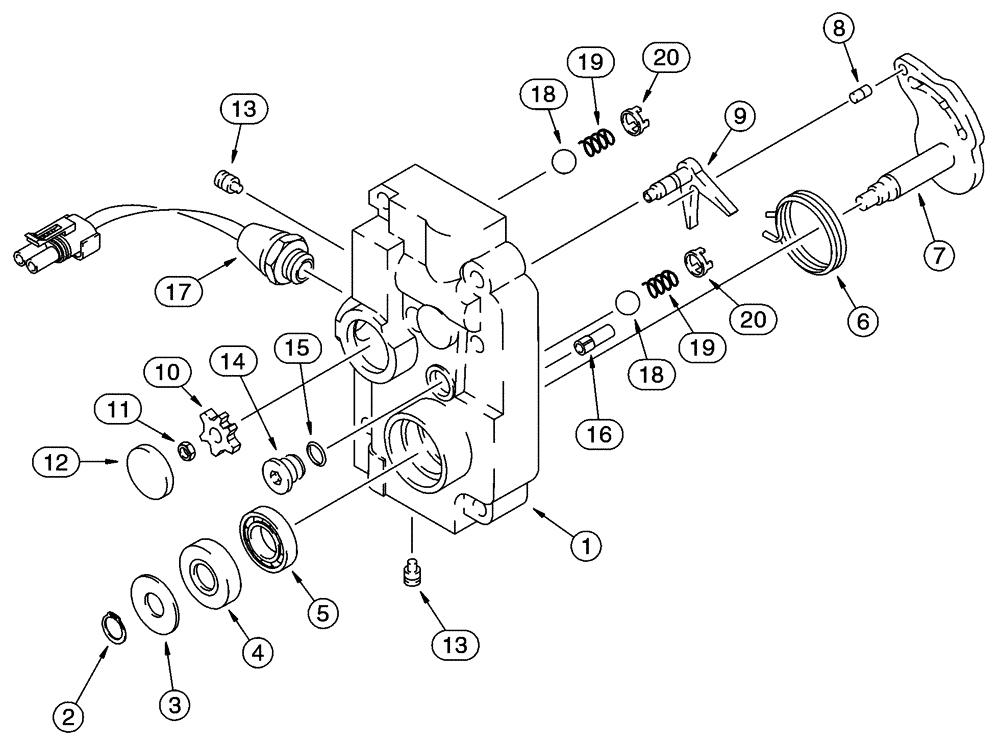

Запчасти Case 90XT (06-21) - CONTROL BLOCK REAR, REAR PUMP (06) - POWER TRAIN

259489A1

CONTROL

Consists Of: 1 - 20, No Longer Available, Order 320274A1

1шт.

1

NSS

NOT SOLD SEPARAT

BODY

1шт.

2

100-1143

SNAP RING,#43, Ext

1шт.

3

300970A1

WASHER

1шт.

4

300968A1

SEAL,12mm ID x 32mm OD x 7mm Thk

1шт.

5

300967A1

BEARING, BALL

1шт.

6

NSS

NOT SOLD SEPARAT

SPRING, Order Kit 334436A1

1шт.

7

NSS

NOT SOLD SEPARAT

LEVER Control

1шт.

8

NSS

NOT SOLD SEPARAT

PIN

1шт.

9

NSS

NOT SOLD SEPARAT

YOKE

1шт.

10

300954A1

CAM

1шт.

11

300958A1

JAM NUT

1шт.

12

300959A1

COVER

1шт.

13

NSS

NOT SOLD SEPARAT

PLUG

1шт.

14

278548

PLUG,Hex, 7/16"-20 ORB

Incl Ref 15

1шт.

15

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

16

300953A1

PIN

1шт.

17

300960A1

SWITCH

Backup Alarm

1шт.

18

211-1312

BALL,3/8" Dia

3/8 in; gr 200

2шт.

19

300963A1

SPRING

2шт.

20

300964A1

RETAINER

2шт.

320274A1

SET OF PARTS

Component Parts Not Serviced Separately, Component Of 320270A2, See Figure 6-15, No Longer Used, Order 436131A1

1шт.

436131A1

KIT

Incl. 436129A1, 436132A1, Not Illustrated Separately; Component Of 433903A1, See Figure 6-15

1шт.

436129A1

RING, SNAP

RING SNAP

1шт.

436132A1

SWITCH

Backup Alarm

1шт.
