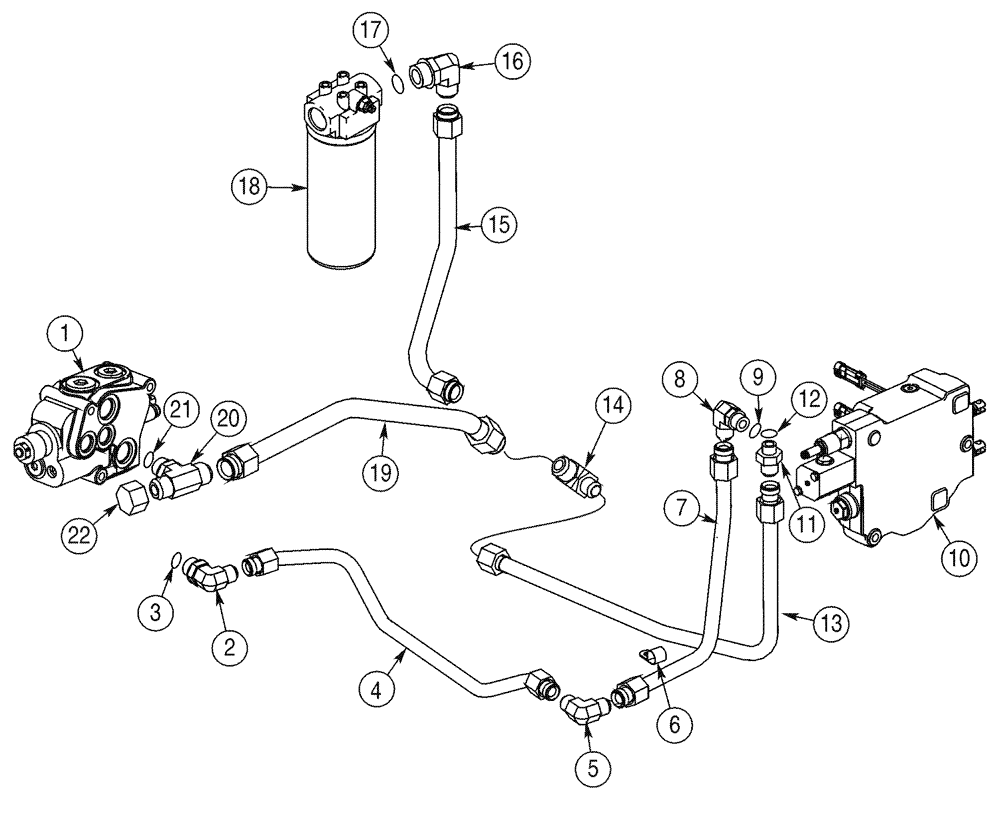

Запчасти Case 90XT (06-07) - HYDROSTATICS AUXILIARY VALVE PLUMBING, N. AMERICAN MODELS JAF0320050-, EUROPEAN MODELS JAF0274262- (06) - POWER TRAIN

1

417369A1

VALVE

1 Spool, Auxiliary, See Figure 8-22

1шт.

2

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. Ref. 3

1шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

Part of P/N 218-5108

1шт.

4

419091A1

TUBE

Auxiliary Valve Supply

1шт.

5

218-476

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC

1-1/16 fl x fl

1шт.

6

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

1шт.

7

433065A1

TUBE

Loader Valve Power Beyond Port

1шт.

8

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

1-1/16 fl x 7/8 Or, Includes 9

1шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

Part of P/N 218-5123

1шт.

10

REF

INSTRUCTION

VALVE Control, See Figure 8-15, 8-16, 8-17, 8-19

1шт.

11

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

Includes: Ref. 12

1шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

Part of P/N 218-5065

1шт.

13

433063A1

TUBE

Loader Valve Outlet

1шт.

14

218-590

TEE,37º, 1 5/16"-12 x 1 1/16"-12, Run

1шт.

15

427041A2

TUBE

Return Filter Inlet

1шт.

16

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. Ref. 17

1шт.

17

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

Part of P/N 218-5110

1шт.

18

222756A2

FILTER ASSY

See Figure 6-13

1шт.

19

427036A1

TUBE

Auxiliary Valve Outlet

1шт.

20

218-5512

TEE,1 5/16"-12, 37 Degree x1 5/16"-12 x 1 1/16"-12, O-Ring Br

Includes: Ref. 21

1шт.

21

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

Part of P/N 218-5512

1шт.

22

218-758

CAP,37 Degree, 1 5/16"-12

1-5/16

1шт.
