Запчасти Case 85XT (08-09B) - VALVE ASSY, CONTROL - SPOOLS AND DETENTS, SELF-LEVELING, DUAL (08) - HYDRAULICS

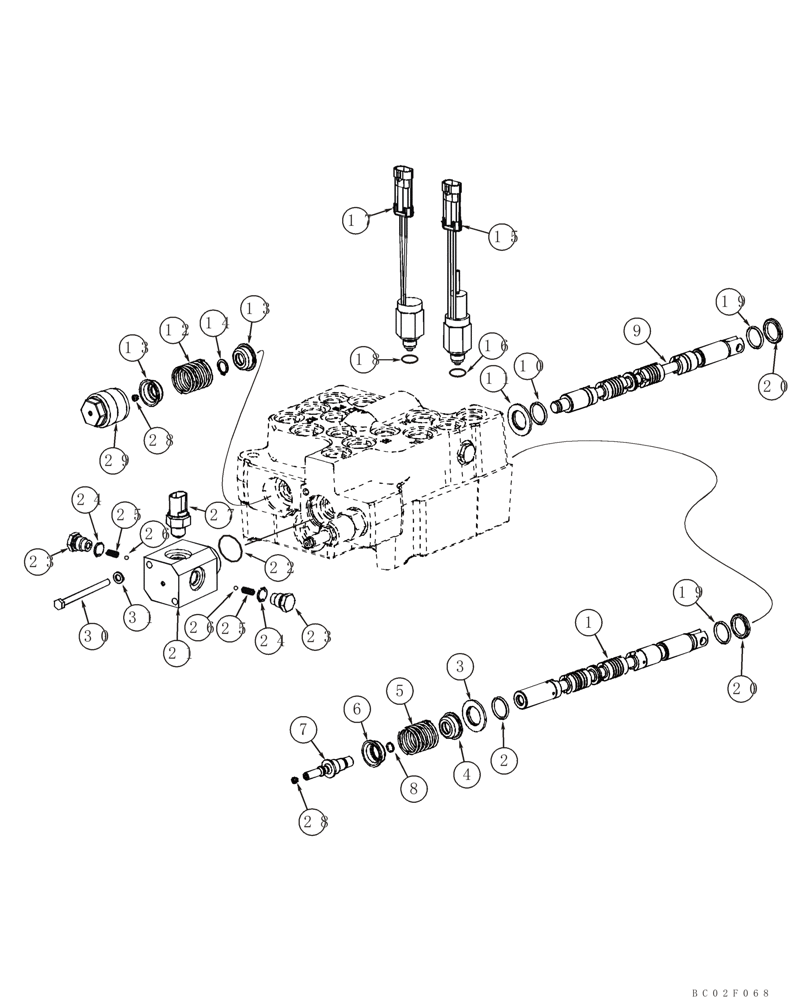

Схема запчастей Case 85XT - (08-09B) - VALVE ASSY, CONTROL - SPOOLS AND DETENTS, SELF-LEVELING, DUAL (08) - HYDRAULICS
16
bc02f068
18
23
8
5
20
7
2
28
4
24
1
11
9
26
12
30
26
14
13
24
15
17
23
29
25
3
10
31
19
20
21
22
25
28
27
19
6
13

Артикул

Название

Примечание

Количество

*

413372A2

VALVE

Control; Bi-Level; Two Spool; Incl. 1 - 31; Incl. 08-09A; No Longer Available; Order 413370A3

1шт.

*

413372A3

VALVE

Control; Bi-Level; Two Spool; Incl. 1 - 31; Incl. 08-09A

1шт.

*

87431792

VALVE

Control; Bi-Level; Two Spool; Incl. 1 - 31; Incl. 08-09A, 75XT

1шт.

*

87431793

VALVE

Control; Bi-Level; Two Spool; Incl. 1 - 31; Incl. 08-09A, 85XT

1шт.

*

87431794

VALVE

Control; Bi-Level; Two Spool; Incl. 1 - 31; Incl. 08-09A, 95XT

1шт.

*

436749A1

SPOOL

Assy; Lift, With Manual Detent; Incl. 1 - 8; Replaces 388170A3

1шт.

*

87427902

SPOOL

Assy; Lift, With Manual Detent; Incl. 1 - 8; Used With 87431792

1шт.

1

NSS

NOT SOLD SEPARAT

Spool; Loader Lift

1шт.

2

1994608C1

O-RING,0.737" ID x 0.943" OD x 0.103"

1шт.

3

G102711

RETAINER COLLAR,19.3 mm ID x 32.97 mm OD

1шт.

4

375708A1

SPRING WASHER

1шт.

5

380571A1

TENSION SPRING

1шт.

6

375707A1

RETAINER

1шт.

383471A1

Manual Detent; Not Serviced As An Assembly; Order Components; Incl. 7 - 8

1шт.

7

383472A1

DETENT

Use Loctite

1шт.

345-601

LOCTITE

No. 203; 1 ml

1шт.

8

237-6003

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

1шт.

388173A3

SPOOL

Loader Bucket; Auxiliary; Incl. 9 - 14; No Longer Available; Order 388173A4

1шт.

388173A4

SPOOL

Loader Bucket; Auxiliary; Incl. 9 -14

1шт.

87427904

SPOOL

Loader Bucket; Auxiliary; Incl. 9 -14; Used With 87431792

1шт.

9

NSS

NOT SOLD SEPARAT

Spool

1шт.

10

1994608C1

O-RING,0.737" ID x 0.943" OD x 0.103"

1шт.

11

G102711

RETAINER COLLAR,19.3 mm ID x 32.97 mm OD

1шт.

12

380571A1

TENSION SPRING

1шт.

12

1994596C1

SPRING

Used With 87431792

1шт.

13

375708A1

SPRING WASHER

2шт.

14

100-1647

SNAP RING,#47, Ext

1шт.

15

411874A2

SOLENOID

Assy; Spool Lock; Incl. 16

1шт.

15

87429888

SOLENOID VALVE

Assy; Spool Lock; Incl. 16; Used With 87431792

1шт.

16

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

16

237-8006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 8, 90 Duro

Used w/ 87431792

1шт.

17

411875A2

SOLENOID

Assy; Spool Lock; Incl. 18

1шт.

17

87429889

SOLENOID VALVE

Assy; Spool Lock; Incl. 18; Used With 87431792

1шт.

18

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

18

237-8006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 8, 90 Duro

Used w/ 87431792

1шт.

19

1994608C1

O-RING,0.737" ID x 0.943" OD x 0.103"

2шт.

20

65457C1

SEAL,19.04mm ID x 25.5mm OD x 3.17mm Thk

Oil

2шт.

21

417360A1

BLOCK

1шт.

22

238-5027

O-RING,0.07" Thk x 1.301" ID, -27, Cl 5, 75 Duro

1шт.

23

409916A1

PLUG

Assy; Incl. 24

2шт.

24

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

25

399853A1

TENSION SPRING

2шт.

26

211-1007

BALL,7/32" Dia

Gr 24, CRS

2шт.

27

393843A1

SOLENOID SWITCH

1шт.

28

G107780

VALVE, CHECK

1шт.

29

375714A2

CAP

Centering Spring; Use Loctite

1шт.

B17423

LOCTITE

Loctite, No. 271; 50 ml

1шт.

30

814-6080

BOLT,Hex, M6 x 1 x 80mm, Cl 8.8

2шт.

31

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

Выбрано товаров: 49
