Запчасти Case 85XT (08-09A) - VALVE ASSY, CONTROL - SELF-LEVELING, DUAL (08) - HYDRAULICS

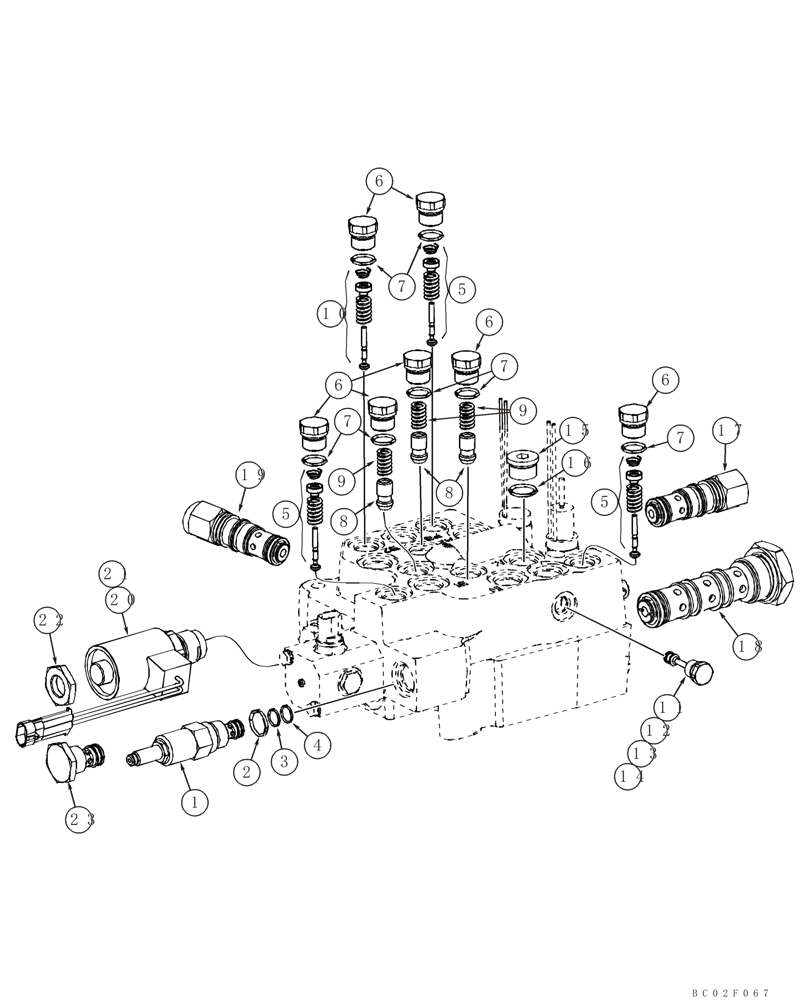

Схема запчастей Case 85XT - (08-09A) - VALVE ASSY, CONTROL - SELF-LEVELING, DUAL (08) - HYDRAULICS
21
17
6
11
22
9
13
3
23
7
5
7
6
16
1
14
6
12
9
7
20
2
18
bc02f067
10
5
5
8
6
7
19
15
4
8

Артикул

Название

Примечание

Количество

*

413370A2

VALVE

Control; Bi-Level; Two Spool; Incl. 1 - 24; Incl. 08-09B; No Longer Available; Order 413370A3

1шт.

*

413370A3

VALVE

Control; Bi-Level; Two Spool; Incl. 1 - 24; Incl. 08-09B

1шт.

*

87431792

VALVE

Control; Bi-Level; Two Spool; Incl. 1 - 24; Incl. 08-09B, 75XT

1шт.

*

87431793

VALVE

Control; Bi-Level; Two Spool; Incl. 1 - 24; Incl. 08-09B, 85XT

1шт.

*

87431794

VALVE

Control; Bi-Level; Two Spool; Incl. 1 - 24; Incl. 08-09B, 95XT

1шт.

*

129842A2

VALVE, PRESSURE RELI

EF Incl. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

Body

1шт.

G110098

KIT

Seal; Incl. 2 - 4

1шт.

2

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

3

G107870

BACK-UP RING,Square, 1.32mm Thk x 12.73mm ID

Backup

1шт.

4

238-8014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 8, 90 Duro

1шт.

5

383088A2

VALVE, PRESSURE RELI

EF Component Parts Not Serviced Separately; Quantity = 413370A2 (2); 413370A3 (3)

2-3шт.

409025A1

PLUG,Hex, 3/4" - 16 ORB

Incl. 6, 7

7шт.

6

NSS

NOT SOLD SEPARAT

Body

1шт.

7

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

8

392956A1

VALVE POPPET

3шт.

9

G34458

SPRING,Compression, 5.08mm OD x 27.56mm L

3шт.

10

383121A2

VALVE, PRESSURE RELI

EF Components Parts Not Serviced Separately; Quantity = 413370A2 (2); 413370A3 (1)

1-2шт.

409920A1

PLUG

1шт.

11

NSS

NOT SOLD SEPARAT

Body; Incl. 11 - 14

1шт.

13

238-5010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

1шт.

14

G108725

BACK-UP RING

1шт.

15

86625138

PLUG,7/18" - 14

Includes 16

1шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

17

419368A1

CARTRIDGE

Counterbalance; Incl. 396978A1; No Longer Available; Order 446619A1

1шт.

17

446619A1

VALVE

Counterbalance; Incl. 396978A1

1шт.

18

397967A1

CARTRIDGE

Flow Control; Incl. 396977A1; No Longer Available; Order 397967A2

1шт.

396977A1

SEAL KIT

1шт.

18

397967A2

CARTRIDGE

Flow Control; Incl.443532A1

1шт.

443532A1

SEAL KIT

1шт.

19

377573A1

CARTRIDGE

Incl. 396978A1; No Longer Used; Order 440571A1

1шт.

19

440571A1

CARTRIDGE

Counterbalance; Incl. 396978A1

1шт.

396978A1

SEAL KIT

Package

1шт.

417292A1

VALVE

Solenoid; Incl. 20, 22; Incl. 396976A1; Also Includes 377575A1 Coil, Solenoid; No Longer Available; Order 417292A2

1шт.

417292A2

VALVE

Solenoid; Incl. 21, 22; Incl. 396976A1; Also Includes 377575A1 Coil, Solenoid

1шт.

20

417293A1

CARTRIDGE

No Longer Available; Order 417293A2

1шт.

377575A1

COIL

1шт.

21

417293A2

CARTRIDGE

1шт.

22

396975A1

NUT

1шт.

396976A1

SEAL KIT

Package

1шт.

23

440489A1

CARTRIDGE

Valve Check; Incl. 396974A1

1шт.

396974A1

SEAL KIT

Package

1шт.

24

440490A1

PISTON

Assy; Incl. 440491A1

1шт.

440491A1

SEAL KIT

Package

1шт.

12

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Выбрано товаров: 45
