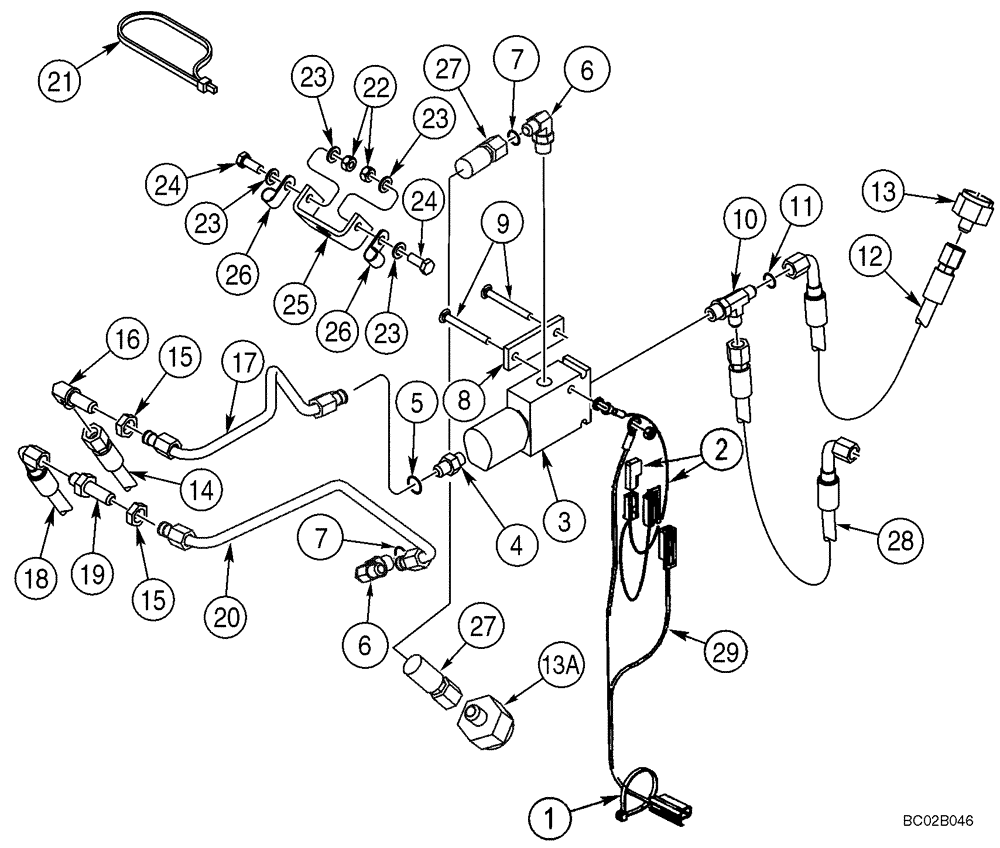

Запчасти Case 85XT (08-05) - HYDRAULICS - COUPLER SYSTEM (Dec 2 2009 3:49PM) (08) - HYDRAULICS

REF

INSTRUCTION

GEAR PUMP TO HOSE MOUNTING BRACKET

1шт.

1

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

1шт.

2

394910A1

HARNESS

Flyback Diode Jumper

1шт.

3

187505C91

VALVE

See Figure 08-13

1шт.

4

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 5

2шт.

6

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

9/16 fl x adj Or; Incl. 7

1шт.

8

277781A1

LARGE PLATE

PLATE, LARGE

1шт.

9

811-6060

CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 60mm, Cl 8.8

6 x 60 mm

2шт.

10

376352A1

TEE

.952 mm (3/8 in); Incl. 13

1шт.

12

430304A1

HOSE ASSY.

1340 mm (52-3/4 in)

1шт.

13

218-766

REDUCER,37 Degree, 1 1/16"-12, Fem x 9/16"-18 Male

3/4 x 3/8

1шт.

13a

218-766

REDUCER,37 Degree, 1 1/16"-12, Fem x 9/16"-18 Male

For Attaching Parts, See Figure 06-01, Ref 1

1шт.

14

399942A2

HOSE ASSY.

1700 mm (66-7/8 in); For Attaching Parts, See Figure 08-06, Ref 22

1шт.

15

218-1254

LOCK NUT,Blkhd, 9/16"-18

9/16 NF

2шт.

16

218-693

ELBOW,90 Degree Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

1шт.

17

399937A2

TUBE

Coupler Valve

1шт.

18

399943A2

HOSE ASSY.

1780 mm (70 in); For Attaching Parts, See Figure 08-06, Ref 21

1шт.

19

218-673

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

9/16 fl x blkhd fl

1шт.

20

419783A1

TUBE

Coupler Valve

1шт.

21

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

1шт.

22

832-41408

NUT,M8 x 1.25, Cl 10

M8

2шт.

23

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

24

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

25

276726A1

SUPPORT

1шт.

26

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

2шт.

27

429851A1

HOSE ASSY.

550 mm (21-5/8 in)

1шт.

28

399945A1

HOSE ASSY.

2185 mm (86 in); For Attaching Parts, See Figure 07-01

1шт.

29

259347A1

HARNESS

Hydraulic Coupler; See Figure 04-08

1шт.

5

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

7

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

11

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
