Запчасти Case 85XT (07-02) - HYDRAULIC CIRCUIT, BRAKE (Nov 3 2009 8:28AM) (07) - BRAKES

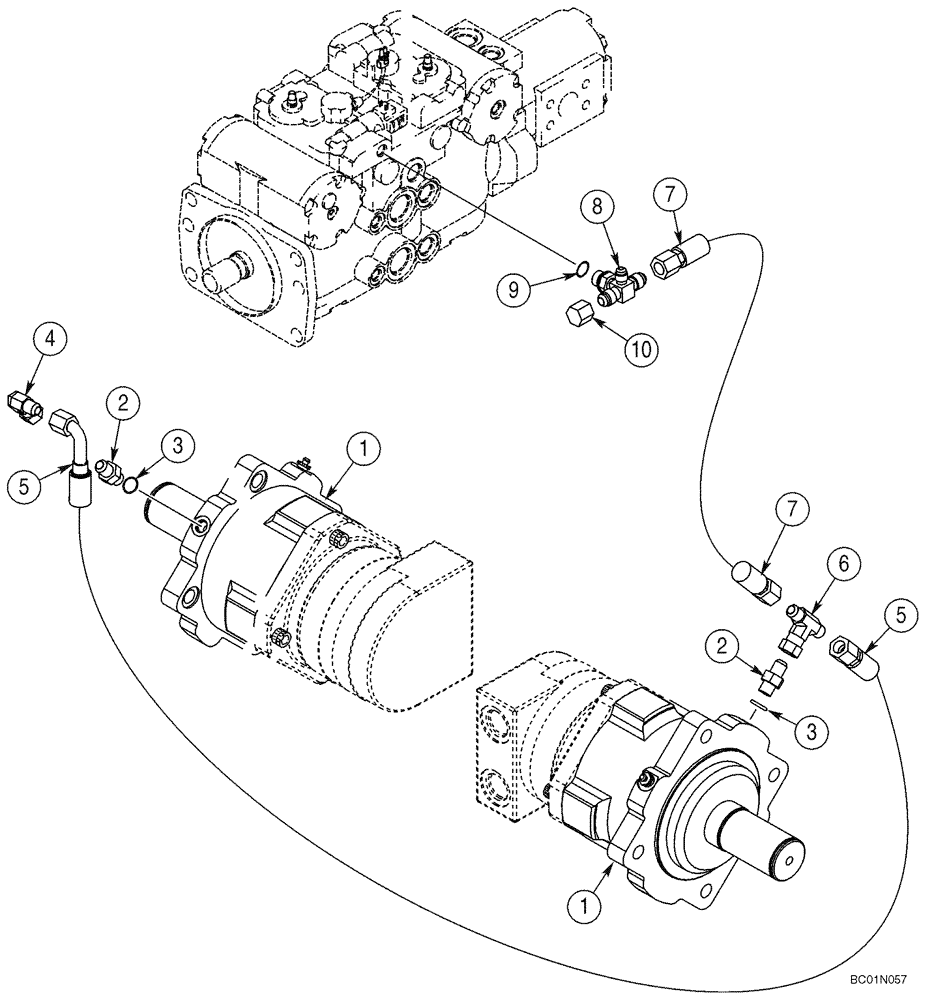

Схема запчастей Case 85XT - (07-02) - HYDRAULIC CIRCUIT, BRAKE (Nov 3 2009 8:28AM) (07) - BRAKES
5
7
10
6
1
2
8
3
2
3
1
9
7
4
5

Артикул

Название

Примечание

Количество

1

359619A2

BRAKE ASSY.

See Figure 07-03

2шт.

2

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 3

1шт.

4

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

1шт.

5

419097A1

HOSE ASSY.

Left Hand

1шт.

6

218-836

TEE,37 Degree, 9/16"-18 x 9/16"-18, Fem Sw Br

9/16 x 18

1шт.

7

419098A2

HOSE ASSY.

825 mm (32-1/2 in); Right Hand; Replaces 419098A1

1шт.

8

253266A1

TEE

Incl. 9; See Figure 04-07, Ref 9

1шт.

10

218-754

CAP,37 Degree, 9/16"-18

1шт.

3

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

9

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Выбрано товаров: 10
